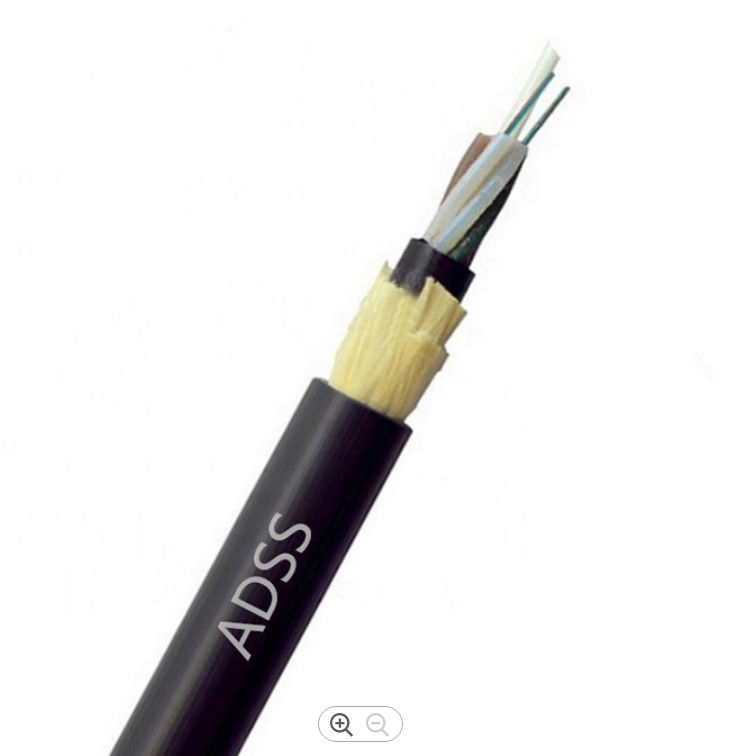

G652D Outdoor Aerial ADSS Fiber Optic Cable 24 Core Armid Yarn

  • G652D Outdoor Aerial ADSS Fiber Optic Cable 24 Core Armid Yarn
  • G652D Outdoor Aerial ADSS Fiber Optic Cable 24 Core Armid Yarn
  • G652D Outdoor Aerial ADSS Fiber Optic Cable 24 Core Armid Yarn
Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number ADSS-24
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum Plus Carton
Delivery Time 7 days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 24 Core ADSS Fiber Optic Cable Fiber Count 24 Core
Fiber Type G652D Cable Sheath PE
Cable Color Black Strength Member Armid Yarn
Cable Use Aerial Loose Tube PBT
High Light

Outdoor ADSS Fiber Optic Cable

,

Aerial ADSS Fiber Optic Cable

,

G652D outdoor aerial fiber optic cable
Leave a Message
Product Description
24 Core Outdoor Self-supporting Aerial Fiber Optic Cable ADSS


Can be installed without shutting offthe power.
Excellent AT performance.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths .
Good performance oftensile strength and temperature.

PRODUCT DESCRIPTION

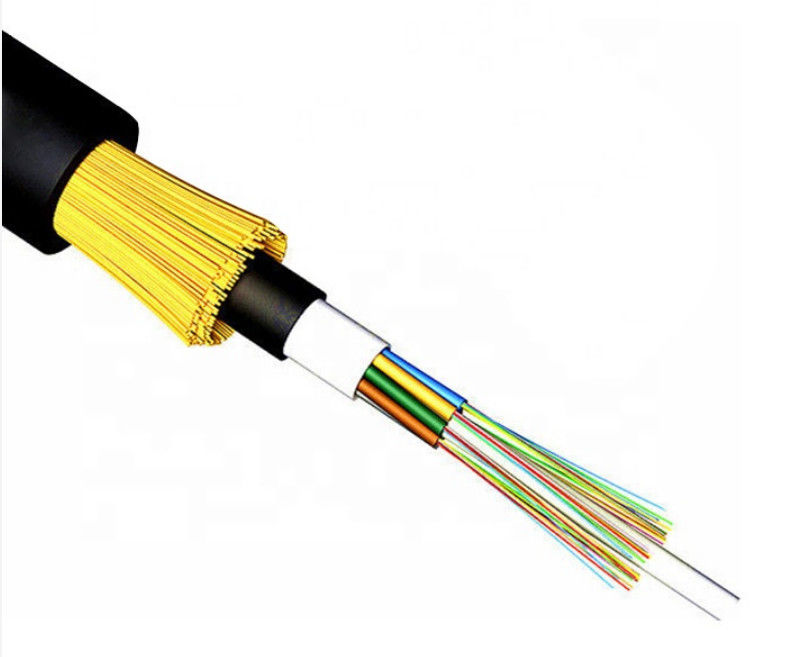

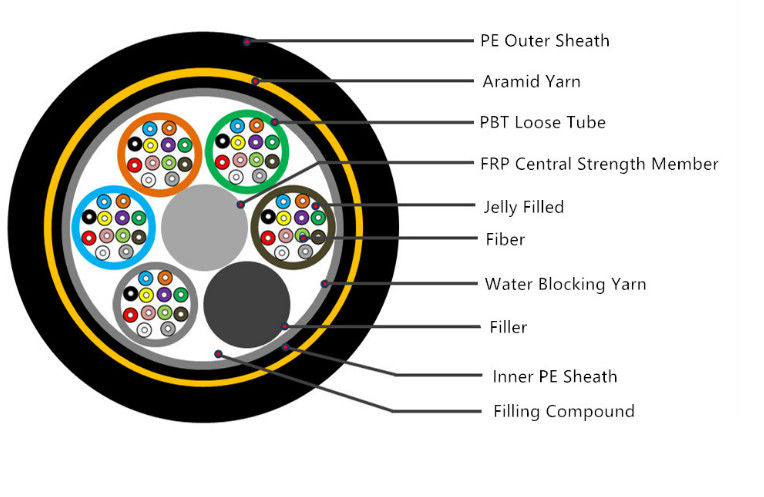

ADSS cable has loose tube stranded. 250μm Fibers are positioned into a loose tube made of high modulus plastics.These loose tubes are filled in the water-resistant oil jelly. The tubes (and fillers) are stranded around the Fiber Reinforced Plastic as the non-metallic central strength member . After the cable core is filled with filling compound. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Single Fiber Reinforced Plastic as the central strength member
7. Loose tube filling compound
8. 100% cable core filling
9. PSP enhancing moisture-proof
10. Water-blocking material

Application
1. Long distance communication and local area network, especially suitable for long span environment,complex area.
2. Erect on the same pole with power line in new and old power line.

Fiber Parameters

CategoryDescriptionSpecifications
G.652D
Optical SpecificationsAttenuation@1310nm≤0.36dB/km
@1550nm≤0.22dB/km
Attenuation discontinuity≤0.05 dB
Attenuation vs. Wavelength@1285~1330nm≤0.05 dB/km
@1525~1575nm≤0.05 dB/km
Zero Dispersion Wavelength1300~1324nm
Zero Dispersion Slope≤0.092ps/(nm2.km)
Dispersion@1310nm≤3.5 ps/nm.km
@1550nm≤18 ps/nm.km
Polarization Mode Dispersion(PMD)≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc)≤1260nm
Effective Group Index of Refraction@1310nm1.4675
@1550nm1.4681
Macro bend loss (30mm radius,100turns) 1625nm≤0.1 dB
Geometric
Specifications		Mode Field Diameter@1310nm9.2±0.6μm
@1550nm10.4±0.8μm
Cladding Diameter125±1μm
Cladding Non-Circularity≤1.0%
Coating Diameter245±7μm
Coating/Cladding Concentricity Error≤8μm
Core/Cladding Concentricity Error≤0.8μm
Mechanical
Specifications		Proof Test level≥1.0%
Fiber Curl Radius≥4.0m
Peak Coating Strip Force1.3~8.9N


FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.


G652D Outdoor Aerial ADSS Fiber Optic Cable 24 Core Armid Yarn 0

G652D Outdoor Aerial ADSS Fiber Optic Cable 24 Core Armid Yarn 1G652D Outdoor Aerial ADSS Fiber Optic Cable 24 Core Armid Yarn 2
