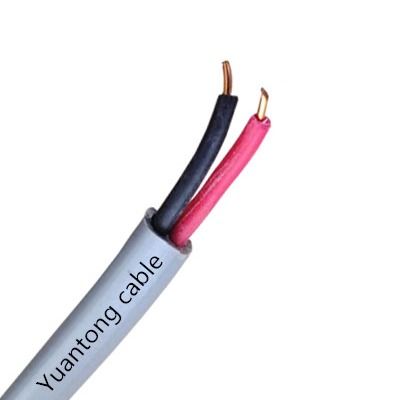

750V Earthing Copper Wire
| Place of Origin | china |
|---|---|
| Brand Name | YUANTONG |
| Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Model Number | BVVB |
| Minimum Order Quantity | 50km |
| Price | usd 0.28/m |
| Packaging Details | rolls in carton box |
| Delivery Time | within 7 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000km per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Bvvb Flat Soft Type Copper Conductor Parallel Wire Twin And Earth Electric Copper Wire | Conductor | Copper Core |
|---|---|---|---|
| Cross Section | 1.5/2.5/4/6/10 | Sheath | PVC |
| Color | Yellow/red/black/blue | Packing | In Roll |
| Length | 100m/roll | Use | 300/300V 300/500V 450/750V |
| High Light | 750V earthing copper wire,BVVB earthing copper wire |
||
Product Description
Bvvb 10mm Shielded Or Unshielded Pvc Sheath Parallel Copper Core Power Cable Electric Copper Wire
Description
The cable has the advantage high mechanical strength,good ambient stress resistance,good electrical properties and anti-chemical corrosion. It applies to electrical power transmission and distribution lines with AC rated Voltage up to 450/750V. The cable is for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.General purpose single core hard without sheathed cable conductor,is fit for AC voltage 450 / 750V and below power plant, household appliances, instruments and telecommunications equipment, cable and wires. With anti-acid-base, oil resistance, moisture, mildew and other characteristics.
Specifications
1.The national certification of qualified manufacturers
2.CE, RoHS, ISO ,SGS Certificate
3.Meet European standards and can be customized according to customer requirements
4.OEM, ODM cooperation
| Copper conductor PVC insulated PVC sheathed flat cable | |||||
| Number and nominal cross-sectional area(mm2) | Insulation thickness (mm) | Sheath thickness (mm) |
Reference overall Diameter (mm) |
Reference weight(kg/km) | Reference current rating in air at 25°C (A) |
| 3×0.75 | 0.6 | 0.9 | 4.06×8.46 | 57.2 | 9 |
| 3×1.0 | 0.6 | 0.9 | 4.22×8.94 | 67.1 | 11 |
| 3×1.5 | 0.7 | 0.9 | 4.66×10.26 | 89.3 | 14 |
| 3×2.5 | 0.8 | 1.0 | 5.46×12.26 | 133.8 | 20 |
| 3×4 | 0.8 | 1.0 | 5.92×13.64 | 182.2 | 26 |
| 3×4(B) | 0.8 | 1.0 | 6.25×14.63 | 192.2 | 26 |
| 3×6 | 0.8 | 1.1 | 6.61×15.31 | 248.8 | 32 |
| 3×6(B) | 0.8 | 1.1 | 7.02×16.54 | 262.9 | 32 |
| 3×10(B) | 1.0 | 1.2 | 8.48×20.48 | 406.9 | 52 |
Cable Structure Dimension
| Item Spec. | Nominal cross section | No./Diameter of conductor (mm) | No./Diameter of Earth core (mm) | Insulation thicknsee (mm) | sheath thicknsee (mm) | Max.outer diameter (mm) | Ref .Weight (km/kg) |
Conductor resistance at 20°C≤(Ω/km) |
| (mm2) | ||||||||
| Flat Cable 2Cores+E ( BVVB ) | 2×1.0+E | 2×1/1.13 | 1/0.85 | 0.6 | 0.9 | 4.5×8.2 | 64.16 | 18.1 |
| 2×1.5+E | 2×1/1.38 | 1/1.13 | 0.7 | 0.9 | 5.1×9.2 | 89.52 | 12.1 | |
| 2×1.5+E | 2x7/0.52 | 7/0.43 | 0.7 | 0.9 | 5.3×9.4 | 91.52 | 12.1 | |
| Flat Cable 2Cores+E ( BVVB ) | 2×2.5+E | 2×1/1.78 | 1/1.38 | 0.8 | 1 | 5.4×10.1 | 128.36 | 7.41 |
| 2×2.5+E | 2×7/0.68 | 7/0.52 | 0.8 | 1 | 5.6×10.3 | 130.36 | 7.41 | |
| Flat Cable 2Cores+E ( BVVB ) | 2×4+E | 2×1/2.25 | 1/1.78 | 0.8 | 1 | 5.9x11.8 | 180.56 | 4.61 |
| 2×4+E | 2×7/0.85 | 7/0.68 | 0.8 | 1 | 6.1x12.1 | 202.66 | 4.61 | |
| Flat Cable 2Cores+E ( BVVB ) | 2×6+E | 2×1/2.76 | 1/2.25 | 0.8 | 1.1 | 6.7×12.8 | 247.18 | 3.08 |
| 2×6+E | 2×7/1.04 | 7/0.85 | 0.8 | 1.1 | 6.9×13.3 | 267.18 | 3.08 | |
| Flat Cable 2Cores+E ( BVVB ) | 2×10+E | 2×7/1.35 | 7/1.04 | 1 | 1.2 | 7.8×14.5 | 435.05 | 1.83 |
Certifiacte
Exhibition home and abroad
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
