GYXTW04 Anti Termite Cable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||12 Core Central Tube Full Filling With The Parallel Steel Wire Steel-PE Outer Jacket Fiber Optic Cable GYXTW||Fiber Count||12 Core|
|Fiber Type||G652D||Cable Sheath||Steel-PE Sheath|
|Cable Color||Black||Strength Member||Metallic Strength Member|
|Cable Use||Aerial, Overhead Laying||Loose Tube||PBT|
GYXTW04 anti termite cable,
12core anti termite cable

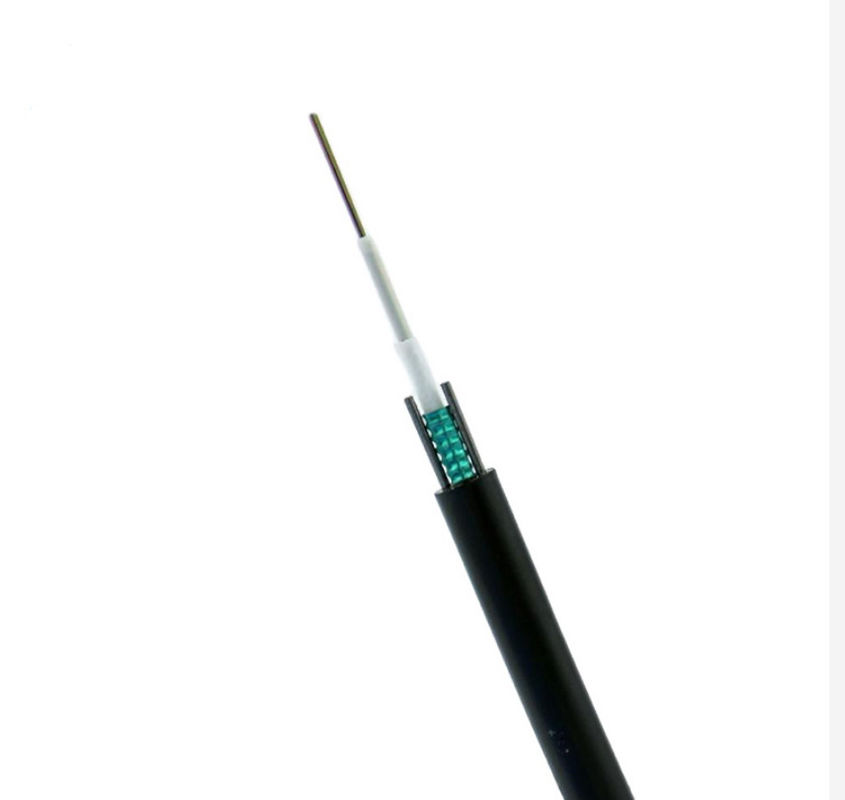

12 Core Anti-Termite Central Tube With The Parallel Steel Wire Steel-PE Outer Jacket Fiber Optic Cable GYXTW04
GYXTW04 single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blockingperformance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound, 100% cable core filling
7. PSP/PAP enhancing moisture-proof
8. Steel wire used as the central strength member
|GYXTW04||Outdoor,Metallic strength member,Central tube,Full filling,With the parallel wire, Steel-PE outer jacket,Anti-termite||Overhead laying&Pipeline laying,rural cable,Anti-termite|
|Tensile Strength (N)||Crush Resistance (N/100mm)||Bned Radius|
|Working Temperature(℃)||Max. attenuation (dB/km)||fibers||OD(mm)||weight kg/km|
|Long term||short term||Long term||short term||Static(D)||Dynamic (D)||Min.TA||Max.TB||1310μm||1550μm|
|600||1500||300||1000||10 D||20 D||-40℃||+60℃||≤0.36||≤0.22||2～24||8.5～10.5||65～95|
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
