Dome Type Port FTTX Accessories FTTH Fiber Optic Joint Enclosure Box

  • Dome Type Port FTTX Accessories FTTH Fiber Optic Joint Enclosure Box
  • Dome Type Port FTTX Accessories FTTH Fiber Optic Joint Enclosure Box
  • Dome Type Port FTTX Accessories FTTH Fiber Optic Joint Enclosure Box
  • Dome Type Port FTTX Accessories FTTH Fiber Optic Joint Enclosure Box
Place of Origin china
Brand Name YUANTONG
Certification ISO,ANATEL,ROSH,TLC，CCC
Model Number GJS-04
Minimum Order Quantity 50
Price usd 5.5
Packaging Details carton box
Delivery Time within 7 working days
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name FTTH Dome Type Port Fiber Optic Splice Closure Cable Joint Enclosure Junction Box FTTX Accessories Type Waterproof Junction Box
Color Black Max. Capacity Of Splice Tray 6PCS
Number Of Inlet/Outlet Ports 2 (Pieces) On Each Side (Total 4 Pieces) Size 420* Φ205

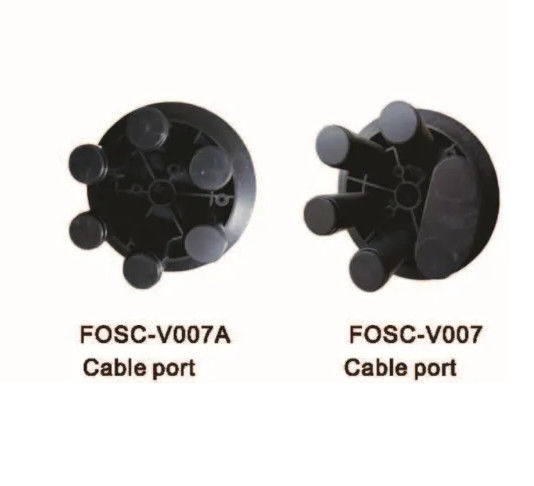

Cable Entry Ports 6 Round Port Or 1 Oval + 4 Round Port Max Capacity 144 Fibers (2 Fibers Per Slot)
Specification 240(Diam)*501.5(H)mm Sealing Structure Heat Shrinkable Sealing
High Light

Dome Port FTTX Accessories

,

FTTH fiber optic joint enclosure box
Leave a Message
Product Description

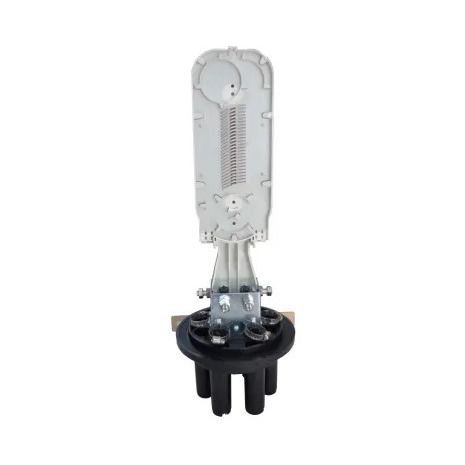

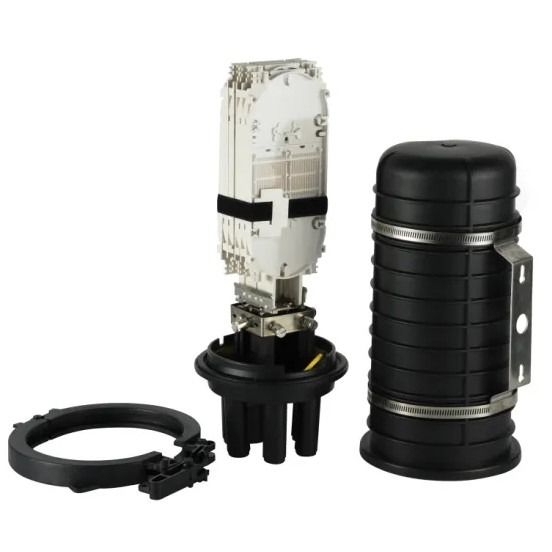

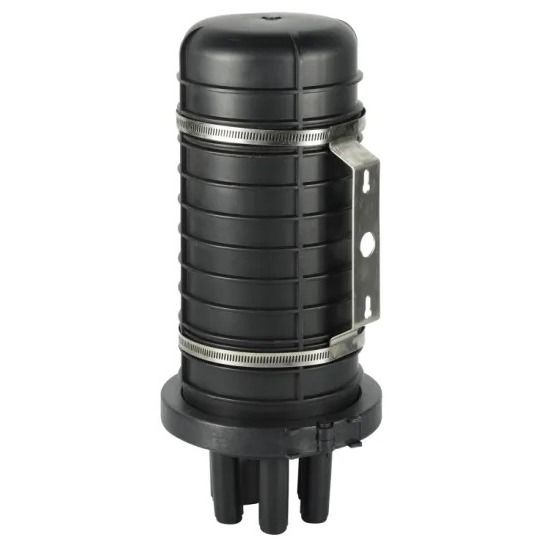

FTTH Dome Type Port Fiber Optic Splice Closure Cable Joint Enclosure Junction Box FTTX Accessories





Terminal Box Outdoor

Model No Size Inputs&Outputs Fiber Capacity
GJS-04 420* Φ205 5 12-144



Description
Vertical (Dome) fiber optic splice closures are made of excellent engineering plastics. Damei supply different ports types, fittings and different fiber optic core numbers for vertical/dome fiber optic splice closures.
Damei's Splice Closure is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.


Features
Suitable for ordinary fiber and ribbon fiber.
Fully kitted with all parts for convenient operation.
Overlap structure in splicing tray for easy installation.
Fiber-bending radium guaranteed more than 40mm.
Easy to install and re-entry with a common can wrench.
Excellent Heat Shrinkable Sealed to protect fiber and splice ensuring durability.
Stand up to severe condition of moisture, vibration and extreme temperatures.


Main Technical Parameter

Item GJS-03
Cable ports 5 Entires
Number of fiber fusion 144 (bunchy)
Capacity of splice tray 12-24 (bunchy)
Dimension (mm) 420×205
Cable diameter(mm) 8~40
Max capacity of fiber 288 (bunchy)
Working temperature -40ºC~65ºC
Insulation resistance >2×104MΩ
Sealing Type Heat-shrinkable Type
Installation Type Pole-Mount
Sealing structure Silicon gum material



Notes: Installation of Pole-Mount is default in Damei, the other can also be customized according to your requirements.


Application
Be suitable for Aerial and Duct.
CATV environment, Telecommunications, Customer premises environments, Carrier Networks and fiber optic networks.



Certifiacte
Dome Type Port FTTX Accessories FTTH Fiber Optic Joint Enclosure Box 0


Exhibition home and abroad
Dome Type Port FTTX Accessories FTTH Fiber Optic Joint Enclosure Box 1


FAQ

1. Are you the real manufacturer?

Yes. We are the real manufacturer with 18 years' history.



2. What is your fiber brand ?

Corning, SEI, YOFC, FiberHome, etc



3. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable



5. Which kind of certification you have ?

ISO9001, SGS, 3C Anatel.



6. What is your delivery time?

Usually within 2-3 working days



7. What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



8. What is your payment way?

T/T, L/C, Western Union and Paypal.



9. Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.



10. Can you supply your cable test value form?

-Yes. After finishing production , we can supply if you ask.



11. Do your factory inspect every roll of cables?

-Yes. we factory do 100% inspection per order.
