GJFJV 24 Core Indoor Fiber Optic Cable Non Armoured Aramid Yarn

Place of Origin CHINA
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GJFJV-24 Core
Minimum Order Quantity 20km
Price usd 0.15/m
Packaging Details wooden drum plus carton
Delivery Time 7 days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name GJFJV 24 Core Multicore Non Armoured Aramid Yarn Indoor Distribution Fiber Optic Cable Fiber Count 24 Core
Fiber Type G652d/G657A1/G657A2 Cable Sheath LSZH/TPU
Cable Color Yellow/Blue Strength Member Aramid Yarn
Cable Use Indoor Use Cable Type Round
High Light

GJFJV Indoor Fiber Optic Cable

,

24Core Indoor Fiber Optic Cable

,

Indoor gjfjv optical fiber cable

Leave a Message
Product Description

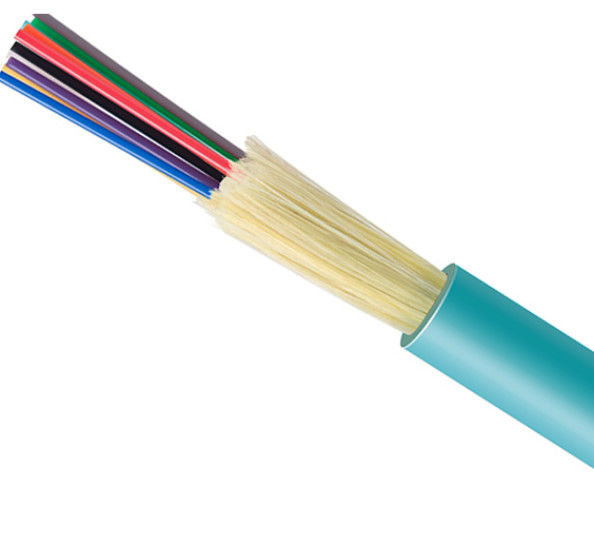

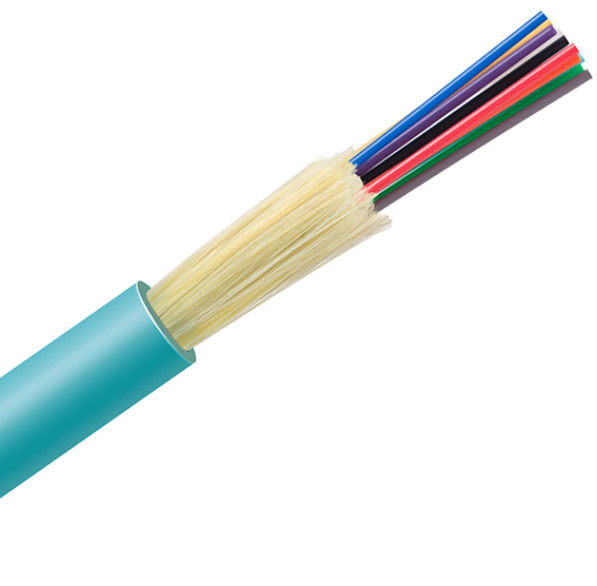

GJFJV 24 Core Multicore Non Armoured Aramid Yarn Indoor Distribution Fiber Optic Cable



Description:

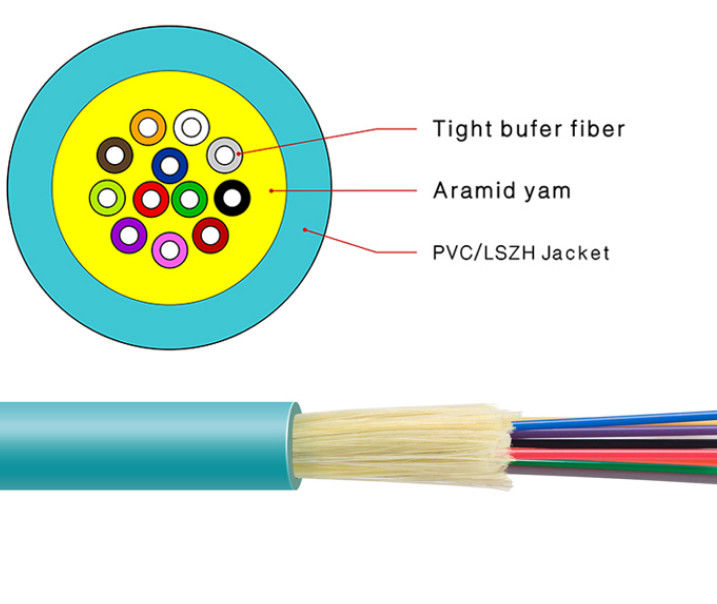

TheSimplex cable uses single 900um or 600um tight buffered fibre as optical transmission medium, covered with aramid yarn as strength member, then extruded with a PVC sheath. Other sheath materials, like LSZH and TPU, are available on request.



Application:

1. Fibre jumper or pigtail.

2. Indoor riser level and plenum level cabling.

3. Interconnenctions between instruments and communication equipments.




Technical Parameters:



Fiber Count



Cable
Dimension (mm)



Cable Weight
(unit: g/m)



Tensile Strength (N)



Crush Strength (N/100mm)



Long Term



Short Term



Long Term



Short Term



4 5.0 19 130 440 200 1000
6 5.2 23 130 440 200 1000
8 5.5 26 130 440 200 1000
12 6.5 36.5 200 660 200 1000
16 7.5 44.5 200 660 200 1000
24 8.2 54.5 200 660 200 1000
36 9.0 72 200 660 200 1000
48 10.5 90 200 660 200 1000
Note All values above are for reference only, are subject to change without notice. The minimum bend radius (static) is 5D when G657 fiber is used.


Optical Characteristics:

Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C) B1.1:Conventional fiber
G.652D B2: Zero dispersion shifted
G.655 B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3) B4: Main technical data for positive
dispersion shifted single-mode fiber





Company Indroduce:

Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.

Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, power optical fiber cable, submarine optical cable and special optical cable etc.

Yuantong has more than 200 staffs, of which 20% are senior engineers ,70% are mid-level empolyees.

Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmental management, health management and TLC.

 A complete set of Advanced test equipments ensure each of the links from raw materials to perfect products is effectively controlled.

Also we have built a long-term strategic cooperative relationship with a number of domestic and oversea telecom operators. Products sold widely to America, Europe, Middle East, Africa, Southeast Asia, and other continents, annual sales reach$300 million, the production scale is in the forefront of the field.

Our company persist the quality policy "fast, efficient, high-quality" and the quality target

"be first in China, do best in the world", trying to make outstanding contribution for the whole world's communication development .



GJFJV 24 Core Indoor Fiber Optic Cable Non Armoured Aramid Yarn 0GJFJV 24 Core Indoor Fiber Optic Cable Non Armoured Aramid Yarn 1



Certificate:

GJFJV 24 Core Indoor Fiber Optic Cable Non Armoured Aramid Yarn 2



Exhibition home and abroad
GJFJV 24 Core Indoor Fiber Optic Cable Non Armoured Aramid Yarn 3


FAQ

1. Are you the real manufacturer?

Yes. We are the real manufacturer with 18 years' history.



2. What is your fiber brand ?

Corning, SEI, YOFC, FiberHome, etc



3. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable



5. Which kind of certification you have ?

ISO9001, SGS, 3C Anatel.



6. What is your delivery time?

Usually within 2-3 working days



7. What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



8. What is your payment way?

T/T, L/C, Western Union and Paypal.



9. Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.



10. Can you supply your cable test value form?

-Yes. After finishing production , we can supply if you ask.



11. Do your factory inspect every roll of cables?

-Yes. we factory do 100% inspection per order.
