A2 Flat Fiber Optic Indoor FTTH Drop Cable G652D G657a1 1-12 Core

A2 Flat Fiber Optic Indoor FTTH Drop Cable G652D G657a1 1-12 Core

Fiber Optic FTTH Drop Cable

A2 Flat FTTH Drop Cable

G652D Fiber Optic Drop Wire

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Fiber Type:
Fiber Count:
Fiber Brand:
Black LSZH
Strength Member:
Steel Wire
Cable Size:
1.0 Steel Wire
Payment & Shipping Terms
Minimum Order Quantity
usd 35
Packaging Details
wooden drum plus carton box
Delivery Time
within 7 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000km per week
Product Description

G652D G657a1 A2 Flat Optical Cable 1-12 Core Fiber Optic Drop Wire
Product Description

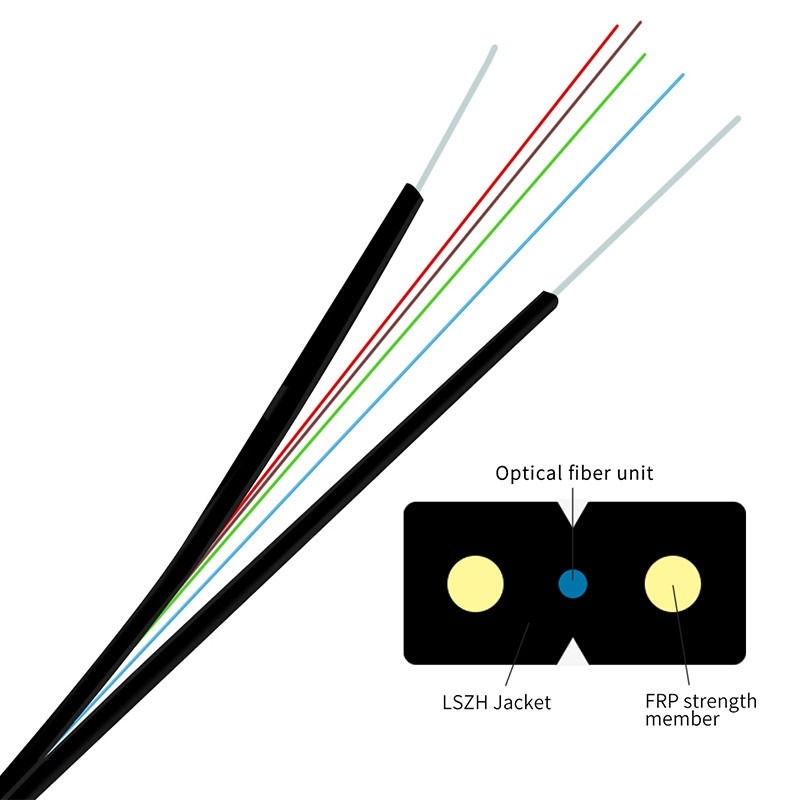

The optical fiber unit is positioned in the center Two parallel steel are placed at the two sides.A steel wires as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.The cable is widely use in FTTH project.
1. special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Two parallel steel strength members ensure good performance of crush resistance to protect the fiber;
3.Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
4. Simple structure, light weight and high practicability;
5. Novel flute design, easily strip and splices implify the installation and maintenance;
6. Low smoke, zero halogen and flame retardant sheath.
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.
structure and technical parameters

A2 Flat Fiber Optic Indoor FTTH Drop Cable G652D G657a1 1-12 Core 0

Fiber count01/02 Fiber04 fiber
Fiber typeG657A1/A2
Messenger1.0/1.1/1.2mm steel/FRP
Strength member2*0.45mm FRP/Steel
Dimension of cable2.0(±0.1)mm/5.0(±0.2)mm2.2(±0.1)mm/5.5(±0.2)mm
Cable weight22kg+1kg
Installation temperature-20/+60°C
Operation and transport temperature-40/+70°C
Min Bending Radius(mm)Long term:15D
Short term:30D
Allowable Tensile Strength(N)Long term:300
 Short term:600
Crush Lord(N/100mm)Long term:1000
 Short term:2200

Fiber model--SM-G657a2


Zero dispersion wavelengthnm1300-1324
Zero dispersion slopePs/(nm²xkm)≤0.092
PMD Maximum individual fiber[ps/√km]≤0.2
PMD Design link valueps/(nm²xkm)≤0.08
Fiber cutoff wavelength λCnm1180≤1330
Cable cutoff wavelength λccnm≤1260
Step(mean of bidirectional measurement)dB≤0.05
Irregularities over fiber length and point discontinuitydB≤0.05
Difference backscatter coefficientdB/km≤0.03
Attenuation uniformitydB/km≤0.01
Cladding diameterμm125.0±0.1
Cladding non-circularity%≤0.7
Coating diameterμm242±7

Packing and Length

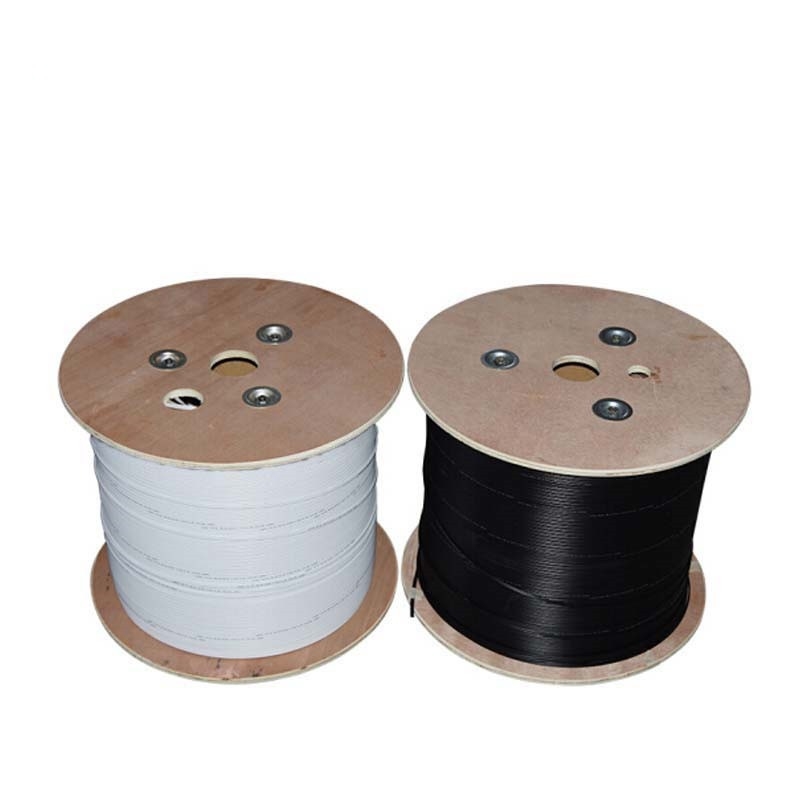

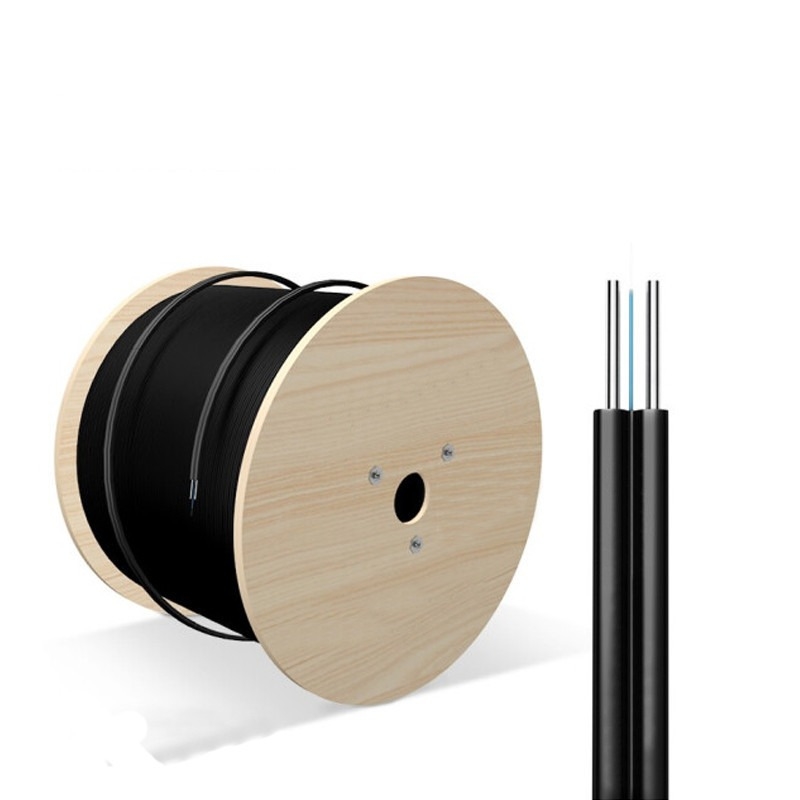

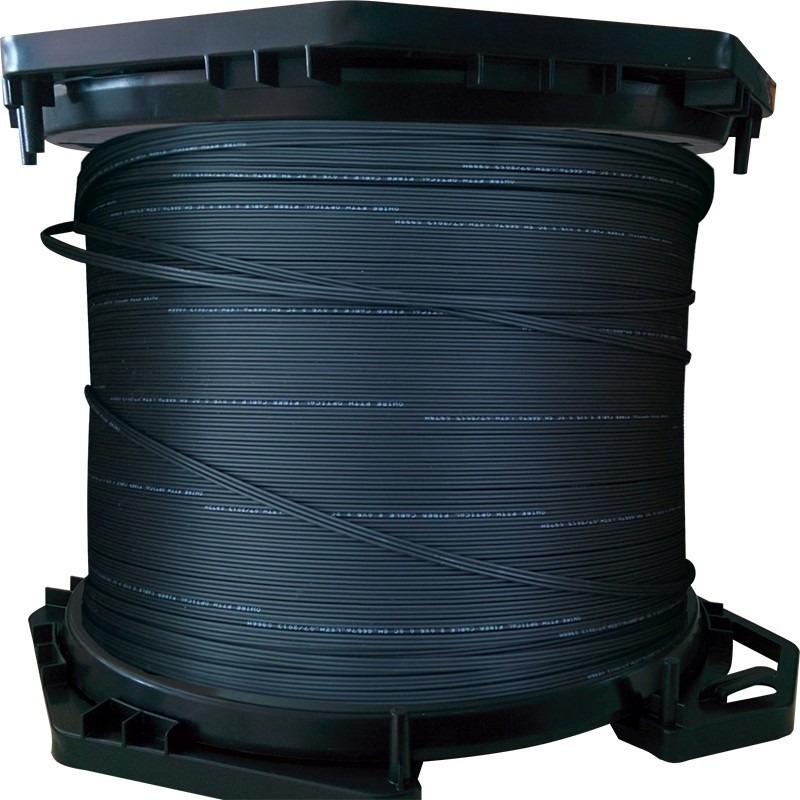

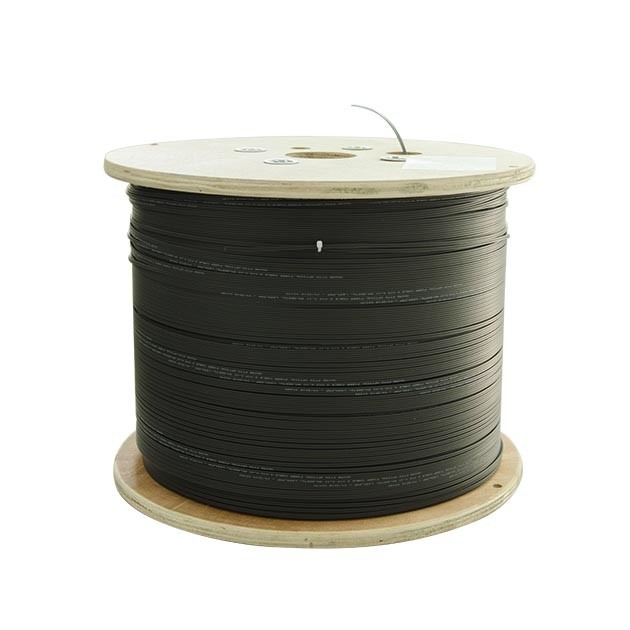

Length :1000m/roll and 2000m/roll; Other length available on request.
Drum: can be customized

1.Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2.What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.
6.What is your delivery time?
Usually within 2-3 working days
7.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10.Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11.Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
