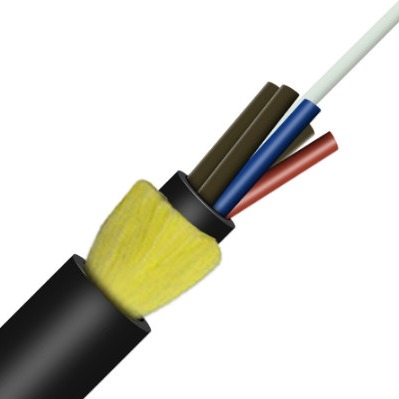

Outdoor Fiber Cable ADSS G652d Single Mode Fiber Optic Cable
| Place of Origin | China |
|---|---|
| Brand Name | YUANTONG |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | ADSS |
| Minimum Order Quantity | 15KM |
| Price | Negotiable |
| Packaging Details | Wooden Drum |
| Delivery Time | 7 days |
| Payment Terms | L/C, T/T, Western Union, D/P |
| Supply Ability | 500km per week |
Product Details
| Model NO | ADSS | Sheath Material | HDPE |
|---|---|---|---|
| Fiber Type | G652D | Core | Multicore |
| Fiber Count | 6-256 | Strength Member | Central FRP |
| HS Code | 85447000 | Brand | OEM |
| Trademark | OEM | Specification | 1CBM |
| High Light | G652d Single Mode Fiber Optic Cable,Outdoor Fiber Cable ADSS,1CBM ADSS Fiber Optic Cable |
||
Product Description
YTTX Outdoor Fiber Cable ADSS G652d Single Mode Fiber Optic Cable
Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
Appicable fieds:
Long-distance teecom,LAN in high -votage area or access to telecom network
Installation: Sef-support aeria
Structure Characters:
Loose tube wifh mon-metalic strengthen member
High flexible amaid yarn
Can work at electrix field≤25KV/min a ling period
Long-distance teecom,LAN in high -votage area or access to telecom network
Installation: Sef-support aeria
Structure Characters:
Loose tube wifh mon-metalic strengthen member
High flexible amaid yarn
Can work at electrix field≤25KV/min a ling period

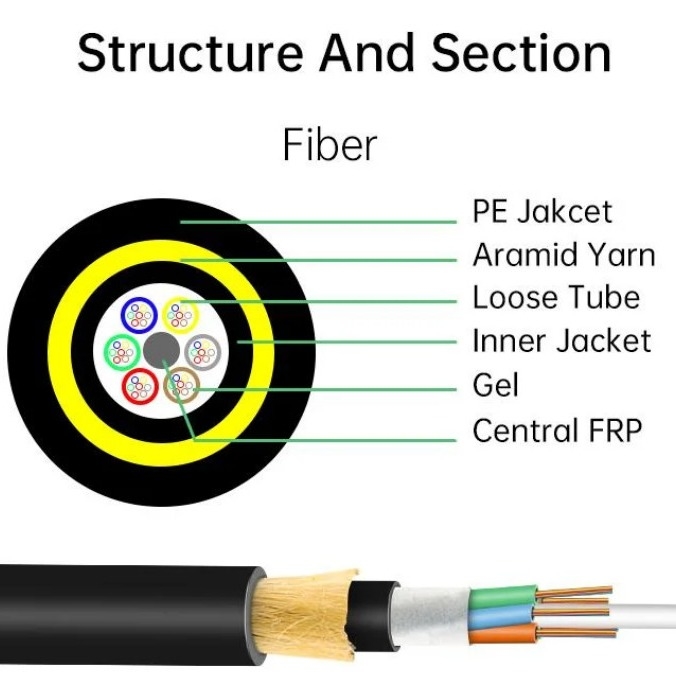

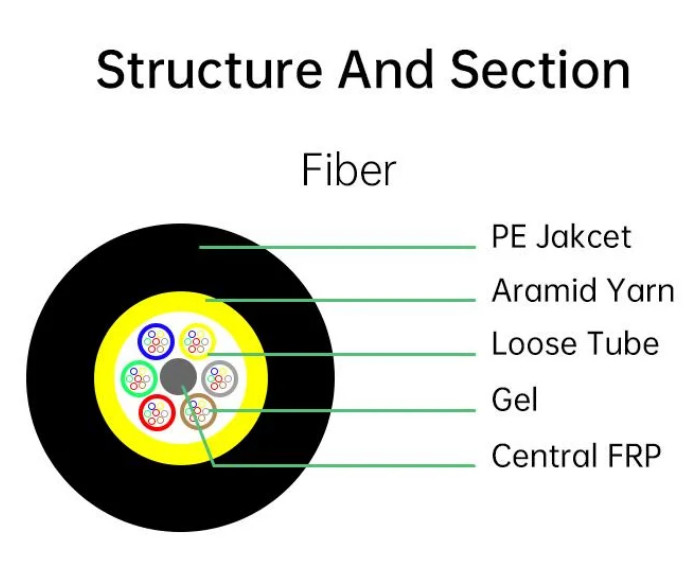

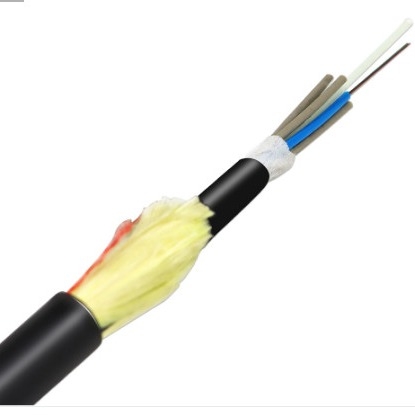

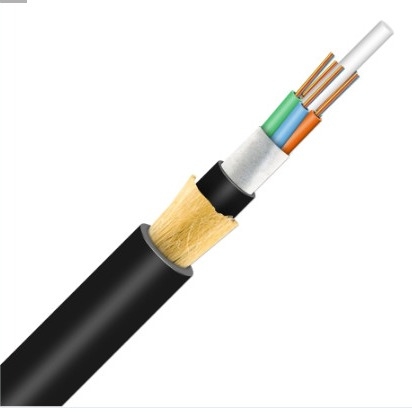

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are
filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a
non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.

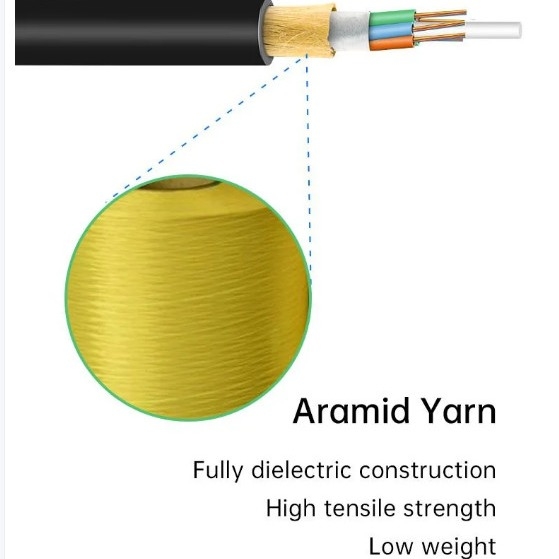

it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as
strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
|
Item
|
Parameters
|
|
|
Fiber
|
Type
|
G652D
|
|
Count
|
2-288 Cores
|
|
|
Loose tube
|
Material
|
PBT
|
|
Color
|
All colors display
|
|
|
Filler
|
Material
|
HDPE
|
|
Color
|
Natural color
|
|
|
Central Strength Member
|
Material
|
FRP
|
|
Non-metal reinforced pieces
|
Matrial
|
Aramid yarn
|
|
Outer jacket
|
Material
|
HDPE
|
|
Min.bending radius
|
Static
|
10 times cable diameter
|
|
Dynamic
|
20 times cable diameter
|
|
|
Repeating bending
|
Load:150N; number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage
|
|
|
Crush
|
Short term
|
1000N/100mm
|
|
Torsion
|
Load:150N; number of cycles:10; twist angle:±180° No obvious
addition attenuation, no fiber break and no cable damage |
|
|
Impact
|
Impact energy : 450g × 1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage. |
|
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
