GJYXFCH Duplex Zipcord Tight Buffer Indoor Steel Wire Fiber Optic YTTX
| Place of Origin | China |
|---|---|
| Brand Name | YUANTONG |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GJYXFCH |
| Minimum Order Quantity | 20KM |
| Price | Negotiable |
| Packaging Details | Wooden Drum |
| Delivery Time | 7 days |
| Payment Terms | L/C, T/T, Western Union, D/P |
| Supply Ability | 500km per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material Shape | Round Wire | Application | Communication |
|---|---|---|---|
| Type | Sm/mm | Allowed Lateral Pressure | 100(N/100mm)<1000(N/100mm) |
| Allowed Tensile Strength | 100N<1000N | Core | Multicore |
| Customization | Available | Sheath Material | PVC |
| Temperature | -20--60ºC | Brand | OEM |
| High Light | Zipcord Tight Buffer Indoor Steel Wire,Duplex Indoor Steel Wire Fiber Optic,GJYXFCH Indoor Fiber Optic Cable |
||
Product Description

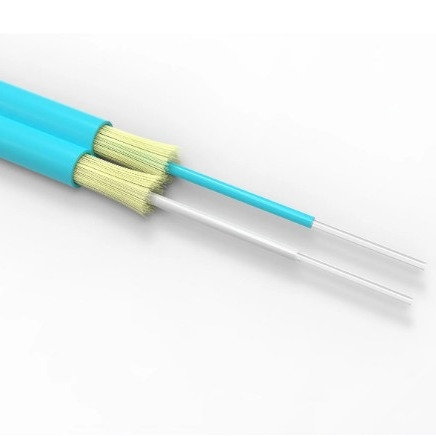

GJYXFCH Duplex Zipcord Tight Buffer Indoor Steel Wire Fiber Optic/Optical Drop Cable YTTX
Product profile
ZCC duplex zipper optical cable uses cp900|jm or cp600pm tight buffer optical fiber as the optical transmission medium, and a layer of aramid fiber is used as a force-reinforcing unit, and a layer of zipper PVC or low-smoke halogen-free material(LSZH) is extruded on the out jacket.
Product feature
• Tight buffer fiber has good flame retardancy.
• Excellent Stripping performance of tight buffer fiber
• The aramid fiber reinforced element makes the optical cable have excellent tensile performance.
• The outer protective material has the advantages of corrosion resistance, waterproof UV resistance, flame retardant, environmental protection, etc.
• The figure eight structure jacket is easy to peel off the branches and use.
Application
•Duplex fiber optic connection jumper or tail.
•Indoor shaft level and forced ventilation level wiring.
•Interconnection of instruments and communication equipment.
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Optical characteristics
| Cable type | Cable diameter (mm) | Optical cable reference weight (kg/km) | Fiber buffer fiber diameter (mm) | Tensile Strength Long/short term (N) |
Crush resistance Long/short term (N/100mm) | Bending Radius Dynamic/static (mm) |
| ZCC-1.6 | 1.65*2±0.05 | 5.2 | 0.6±0.05 | 40/80 | 100/500 | 60/30 |
| ZCC-2.0 | 1.95*2±0.05 | 7.0 | 0.9±0.05 | 100/200 | 100/500 | 60/30 |
| ZCC-3.0 | 2.85*2±0.05 | 13.0 | 0.9±0.05 | 100/200 | 100/500 | 60/30 |
Ordering information
| Cable diameter | 1.6-Ψ1.6mm, 2.0-Ψ1.95mm, 3.0-Ψ2.85mm |
| Fiber type | B1.3=G652D, B6A1=G657A1, B6A2=G657A2, A1 = 50/125, A1b=62.5/125, OM3= Maxband*150, OM3=Maxband*300, OM4=Maxband*550, OM5=Maxband*550 |
| Tight buffer color | Refer to Chromatogram |
| Outer jacket material | V-PVC, Z-LSZH |
| Outer jacket color | Refer to Chromatogram |
| Marking &Package | Per customer's request or factory standard |
Note:
1.Delivery length can be customized according to customer's requirements.
2.Chromatogram as below:
Optical characteristics
Transportation &operating temperature: -20°C~+60°C
Optical characteristics
| Fiber type | Attenuation | Full injection bandwidth | Effective mode bandwidth | 10G Ethernet link length | Minimum bend radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Normal | Max | Normal | Max | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 7.5 |
| 50/125 | - | - | 3.0/1.0 | 3.5/1.5 | >500/500 | - | - | 30 |
| 62.5/125 | - | - | 3.0/1.0 | 3.5/1.5 | >200/500 | - | - | 30 |
| OM3 | - | - | 3.0/1.0 | 3.5/1.5 | >1500/500 | >2000 | <300 | 30 |
| OM4 | - | - | 3.0/1.0 | 3.5/1.5 | >3500/500 | >4700 | <550 | 30 |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
