Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ROSH ,TLC, CCC, ISO
Model Number:
GJXH/GJXFH
Contact Us
Description

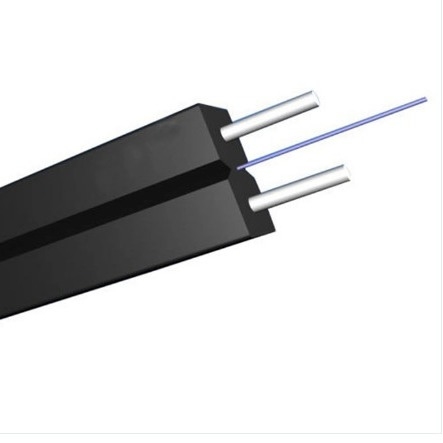

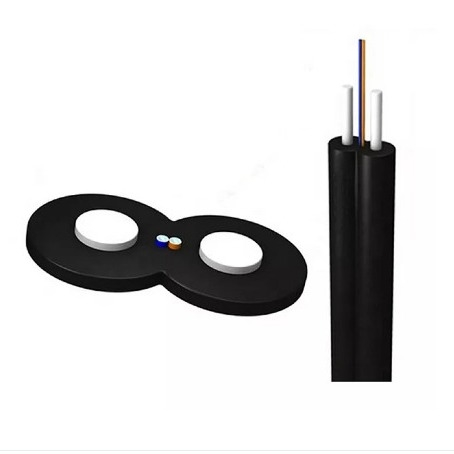

The compact, self-supporting fig 8 aerial fiber optical drop cable was developed to interconnect optical equipment indoors and outdoors in FTTH network branches, it is an enhanced performance FTTH solution. The cable constructed with one/two single mode /bend sensitive fibers (ITU-T G657A/G652D), protected by two strength member and a messenger wire. This cable is very light and easy to install and strip.
Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

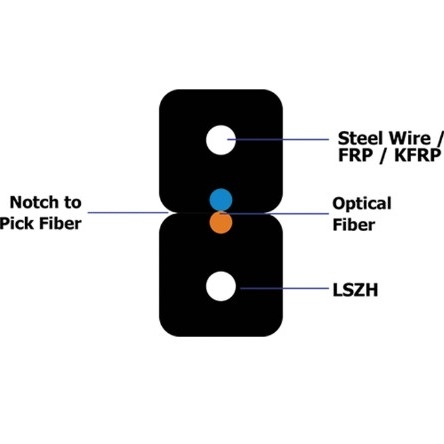

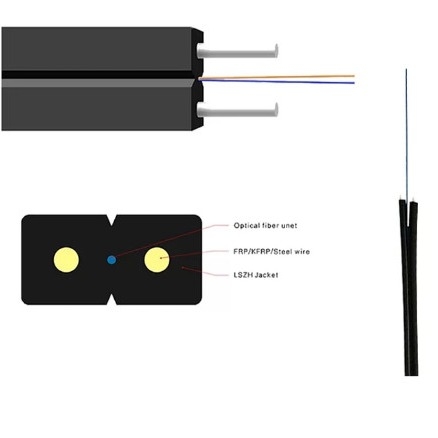

Two parallel FRP or Steel wire strength members ensure good performance of crush resistance to protect the fiber.
Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.
Simple structure, light weight and high practicability.
Novel flute design, easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and flame retardant sheath.
(1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,OFS etc.
(3) Jacket material: PE,LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.
(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.
| Fiber type | Attenuation | Bandwidth | Effective modal bandwidth | 10 Gb/s Link Length | |||
| Conditions | 1310/1550nm | 850/1300nm | 850/ | 850nm | 850nm | ||
| Typical | Maximum | Typical | Maximum | 1300nm | |||
| Unit | dB/km | dB/km | dB/km | dB/km | MHz.km | MHz.km | m |
| G652D | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| G657A1 | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| G657A2 | 0.4/0.3 | 0.5/0.4 | / | / | / | / | / |
| G657B3 | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| 62.5/125 | / | / | 3.5/1.0 | 3.5/1.5 | ≥160/500 | / | / |
| 50/125/ | / | / | 3.0/1.0 | 3.5/1.5 | ≥200/500 | / | / |
| OM1 | |||||||
| 50/125/ | / | / | 3.0/1.0 | 3.5/1.5 | ≥500/500 | / | / |
| OM2 | |||||||
| OM3-150 | / | / | 3.0/1.0 | 3.5/1.5 | ≥700/500 | ≥950 | 150 |
| OM3-300 | / | / | 2.5/0.8 | 3.0/1.0 | ≥1500/500 | ≥2000 | 300 |
| OM4-550 | / | / | 2.5/0.8 | 3.0/1.0 | ≥3500/500 | ≥4700 | 550 |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
