YTTX GYTS GYTA Outdoor Duct Fiber Optic Cable Aerial Duct Armored

Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GYTS/GYTA
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 500km per week
Product Details
Model Number GYTS (D177/D179) Core Multicore
Sheath Material PE Outer Sheath Type Single-mode Fiber
Material Shape Round Wire Allowed Lateral Pressure >1000(N/100mm)
Allowed Tensile Strength 1000N<10000N Certification RoHS, UL, CE, ISO9001
Origin China Chengdu Customization Available
High Light

GYTA Outdoor Duct Fiber Optic Cable

,

Armored Duct Fiber Optic Cable

,

Duct Armored Aerial Fiber Optic Cable

Leave a Message
Product Description
YTTX Aerial Duct Armored GYTS GYTA Outdoor Duct Fiber Optic Cable
Product Description

Description

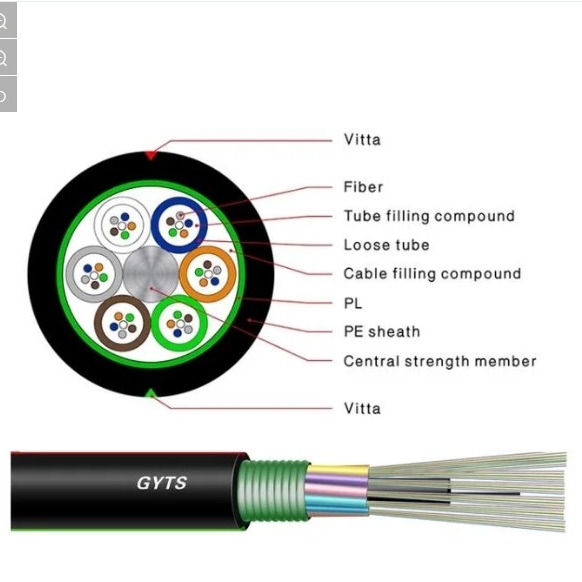

The GYTS optical cable structure is enters the single model or the multi- molds optical fiber wrap by the high module in the loose drive pipe which gathers the fat material to make, in the drive pipe fills the waterproof compound. The cable core center is a metal strengthens the core, said regarding certain core numbers optical cables, the metal strengthens outside the core also to have to crowd polyethylene (PE). The loose drive pipe (and packing rope) revolves the center to strengthen the core to twist the synthesis compact circular cable core, in the cable core slit imitates by the anti- water bed. After two-sided spreads models the steel belt (PSP) the vertical package the polyethylene protective covering to become the cable.

Features

Accuracy control optical fibers Yu Chang had guaranteed the optical cable has good anti- pulls the performance and temperature characteristic
Loose sheathing materials itself has good bears the hydrolysis performance and a higher intensity, in the tube imitates by the special grease, has carried on the crucial protection to the optical fiber.
Good resistance to compression and the flexible
Polyethylene (PE) the protective covering has the good anti- ultraviolet radiation

Application:
Adopted to Outdoor distribution.
Laying ways: Pipeline , Overhead , Direct buried ,Duct
Long distance and local area network communication.

Characteristics:
Good ultra violet radiation resistant property.
Good moisture-resistance.
Good crush-resistance mechanical performance.
Method of installation are easily.

Product Parameters

Model Fibers Tubes No. OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term

GYTS 1-12 1 9.3mm 80 1000/2000N 1000/2000N
  24 2 9.3mm 80 1000/2000N 1000/2000N
  36 3 9.5mm 90 1000/2000N 1000/2000N
  48 4 9.5mm 90 1000/2000N 1000/2000N
  72 6 11mm 120 1000/2000N 1000/2000N
  96 8 13.8mm 150 1000/2000N 1000/2000N
  144 12 16.5mm 200 1000/2000N 1000/2000N
  288 24 18mm 250 1000/2000N 1000/2000N




FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
