Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ROSH ,TLC, CCC, ISO
Model Number:
GYTS
Contact Us

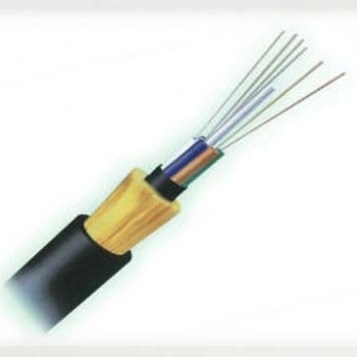

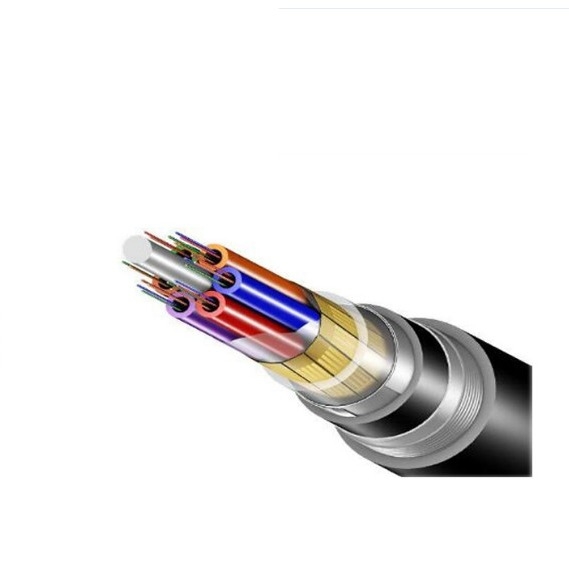

GYTS Armored loose tube 24 core optical fiber cable
1. Application: Duct /arerial /direct buried
2. Suitable for long-distance trunk and LAN communicationin high-voltage area or access to telecom network. Especially for powertransmission systemexcessive thunder areas and high electromagnetic interference.
3. Fiber type: Single-mode/Multimode
Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tube from shrinking
5. Crush resistance and flexibility
6. Steel wire used as the central strength member
7. Loose tube filling compound
8.100% cable core filling
9. PSP enhancing moisture-proof

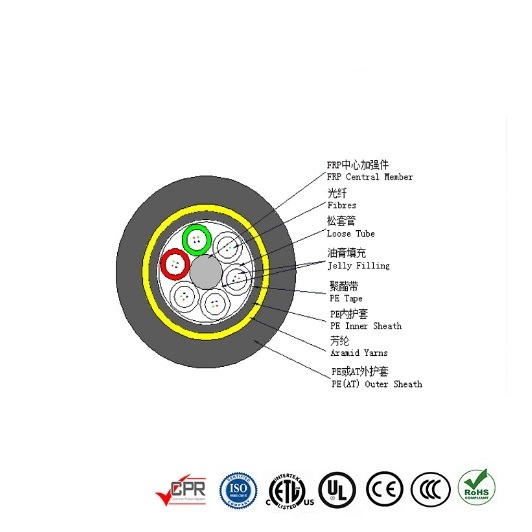

| Structure | Unit | Parameter | |
Fiber count |
fibers | 24 | 48 |
Element |
-- | 5 | 5 |
Loose tube Diameter |
mm | 1.9/1.3 | 2.2/1.55 |
Cores of per tube(no more than) |
-- | 6 | 12 |
Phosphatic steel wire/PE sheath( if required) |
mm | 1.5 | 1.6 |
Cable diameter(Nom. ) |
mm | 10.0 | 10.8 |
Weight(Approx. ) |
Kg/km | 113 | 131 |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
