GYXTS G652d Single Mode 12 Core Fiber Optic Cable YTTX Outdoor

Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GYXTS-12B1
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 500km per week
Product Details
Model Number GYXTS Type Fiber Optic Cable
Place Of Origin Chengdu, China Key Words 12 Core Fiber Optic Cable
Product Name Outdoor Fiber Optic Cable OEM Available
Jacket Material PE Application Outdoor Aerial,Pipeline
Fiber Type G652D Or On Your Request Strength Member Two Parallel Steel Wire
High Light

Singlemode 12 Core Fiber Optic Cable

,

G652d 12 Core Fiber Optic Cable

,

GYXTS Outdoor Armored Fiber Optic Cable

Leave a Message
Product Description
YTTX Outdoor GYXTS g652d Single Mode 12 Core Fiber Optic Cable
Product Description

Max attenuation: 0.36dB @ 1310nm and 0.21dB/Km @1550nm Fiber : G652D Installation: Suitable for aerial , duct ,buried Application : Apply to Long distance communication system, Local area network system and Subscriber network system Lifetime: above 30 years Operating temperature : -40℃~+70℃ Permisson bent radius Static : 10 times O.D. Dynamic : 20 times O.D.
Dynamic : 20 times O.D.



Characteristics

1. Low dispersion and attenuation.

2. Proper design,precise control for fiber excess length render the cable excellent mechanical and enviromental characteristics.

3. The armoring of steel wire makes cable have excellent tensile strength and nice crush resistance performance.

4. Steel - PE sheath makes cable have nice mositure resistance performance.

5. Small cabel diameter , light cable weight ,easy to install.



Optical Characteristics:

Fiber
Cable Diameter (mm)
Cable weight (kg/km)
Min. bending radius
(mm)
Min. tensile strength (N)
Min. crush pressure
(N/100mm)
Static state
Dynamic state
Short term
Long term
Short term
Long term
2~8
8.8
100
110
220
1500
600
1000
300
10~12
9.5
133
120
240
1500
600
1000
300



Environmental Characteristics

Transport/storage temperature: -40℃ to +70



FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.

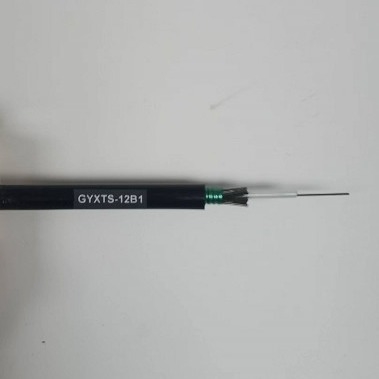

GYXTS G652d Single Mode 12 Core Fiber Optic Cable YTTX Outdoor 0

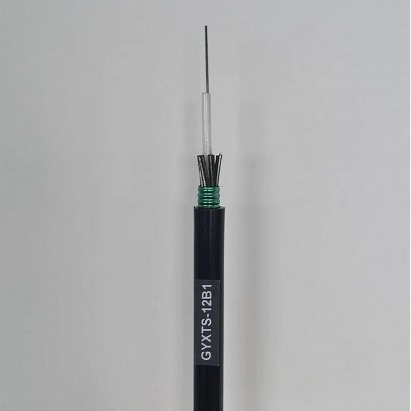

GYXTS G652d Single Mode 12 Core Fiber Optic Cable YTTX Outdoor 1

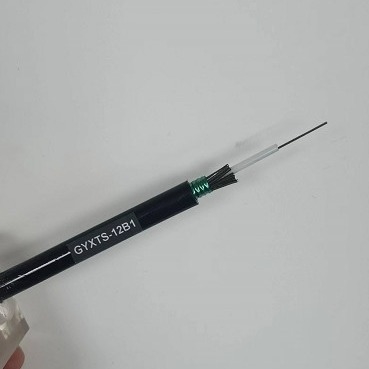

GYXTS G652d Single Mode 12 Core Fiber Optic Cable YTTX Outdoor 2
