YTTX Fiber Optical Air Blown Micro Cable Single Mode 12 Core

Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GCYFY-12B1
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number GCYFY-12B1 Type Fiber Optical Cable
Place Of Origin Sichuan, China Fiber Count 12 Core
Model Single Mode Outer Diameter 5.5mm
Weight About 30kg/km Application Duct Laying
Sheath Material HDPE Transport Package Wooden Drum
High Light

Fiber Optical Air Blown Micro Cable

,

YTTX Air Blown Micro Cable

,

Singlemode 12Core Fiber Optical Cable

Leave a Message
Product Description
YTTX low price single mode 12 core micro air blown fiber optical cable



Product Description

All non-metal structure, no need to be grounded , low friction coefficient sheath material and structure design, long distance air blown laying



GCYFY air blown fiber optic cable using FRP central strength member, the whole structure with out armor, all non-metallic,this kind of cable can be installed in the micro tube by air blowing equipment, it breaks through the technical limitations of existing optical cable duct laying construction,improves the utilization efficiency of pipeline, and is easy to be expanded.


Characteristics

Small diameter, light weight, easy to bend when laying by air blowing equipment, easy to operate;
All non-metal structure, no need to be grounded , low friction coefficient sheath material and structure design, long distance air blown laying;
Full use of pipe hole resources, construction speed is fast;With the growth of communication business volume, it can be blown into optical cable in batches, and the investment is distributed to reduce the early investment;
It is suitable for construction in crowded MAN pipeline and avoids the destructive excavation in the past.

Basic parameters:
Country of Origin
China
Product name
ABF air blown fiber optic cable
Brand name
OUFU
Type
GCYFY-12B1
Fiber count
12 cores
Fiber model
Single mode
Weight
about 30 kg/km
5.5Outer diameter
5.5mm
Structure
Loose tube stranding;
Non-metallic structure
Strength member
GFRP
Sheath material
HDPE
Color
Black
Operation temperature
-40~+70℃
Micro tube diameter
≤10.0mm







FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.

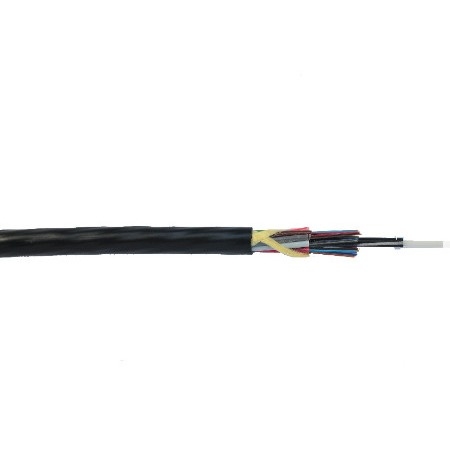

YTTX Fiber Optical Air Blown Micro Cable Single Mode 12 Core 0

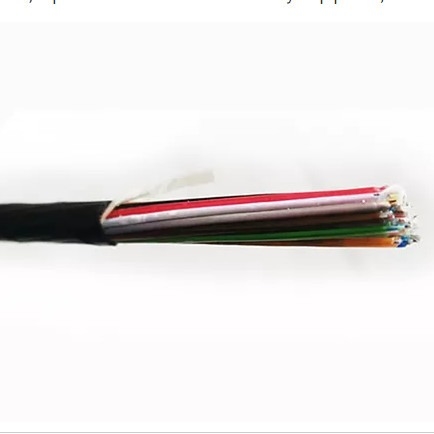

YTTX Fiber Optical Air Blown Micro Cable Single Mode 12 Core 1

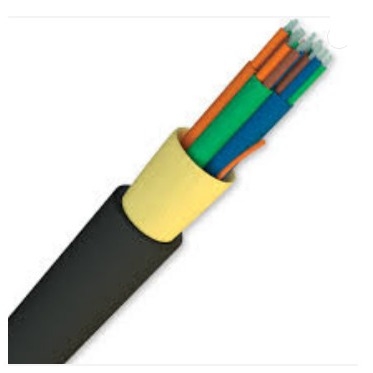

YTTX Fiber Optical Air Blown Micro Cable Single Mode 12 Core 2









YTTX Fiber Optical Air Blown Micro Cable Single Mode 12 Core 3
