Place of Origin:
China
Brand Name:
YUANTONG
Certification:
CCC,IEC,ISO9001,IAF
Model Number:
Connector
Contact Us

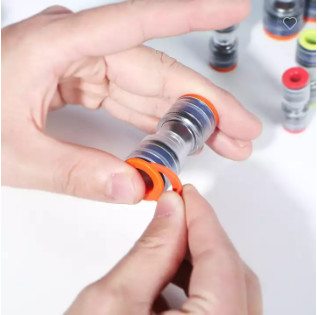

These connectors were developed to connect microconduits to each other. Our system allows easy and fast connection and disconnection of microcatheters. The connector has a robust construction against high pressure and can be used in direct burial (DB) applications. The transparent body makes the cable in the connector easy to inspect visually.
Feature
- No metal parts
- Crystal clear body
- Simple "plug in" installation
- Sturdy design, directly buried and above ground use
- Lock ring to prevent accidental connector disassembly
Specification
|
Tube to connector
|
Polyethylene HDPE
|
|
Fluid
|
Air with blowing system
|
|
Working Pressure
|
20 bar
|
|
MAX. Pressure
|
28 bar
|
|
Userful life
|
25 years
|
|
Tube assembly
|
No tooling required
|
|
Water ingress test
|
0.5 bar during 168 hours
|
|
Working temperature
|
-45℃/+50℃
|
|
Transport and storage temperature
|
-10℃/+50℃
|
|
Installation temperature
|
-10℃/+50℃
|
|
Recommended blowing temperature
|
-15℃/+35℃
|
|
Outdoor exposure limit @Cetral Europe
|
12 months
|
|
Protection class
|
IP68
|
|
High pressure resistance(safety)
|
>50bar
|
|
According to Standards
|
CEI EN 50411-2-8,EN 50411-2-5
|
|
Related documents
|
EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003
|
|
Related documents
|
ISO 3601,ISO 4397:1993(2000),ISO4399:1995
|
|
Model
|
D1
|
D2
|
A1
|
A2
|
B
|
L
|
Weight(g)
|
|
ERPU3/2.1
|
3
|
3
|
|
|
2.1±0.12
|
|
|
|
ERPU4/2.5
|
4
|
4
|
|
|
2.5±0.12
|
|
|
|
ERPU5/3.5
|
5
|
5
|
13.5±0.2
|
13.5±0.2
|
3.5±0.12
|
35.8±0.5
|
3.6±0.1
|
|
ERPU6/3.5
|
6
|
6
|
13.5±0.2
|
13.5±0.2
|
3.5±0.12
|
35.8±0.5
|
3.6±0.1
|
|
ERPU7/5.5
|
7
|
7
|
15.2±0.2
|
15.2±0.2
|
5.5±0.12
|
41.2±0.5
|
5.4±0.1
|
|
ERPU8/6
|
8
|
8
|
15.2±0.2
|
15.2±0.2
|
6±0.12
|
41.2±0.5
|
4.7±0.1
|
|
ERPU8.5/6
|
8.5
|
8.5
|
15.2±0.2
|
15.2±0.2
|
6±0.12
|
41.2±0.5
|
4.7±0.1
|
|
ERPU10/8
|
10
|
10
|
17.5±0.2
|
17.5±0.2
|
8±0.12
|
45.2±0.5
|
6.7±0.1
|
|
ERPU12/10
|
12
|
12
|
21.5±0.2
|
21.5±0.2
|
10±0.12
|
52.2±0.5
|
11.8±0.1
|
|
ERPU14/11
|
14
|
14
|
23.5±0.2
|
23.5±0.2
|
11±0.12
|
52.2±0.5
|
12.95±0.1
|
|
ERPU14/12
|
14
|
14
|
23.5±0.2
|
23.5±0.2
|
12±0.12
|
52.2±0.5
|
12.85±0.1
|
|
ERPU15/12
|
15
|
15
|
25.3±0.2
|
25.3±0.2
|
12±0.12
|
52.2±0.5
|
14.6±0.2
|
|
ERPU16/14
|
16
|
16
|
25.3±0.2
|
25.3±0.2
|
14±0.12
|
52.2±0.5
|
14.5±0.2
|
|
ERPU18/15
|
18
|
18
|
32.7±0.3
|
32.7±0.3
|
15±0.12
|
55.9±0.5
|
29.8±0.2
|
|
ERPU20/17
|
20
|
20
|
32.7±0.3
|
32.7±0.3
|
17±0.12
|
55.9±0.5
|
27.8±0.2
|
|
ERPU25/22
|
25
|
25
|
|
|
22±0.12
|
|
|
|
ERPU1/8(2.1)
|
1/8
|
1/8
|
|
|
2.1±0.12
|
|
|
|
ERPU3/16(3.5)
|
3/16
|
3/16
|
13.5±0.2
|
13.5±0.2
|
3.5±0.12
|
35.8±0.5
|
3.6±0.1
|
|
ERPU1/4(3.5)
|
1/4
|
1/4
|
13.5±0.2
|
13.5±0.2
|
3.5±0.12
|
35.8±0.5
|
3.6±0.1
|
|
ERPU5/16(6)
|
5/16
|
5/16
|
15.2±0.2
|
15.2±0.2
|
6±0.12
|
41.2±0.5
|
5.4±0.1
|
|
ERPU3/8(8)
|
3/8
|
3/8
|
17.5±0.2
|
17.5±0.2
|
8±0.12
|
45.2±0.5
|
6.7±0.1
|
|
ERPU1/2(10)
|
1/2
|
1/2
|
21.5±0.2
|
21.5±0.2
|
10±0.12
|
52.2±0.5
|
11.8±0.1
|
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
