Place of Origin:
China
Brand Name:
YUANTONG
Certification:
CCC,IEC,ISO9001,IAF
Model Number:
Patch Cable
Contact Us
Product Description

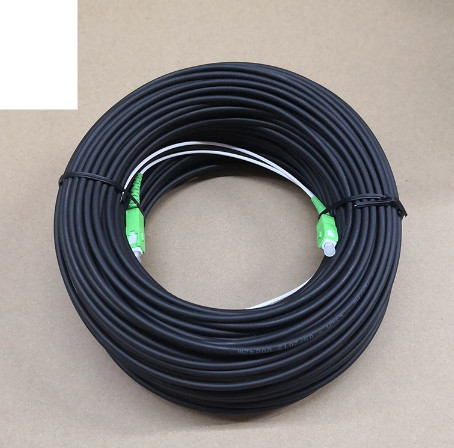

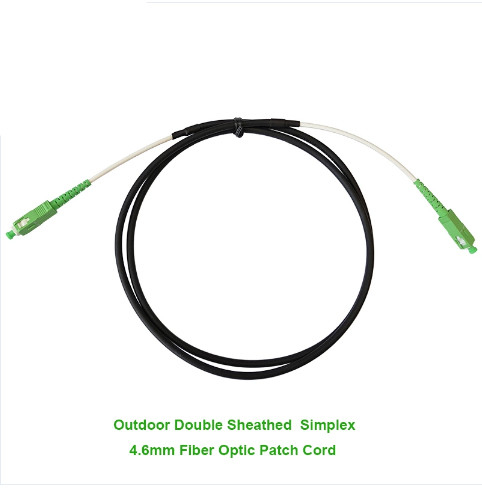

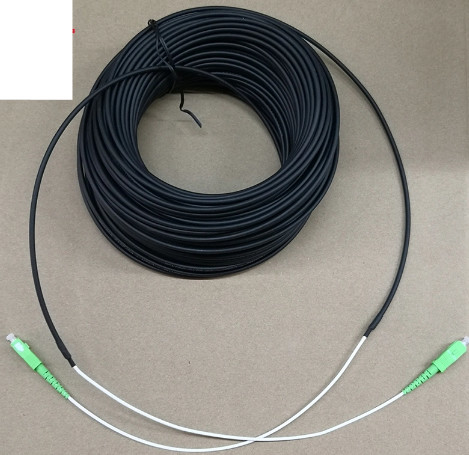

It is composed of a 900um multimode or single-mode optical fiber. The inner sheath is a 3.0mm low smoke halogen-free inner sheath, which is made of aramid yarn strength components. Aramid yarn non-metallic strength member and final 4.6 mm LSZH outdoor sheath.
Ideal for internal/external high EMI FTTH applications - horizontal, riser, and piping.
Feature
G652D, G657A, OM1, OM2, OM3, and OM4 fiber types are available.
All dielectric structures are made of aramid yarn for physical protection and mechanical strength.
The double LSZH sheathed cable has better tensile strength,
Machinery, rodents, UV and environmental protection.
Mechanical, Environmental & Material Data
Fiber Mode | Singlemode or Multimode |
Fiber count | 1 |
Connector Style | SC, FC, ST, LC, MU, E2000, DIN |
Polish or Ferrule Interface Type | PC, UPC, APC |
Cable Lengths | Custom Lengths |
Jacket Material | LSZH |
Outer Jacket Color | Black |
Inner Jacket Color | White |
Strength Member | Aramid Yarn |
Outer Jacket Diameter(mm) | 4.6 ±0.1 |
Inner Jacket Diameter(mm) | 3.0 ±0.1 |
Crush(N/100mm) | 1000 |
Maximum Tensile Load(Long term) | 150N |
Maximum Tensile Load(Short term) | 400N |
Storage Temperature(°C) | -20°C to 60°C |
Installation Temperature(°C) | -5°C to 50°C |
Operating Temperature(°C) | -20°C to 60°C |
Optical Characteristics
Fiber Type | Max. Attenuation(dB/km) | Min.Overfill Launch Bandwidth (Mhz.km) |
Min.Gigabit Ethernet Link Distance (m) |
||||||
Gigabit | 10Gigabit | ||||||||
850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nnm | |
OM1 62.5/125µm | ≤2.7 | ≤0.6 | - | - | ≥500 | ≥600 | 275 | 550 | - |
OM2 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥500 | ≥500 | 750 | 600 | 150 |
OM3 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
OM4 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1100 | 600 | 550 |
G652D 9/125µm | - | - | ≤0.30 | ≤0.18 | - | - | - | - | - |
G657A 9/125µm | - | - | ≤0.35 | ≤0.21 | - | - | - | - | - |
Optical Performance Data
Item | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) | ||||
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | PC≥35dB | ||
Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) | ||||
Pull Strength | ≥98N | ≥98N |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
