2*0.5mm FRP FTTH Flat Drop Cable GJXFH 1/2/4/6 Cores

  • 2*0.5mm FRP FTTH Flat Drop Cable GJXFH 1/2/4/6 Cores
Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GJXFH 1/2/4/6 cores
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FTTH Fiber Optic Cable Model Number GJXFH
Strength Member 2 Frp Fiber Type G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Jacket Color White ,black Or Customization Jacket Material LSZH
Operation Temperature -40℃~+60℃ Supply Ability 10000 Kilometer/Kilometers Per Month
High Light

Ftth drop cable 4 cores

,

Ftth drop cables 6 cores

,

FRP FTTH flat drop cable
Leave a Message
Product Description
Ftth drop cable GJXFH 1/2/4/6 cores 2*0.5mm FRP FTTH flat drop cable
Product Description

Description

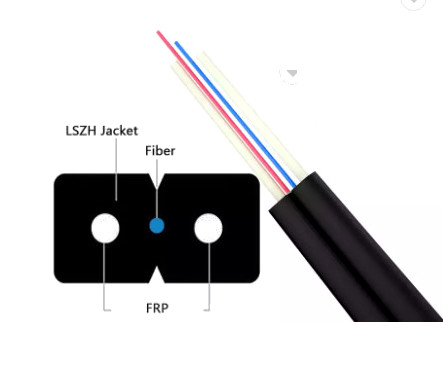

The butterfly lead-in optical cable of GJXFH access network is to place the optical communication unit in the center, place two parallel non-metallic reinforcement elements (FRP) on both sides, and finally extrude the black or color low-smoke halogen-free sheath to form the optical cable..

Features

1. Special anti-bending optical fiber provides greater bandwidth and enhances network transmission characteristics
2. Two parallel FRP reinforcement elements make the optical cable have good compression resistance and protect the optical fiber
3. Optical cable has simple structure, light weight and strong practicability
4. Unique groove design, easy to peel, easy to connect, easy to install and maintain



Application


1.Applicable to fiber to the home, indoor horizontal and vertical wiring

2.Applicable to fiber indoor carpet and wall corner wiring



2*0.5mm FRP FTTH Flat Drop Cable GJXFH 1/2/4/6 Cores 0


Fiber Counts
NNCable Diametre (mm)
Net Weight (kg/km)
Tensile Strength Long/Short Term (N)
Crush Resistance Long/Short Term (N)
Bending Radius
Static/Dynamic
(mm)
1
(2.0±0.2)×(3.0±0.2)
7.5
30/60
300/1000
15/30
2
(2.0±0.2)×(3.1±0.2)
7.7
30/60
300/1000
15/30
4
(2.0±0.2)×(3.2±0.2)
8.0
30/60
300/1000
15/30
6
(2.0±0.2)×(3.3±0.2)
8.5
30/60
300/1000
15/30
8
(2.5±0.2)×(3.5±0.2)
9.3
30/60
300/1000
15/30
12
(2.5±0.2)×(3.6±0.2)
9.5
30/60
300/1000
15/30

2*0.5mm FRP FTTH Flat Drop Cable GJXFH 1/2/4/6 Cores 1

2*0.5mm FRP FTTH Flat Drop Cable GJXFH 1/2/4/6 Cores 2



2*0.5mm FRP FTTH Flat Drop Cable GJXFH 1/2/4/6 Cores 3

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
