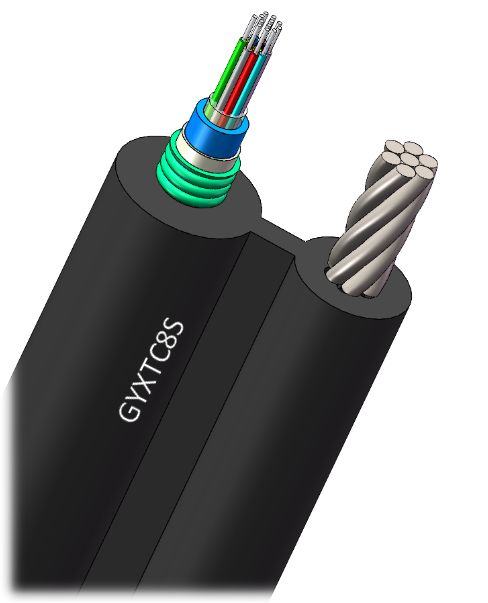

Name: GYXTC8S Self-Supporting Figure 8 Optical Cable for Long-Distance Communication with Corrosion Resistant Design
Brand: Sichuan Yuantong Communication Co., Ltd.
SKU: GYXTC8S
Price: 46.15 USD
Availability: InStock

Home > Products > Outdoor Aerial Fiber Optic Cable >

GYXTC8S Self-Supporting Figure 8 Optical Cable for Long-Distance Communication with Corrosion Resistant Design

Self-Supporting Figure 8 Optical Cable

Corrosion Resistant GYXTC8S Optical Cable

Long-Distance Communication Self-Supporting Optical Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ISO

Model Number:

GYXTC8S

Request A Quote

Product Details

Payment & Shipping Terms

Minimum Order Quantity

2km

Packaging Details

Drum

GYFXC8Y 12-Core FTTH Self-Supporting Fiber Optic Cable

Get Best Price

Video

GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m

Get Best Price

Video

Outdoor Aerial Fiber Optic Cable with Anti-Rodent Protection

Get Best Price

Video

GYTC8A Self-Supporting Aerial Fiber Optic Cable with Aluminum Armor

Get Best Price

+86 159 2815 7093

Sales03@chinafibercable.com

86-28-85050348

Contact Now

Product Description

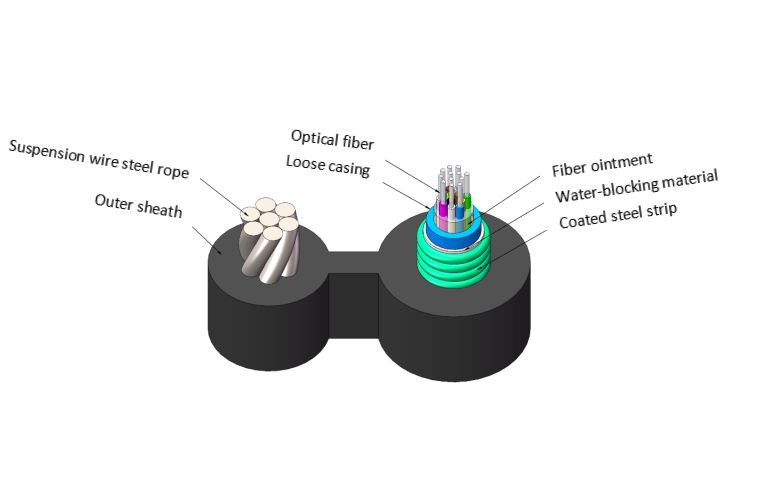

GYXTC8S "8" Shaped Central Tube Self-Supporting Optical Cable

The GYXTC8S optical cable features a central loose tube design where single-mode or multi-mode optical fibers are inserted into high modulus plastic tubes filled with waterproof compound. The cable structure includes longitudinal water hose wrapping and steel-polyethylene bonded sheath extrusion, with steel strand hanging wires for secure cabling.

Installation Methods

Self-supporting, overhead installation

Application Scope

Ideal for long-distance communication systems and inter-office communication networks

Execution Standard

YD/T 1155-2011 "8" shaped self-supporting optical cable for communication

Product Features

Optimized design with precise fiber length control ensures excellent mechanical and environmental performance
Compact construction with water-blocking materials between steel tape and loose tube provides superior moisture protection and minimal tube return after installation
Exceptional flexibility and bending resistance for versatile deployment
Steel-belt longitudinal casing offers enhanced moisture resistance, compression strength, and rodent damage protection
High-tensile steel strands enable convenient self-supporting overhead installation

Technical Parameters (Typical Values)

Model	Core	Size (mm)	Stretching (N)	Flatten (N/100mm)	Minimum Bending Radius (mm)	Optical Fiber Attenuation (dB/KM)	Applicable Temperature (°C)	Optical Cable Weight (kg/KM)
			Long-term	Short-term	Long-term	Short-term	"Dynamic"	Static	1310nm	1550nm
GYXTC8S	2-12	5.0+7.6/15.1	1500	4500	300	1000	20D	10D	≤0.36	≤0.22	-40～+60	137
	14-18	5.0+8.5/16.0	1500	4500	300	1000	20D	10D	≤0.36	≤0.22	-40～+60	148
	20-24	5.0+9.0/16.5	1500	4500	300	1000	20D	10D	≤0.36	≤0.22	-40～+60	165
