SC APC UPC Single Mode Fiber Connectors For Communication system

  • SC APC UPC Single Mode Fiber Connectors For Communication system
  • SC APC UPC Single Mode Fiber Connectors For Communication system
  • SC APC UPC Single Mode Fiber Connectors For Communication system
Place of Origin China
Brand Name YUANTONG
Certification CCC,IEC,ISO9001,IAF
Model Number Connector
Minimum Order Quantity 100
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fast Connector Type FTTx Solutions
Place Of Origin Sichuan, China Warranty Time 3 Years
Brand OEM Use FTTx Solutions, FTTX
Application Communication/Networking Color Green/Blue
Package Type - 40 ~ +85 Insertion Loss Carton
Model Number -APC/UPC
High Light

SC UPC single mode fiber connectors

,

YTTX single mode fibre connector types

,

SC APC single mode fiber optic connectors
Leave a Message
Product Description

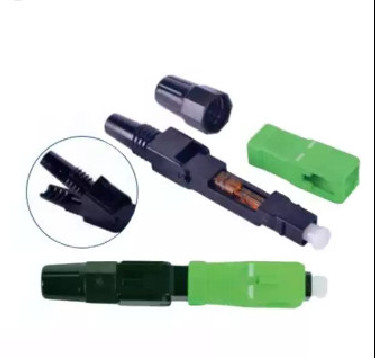

YTTX SC APC UPC single mode green blue field assembly optical fast connector fiber optic quFiber Optic Cable Connectors

Product Description

Optical fiber connector is a device used for detachable (active) connection between optical fiber and optical fiber. It accurately docks the two end faces of the optical fiber, so that the light energy output from the transmitting fiber can be coupled to the receiving fiber to the maximum extent. The impact of optical fiber link on the system, the basic requirement of optical fiber connector, is minimized. Optical fiber connector affects the reliability and performance of optical transmission system to a certain extent.



Feature



1. Advanced production and test equipment
2. Professional manufacturer, 100% test.
3. Fully comply with ISO 9001:2008 quality management system
4. Our company has an experienced professional team
5. Provide reliable solutions and satisfactory services
6. Warm and considerate service.
7. You can provide your specific query within 24 hours. Advanced production and test equipment



Application



FTTx Deployments(GPON/BPON/EPON)
Cable television (CATV)
Local area networks (LAN)
Test equipment
Passive optical networks(PON)



Specification




Unit
LC,SC,FC,ST,MTRJ,MPO
parameter
SM
MM
PC
UPC
APC
PC
Insertion Loss
dB
≤0.2
≤0.2
≤0.2
≤0.2
Return Loss
dB
≥45
≥50
≥60
≥30
Exchangeability
dB
≤0.2
Repeatability
dB
≤0.2
Durability
Time
>10000
Operating Temperature
℃
-40~75
Storage Temperature
℃
-40~85





SC APC UPC Single Mode Fiber Connectors For Communication system 0





SC APC UPC Single Mode Fiber Connectors For Communication system 1





SC APC UPC Single Mode Fiber Connectors For Communication system 2





SC APC UPC Single Mode Fiber Connectors For Communication system 3





SC APC UPC Single Mode Fiber Connectors For Communication system 4
