Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ROSH ,TLC, CCC, ISO
Model Number:
GYXTW
Contact Us
Description

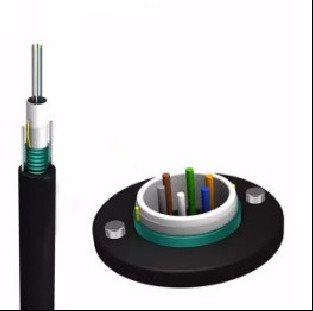

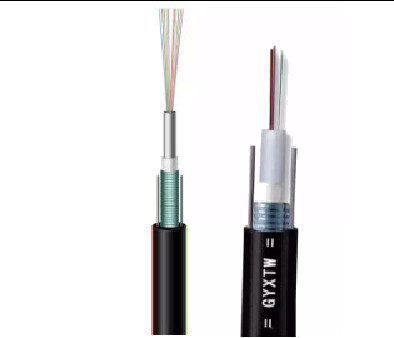

250μM fiber is placed in a loose tube made of high modulus plastic;
The pipe is filled with waterproof filling compound, which can be used under multiple environmental conditions;
The pipe is wrapped with a layer of corrugated steel strip longitudinally. Waterproof materials are used between corrugated steel belt and loose pipe to keep the cable compact and waterproof;
Place two parallel steel wires on both sides of the steel strip, and the cable is equipped with PE sheath.
Characteristics:
·Good mechanical and temperature performance
·Hydrolytic resistant high strength loose tube
·Special pipe filling compound ensures critical protection of fiber
·Compression resistance and flexibility
·Two parallel wires ensure tensile strength
·Small diameter, light weight and convenient installation
Model Number | GYXTW |
Type | Coaxial |
Number of Conductors | 2 |
Certification | UL ,ROHS,SGS |
Fiber | SM/MM/OM3/OM4 |
Fiber Core | 2-24 core |
Jacket Material | PE /LSZH/PU |
Laying method | Pipeline/Overhead/Direct bury/Duct |
keywords | outdoor fiber optic cable |
Color | Black or customized |
Fiber brand | Corning, LS, etc |
Fire Resistant | Yes |
Armored or not | Corrugated steel tape armored |
G.652D | 50/125μm | 62.5/125μm | ||
Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
@1310nm | ≤0.36 dB/km | |||
@1550nm | ≤0.22 dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
Cable Cut-off Wavelength λcc | ≤1260nm |
Technical Parameters
Cable Type |
Fiber Count |
Cable Diameter(mm) |
Cable Weight kg/km |
Tensile Strength Long /Short Term N |
Crush Resistance Long/Short Term N /100mm |
Bending Radius Static /Dynamic mm |
GYXTW-2~24 | 2~24 | 8.8 | 90 | 600/1500 | 300/1000 | 15D/30D |
Standards:
GYXTW cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
