Use In Aerial FTTH Self Supporting Fiber Optic Drop Cable Indoor And Outdoor Use

Use In Aerial FTTH Self Supporting Fiber Optic Drop Cable Indoor And Outdoor Use

Aerial Fiber Optic Drop cable

FTTH Self Supporting Fiber Drop cable

Indoor Fiber Optic Drop cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ISO,ANATEL,ROSH,TLC,CCC

Model Number:

GJYXCH/GJYXFCH

Contact Us

Request A Quote
Product Details
Product Name:
FTTH Self-Supporting Drop Cable
Shape:
Bow Shape
Fiber Type:
G657A
Cable Strength Member:
FRP/Steel Wire
Sheath Material:
LSZH/PVC
Outer Jacket Color:
Black
Operation Temperature:
-40℃ To +60℃
Tensile Strength:
≥300N
Cable Diameter:
2.0*5.0mm
Application:
Outdoor Aerial
Oem:
Supported
Cable Length:
Customizable
Payment & Shipping Terms
Minimum Order Quantity
10km
Price
negotiated
Packaging Details
wooden drum plus carton box
Delivery Time
within 7 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000km per week
Product Description

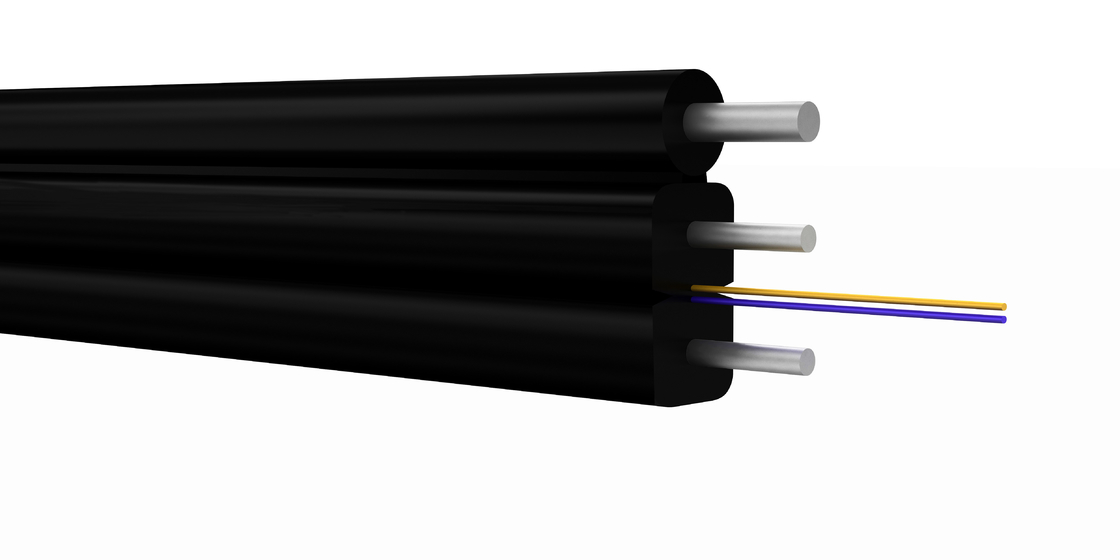

FTTH fiber drop cable 1 2 4 Core Outdoor Indoor Fiber Optical Cable

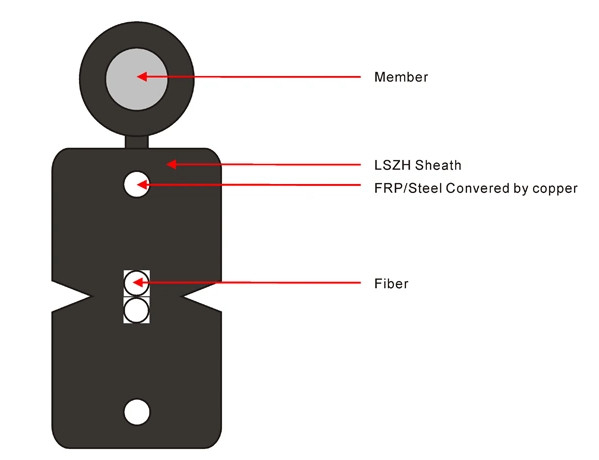

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber.The cable isprotected by a dielectric strength member, suitable for direct aerial installationinto the houses in FTTH proiects.

  • Coloring Fiber
  • Bow Shape
  • FRP/STEEL As Strength Member
  • Good Performance Outer Sheath

Application

  • Indoor and Outdoor Use
  • Suitable Use In aerial

Technical Parameter

Fiber Count Outer Dia.(mm) Tensile Resistance(N) Crush Resistance(N/100m) Min Bending Radius(mm) Attenuation(dB/Km) Operation Temperature() N.W(kg/km)
Long Term Short Term Long Term Short Term Dynamic Static 1310nm 1550nm
GJXH-1
GJXH-2
2.0x3.0 300 600 1000 2200 20 40 ≤0.4 ≤0.3 -40℃~+60℃ 20
GJXH-4 2.0x3.0 300 600 1000 2200 20 40 ≤0.4 ≤0.3 40℃~+60℃ 20.5
GJXFH-1
GJXFH-2
2.0x3.0 300 600 1000 2200 20 40 ≤0.4 ≤0.3 40℃~+60℃ 18
GJXFH-4 2.0x3.0 300 600 1000 2200 20 40 ≤0.4 ≤0.3 40℃~+60℃ 18.6

Company Profile

Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, poweroptical fiber cable, submarine optical cable and special optical cable etc.Yuantong has more than 200 staffs, of which 20% are senior engineers ,30% are mid-level employees.

Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmentalmanagement, health management and TLC.

Use In Aerial FTTH Self Supporting Fiber Optic Drop Cable Indoor And Outdoor Use 0
Use In Aerial FTTH Self Supporting Fiber Optic Drop Cable Indoor And Outdoor Use 1

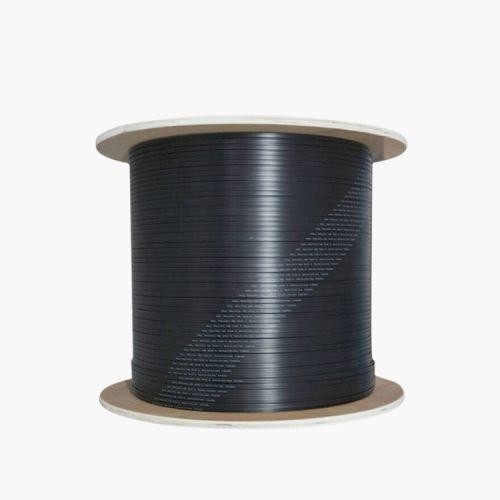

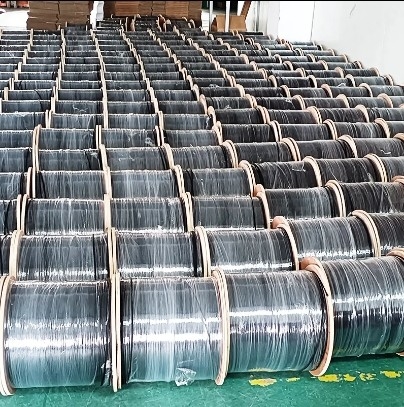

Packaging & Shipping

Use In Aerial FTTH Self Supporting Fiber Optic Drop Cable Indoor And Outdoor Use 2

Use In Aerial FTTH Self Supporting Fiber Optic Drop Cable Indoor And Outdoor Use 3

FAQ

1. Are you the manufacturer or trader ?

   We are manufacturer.



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable;



3. Do you have certificate for raw material?

   We build long-term relationship cooperation with qualified ISO9001, ROHS  raw material suppliers.



4. What is your delivery time?

   7-15 days for common fiber cables, 10-20 days for your customized requirements.



5. MOQ: what is your minimum quantity?

   MOQ : 10KM



6. where will you sell to ?

   worldwide.



7. Payment

   TT bank transfer, western union



8. Shipping & Delivery

    by Sea and by air
