Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ISO,ANATEL,ROSH,TLC,CCC
Model Number:
GYXTW
Contact Us

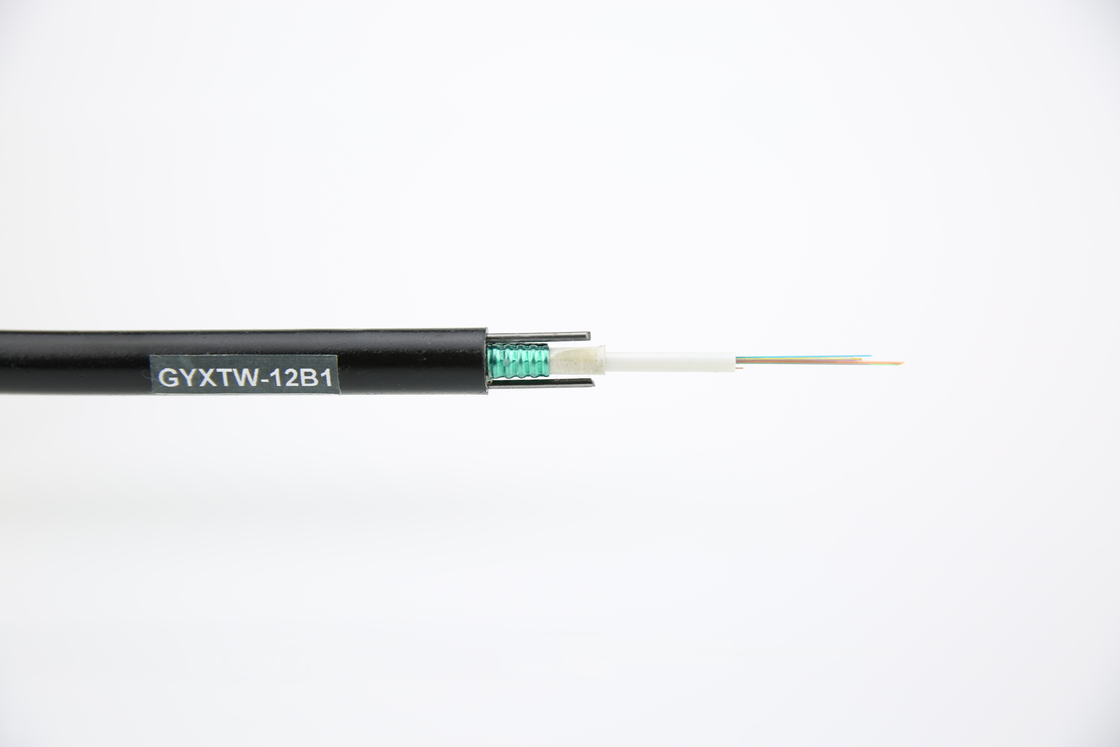

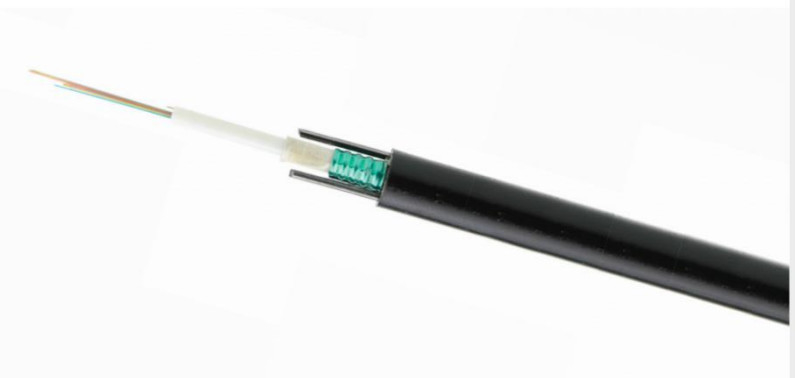

outdoor aerial armored cable gyxtw fiber optic cable g652d fiber optica cable with two steel messenger GYXTW

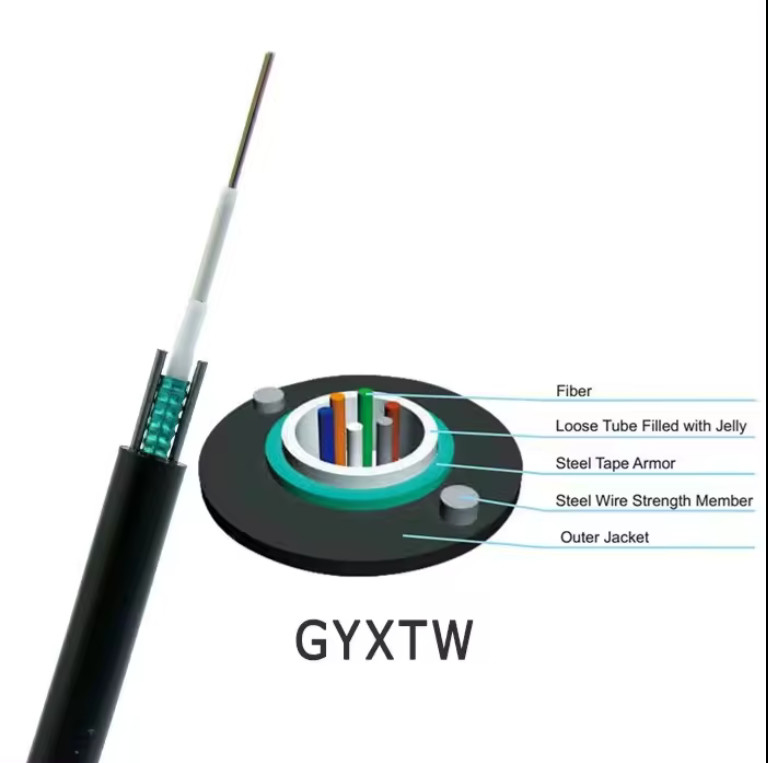

Fibers are contained within a loose tube which is crafted from high-modulus plastic and filled with tube filling compound. The water blocking tape is wound around the central tube. Subsequently, the tubes are armored longitudinally with a corrugated steel tape. Two parallel steel wires are embedded within the outer PE jacket.
Central Loose Tube Jelly Filling
Outdoor Optical Cable For Communication Of Steel-Polyethylene Bonded Sheath With Parallel Steel Wires
Application
Long distance communication and LAN
Suitable Use In aerial
Technical Parameter
| Fiber Count | Outer Dia.(mm) | Tensile Resistance(N) | Crush Resistance(N/100m) | Min Bending Radius(mm) | Attenuation(dB/Km) | Operation Temperature(℃) | N.W(kg/km) | ||||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | 1310nm | 1550nm | ||||
| 12 | 7.6 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 58 |
Company Profile
Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, poweroptical fiber cable, submarine optical cable and special optical cable etc.Yuantong has more than 200 staffs, of which 20% are senior engineers ,30% are mid-level employees.
Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmentalmanagement, health management and TLC.
Packaging & Shipping
FAQ
1. Are you the manufacturer or trader ?
We are manufacturer.
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable;
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
7-15 days for common fiber cables, 10-20 days for your customized requirements.
5. MOQ: what is your minimum quantity?
MOQ : 10KM
6. where will you sell to ?
worldwide.
7. Payment
TT bank transfer, western union
8. Shipping & Delivery
by Sea and by air
Send your inquiry directly to us
