Mini Figure-8 Fiber Cable 1/2/4/6/8/12 Core Outdoor Aerial Communication Cable

Mini Figure-8 Fiber Cable 1/2/4/6/8/12 Core Outdoor Aerial Communication Cable

Mini Figure 8 Fiber Optic Cable

Aerial Figure 8 Fiber Optic Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ISO,ANATEL,ROSH,TLC,CCC

Model Number:

Fig-8 Fiber Cable

Contact Us

Request A Quote
Product Details
Product Name:
Mini Figure-8 Fiber Cable
Shape:
Figure-8 Shape
Structure:
Dry Structure
Fiber Count:
1-12 Core
Water Blocking System:
Filling Compound
Jacket:
PE
Color:
Black
Cable Use:
Aerial
Payment & Shipping Terms
Minimum Order Quantity
10km
Price
negotiated
Packaging Details
wooden drum plus carton box
Delivery Time
within 7 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000km per week
Product Description



1 2 4 6 8 12 Core Single Mode Fiber Optic Cable Figure 8 Self-Supporting Fiber Optical Mini Figure-8 Fiber Cable

Mini figure-8 Fiber Cable is a type of optical fiber cable. It is characterized by its small and compact figure-8 shape. This cable is specifically designed for applications where space is limited or there is a need for a more flexible and manageable cable solution. It is commonly used in various fields such as telecommunications, data centers, and fiber optic communication systems. The Mini figure-8 Fiber Cable is capable of transmitting high-speed data and signals with low loss and high reliability. It offers excellent performance in terms of signal integrity and bandwidth. Due to its unique design and size, it provides easier installation and handling compared to some other types of fiber cables. It can be routed and connected with greater flexibility, making it suitable for complex and confined environments.

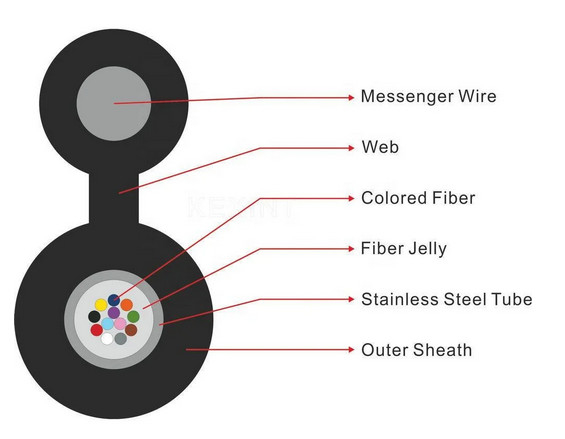

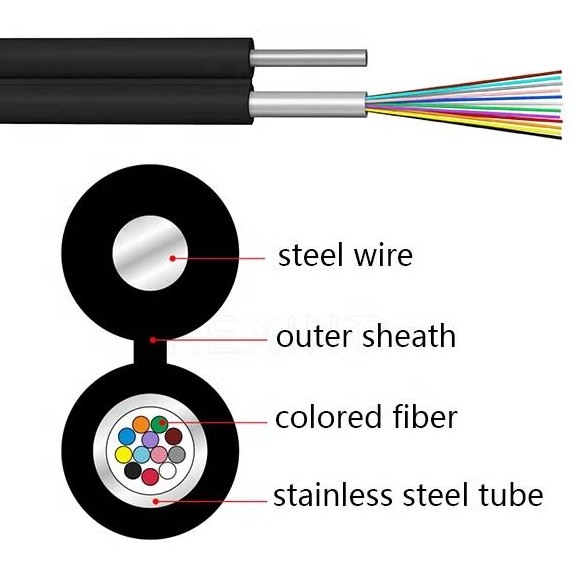

Features

  • “8” Shape Optical Cable
  • Central Loose Tube Type with Jelly Filling
  • Polyethylene Sheathed Outdoor Communication Cable
  • Dry Structure

Application

  • Adopted To Aerial Self-Supporting Installation
  • Access Network And Local Network In High Electromagnetic interfering Places
  • Long Distance And Local Area Network Communication

Technical Parameter

FiberCount Outer Diameter(mm) Weight(Nominal) Max.Pulling
Strength
W*H Kg/km N
1 2.8+5.5/9.3 35 1200
2 2.8+5.5/9.3 35 1200
4 2.8+5.5/9.3 35 1200
6 2.8+5.5/9.3 35 1200
8 2.8+5.5/9.3 36 1200
12 2.8+5.5/9.3 36 1200
