4 Cores Indoor FTTH Drop Cable GJXH/GJXFH Bow-Type Steel/FRP Strength member

4 Cores Indoor FTTH Drop Cable GJXH/GJXFH Bow-Type Steel/FRP Strength member

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ISO,ANATEL,ROSH,TLC,CCC

Model Number:

GJXH/GJXFH 4 fibers

Contact Us

Request A Quote
Product Details
Application:
Indoor
Fiber Count:
4 Fibers
Fiber Type:
Single-mode G.657A1
Strengtg Member:
FRP/Steel
Cable Jacket:
LSZH
Cable Structure:
Bow Shape
Cable Color:
Black
OEM:
Supported
Payment & Shipping Terms
Minimum Order Quantity
10km
Price
negotiated
Packaging Details
wooden drum plus carton box
Delivery Time
within 7 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000km per week
Product Description

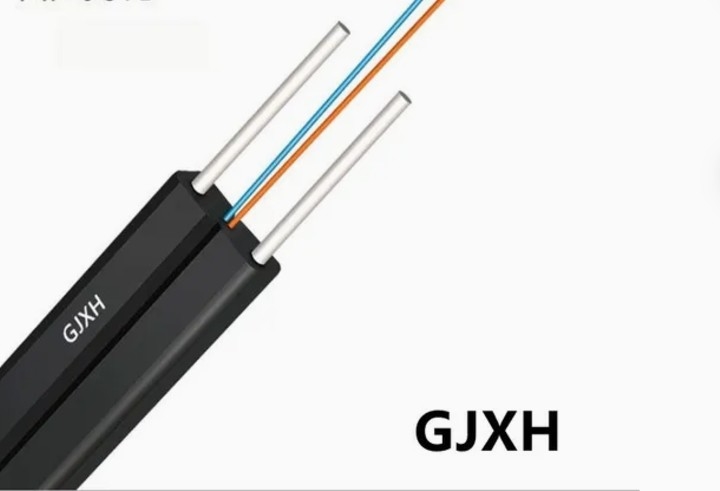

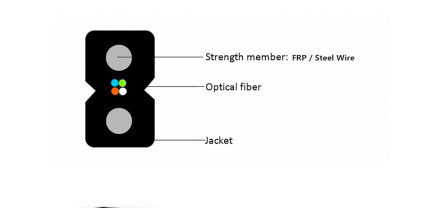

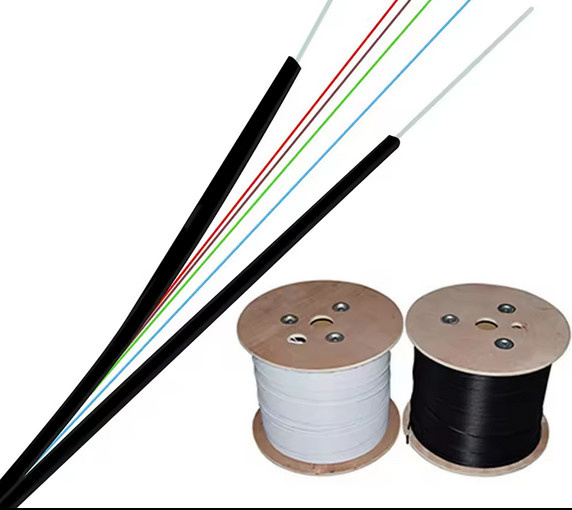

It is appropriate for indoor FTTH usages. The dimension is 2X3.0mm in a bow-shaped style, with FRP or Steel strength members in each specification, an LSZH sheath, and 4 cores of G.657A optical fibers.In the FTTH application, it possesses low cost and good adaptability, fulfilling the design and connection demands for all types of drop cables. It exhibits excellent anti-bending capability, supports dense cabling, has low bending loss at a small bending radius, and enjoys high mechanical reliability, and is convenient to install and distribute.

  • The process of coloring the high-quality fiber with various vivid and stable colors.
  • The unique and beautiful bow shape that is gracefully curved and eye-catching.
  • The FRP/STEEL which is utilized as an important strength member to enhance the overall stability and durability.
  • The excellent performance outer sheath that possesses outstanding characteristics such as high strength, good flexibility, and resistance to wear and tear.

Application

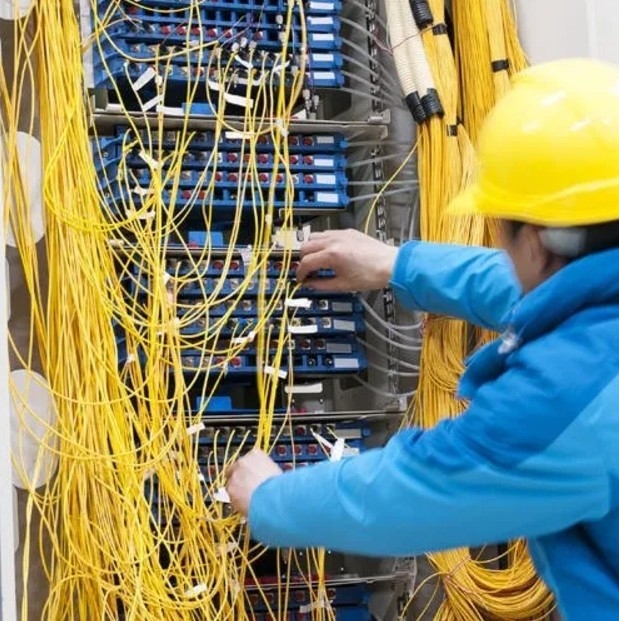

  • 1. Specifically designed for indoor use, providing convenience and functionality within indoor spaces. 2. Ideally suitable for use in the aerial environment, meeting the specific requirements and challenges presented in the air.1. Specifically designed for indoor use, providing convenience and functionality within indoor spaces. 2. Ideally suitable for use in the aerial environment, meeting the specific requirements and challenges presented in the air.Specifically designed for indoor use, providing convenience and functionality within indoor spaces.

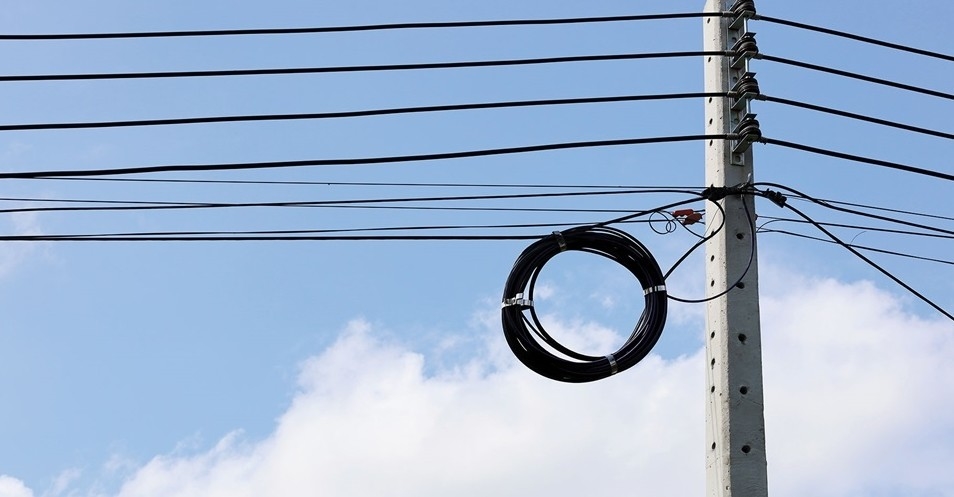

  • Ideally suitable for use in the aerial environment, meeting the specific requirements and challenges presented in the air.

Technical Parameter

Fiber Count GJXH-4 GJXFH-4
Outer Dia.(mm) 2.0*3.0±0.1 2.0*3.0±0.1
Tesile Resistance(N) Long Term 60 40
short Term 120 80
Crush Resistance(N/100m) Long Term 1000 500
Short Term 2200 1000
Mini Bending Radius(mm) Dynamic 40 40
Static 20 20
Attenuation(dB/km) 1310nm 0.4 0.4
1550nm 0.3 0.3
Operation Temperature() -40-+60 -40-+60
N.W(kg/km) 10.5 9.0



Factory View

4 Cores Indoor FTTH Drop Cable GJXH/GJXFH Bow-Type  Steel/FRP Strength member 0

4 Cores Indoor FTTH Drop Cable GJXH/GJXFH Bow-Type  Steel/FRP Strength member 1


Certificates

4 Cores Indoor FTTH Drop Cable GJXH/GJXFH Bow-Type  Steel/FRP Strength member 2



FAQ

1.Are you the actual manufacturer?

Yes, we are the actual manufacturer.

2.Can you take on a small order?

Yes, a small order is feasible. We support the new projects of our customers as we understand that business often commences with small orders.

3.What is your delivery duration?

Normally within 7 working days.

4.What is your payment approach?

T/T, L/C, and Western Union.

5.Can you offer customized products and logos?

Yes. We offer OEM&ODM services. You can send us your drawing.

6.Can you provide the form of your cable test value?

Yes. We can supply it upon the completion of production if you so request.



Anticipate this as a great start for our collaboration!
