Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ISO,ANATEL,ROSH,TLC,CCC
Model Number:
GYTA
Contact Us

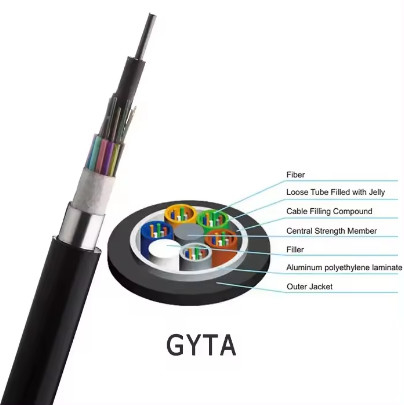

Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable.The 250um bare fibers are placed in a loose tube fabricated from a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, is positioned at the center of the core as a metallic strength component. The tubes and fillers are stranded around the strength component to form a compact and circular cable core. Subsequently, the cable is finalized with a PE sheath.
GYTA Armored Loose Tube Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.
Application
Technical Parameter
| Fiber Count | Outer Dia.(mm) | Tensile Resistance(N) | Crush Resistance(N/100m) | Mini Bending Radius(mm) | Attenuation(dB/km) | Operation Temperature(℃) | N.W(kg/km) | ||||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | 1310nm | 1550nm | ||||
| 12 | 8.4 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 75 |
| 24 | 8.4 |
600 |
1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 75 |
| 36 | 8.7 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 85 |
| 48 | 9.2 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 85 |
| 72 | 9.8 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 90 |
| 96 | 11.3 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 140 |
| 144 | 13.8 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 190 |
Company Profile
Company Qualification
Exhibition Photos
Packaging & Shipping
FAQ
1. who are we?
We are based in Chendu, China, sell to Central America,South America,Mid East.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.what can you buy from us?
Fiber Splicing Box,PLC Splitter,Fiber Distribution Box, Fiber Optic Cable.
4. why should you buy from us not from other suppliers?
We are a high-tech enterprise, focused as a "Reliable Partner" to offer solution and suitable products to Operators and Partners.
OEM and ODM order highly welcome !
