Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ISO,ANATEL,ROSH,TLC,CCC
Model Number:
GYTA04
Contact Us

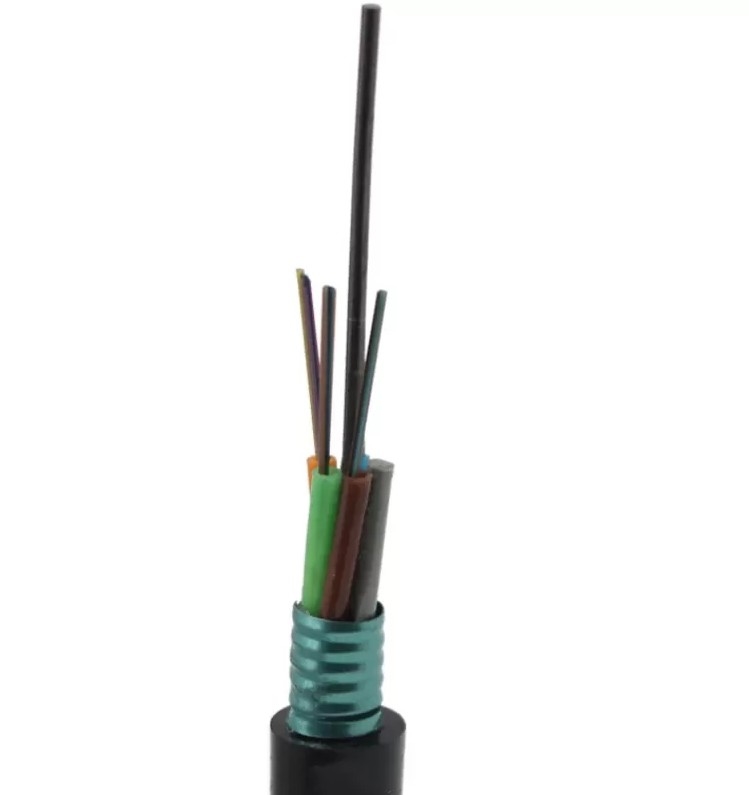

2-144 Core GYTA04 Anti-termite and Anti-Rodent Outdoor Fiber Optic Cable Steel Wire Strength Member Aluminium PE Sheath

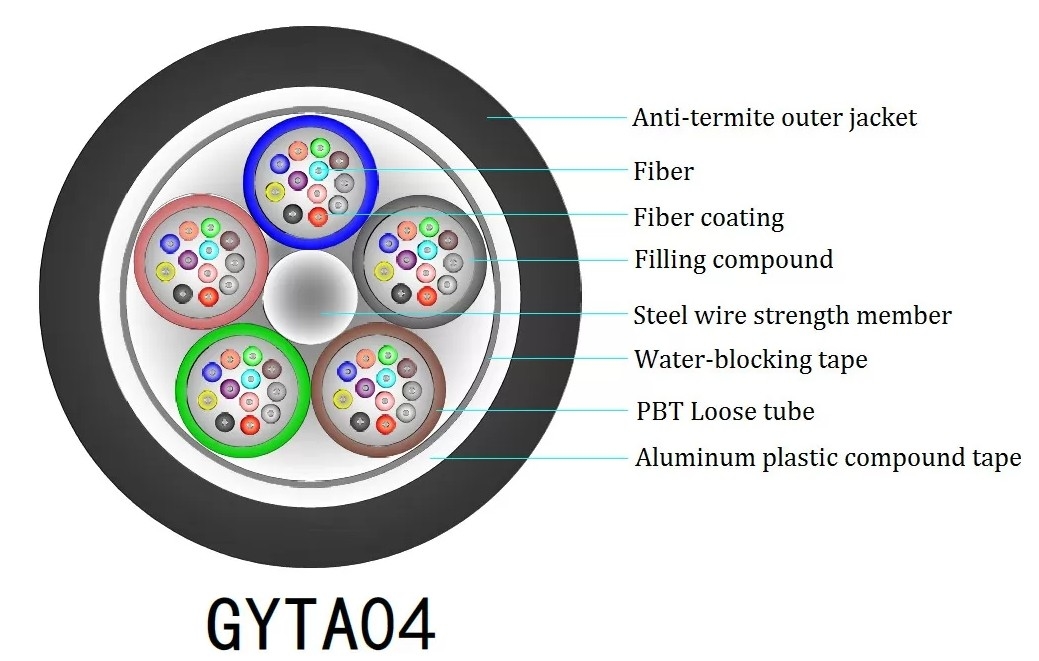

GYTA04 single-armored cables feature stranded loose tube filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Application
The Anti-Rodent Cable is suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.
Technical Parameter
Fiber Count | Outer Dia.(mm) | Tensile Resistance (N) |
Crush Resistance(N/100m) | Mini Bending Radius(mm) |
Attenuation (db/KM) |
Operation Temperature(℃) |
N.W(kg/km) | ||||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | 1310nm | 1550nm | ||||
2-30 | 9.3 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+65 | 75 |
32-36 | 9.6 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+65 | 85 |
38-60 | 9.9 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+65 | 90 |
62-72 | 10.7 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+65 | 110 |
74-84 | 11.6 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+65 | 125 |
86-96 | 12.1 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+65 | 140 |
98-108 | 12.9 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+65 | 150 |
110-120 | 13.5 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+65 | 165 |
122-132 | 13.9 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+65 | 185 |
134-144 | 14.7 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+65 | 195 |
Company Profile
Company Qualification
Exhibition Photos
Packaging & Shipping
FAQ
1. Are you manufacturer or trading company?
We are factory in Chengdu.
2.What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.
3.Can I get a sample?
Yes, we provide sample service.
4.What about Payment?
T/T,L/C,Western Union and PayPal.
5.What's delivery time?
Mass production time needs 1-2 weeks.
6.Can you supply customized productsand logo?
Yes, we supply OEM&ODM service.
