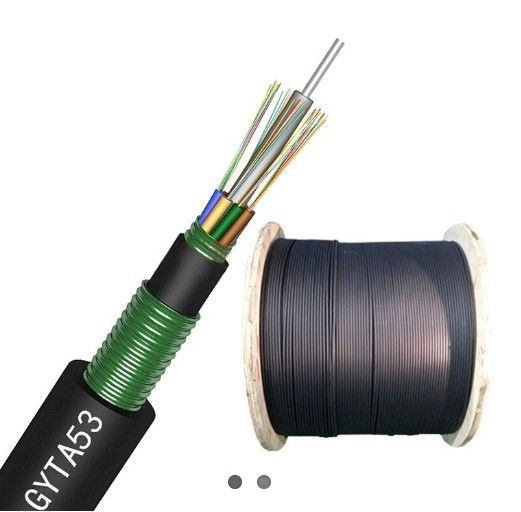

Direct Buried Fiber Optic Cable for Direct Burial Applications
Product Overview
This direct buried fiber optic cable features a loose tube design with Polybutylene Terephthalate (PBT) material tubes that protect fiber strands from moisture, water, and harsh environmental elements. Engineered to meet international standards (HS code: 8544700000), this cable is available in 2 to 144 core configurations to suit diverse network requirements.
Key Features
- Product Name: Direct Buried Fiber Optic Cable
- Sheath Material: PE
- Core Options: 2-144 Cores
- Weight Range: 145-365kg/km
- Installation Method: Direct Buried
- Jacket Material: PE/LSZH/HDPE
Our direct buried fiber optic cable provides a durable and reliable solution for buried fiber optic cable installation, designed for direct laying applications.
Technical Specifications
| Parameter |
Specification |
| Connection Structure |
Steel Wire As Strength Member |
| Structure |
SZ Stranded Loose Tube |
| Cable Diameter |
12.2-19.7mm |
| Loose Tube |
PBT Loose Tube |
| Storage Temperature |
-20~+70℃ |
| Installation Method |
Direct Buried |
| HS Code |
8544700000 |
| Cable Use |
Aerial, Duct And Direct Buried |
| Return Loss |
≥50dB |
| Crush Resistance |
1000-3000N/100mm |
Applications & Benefits

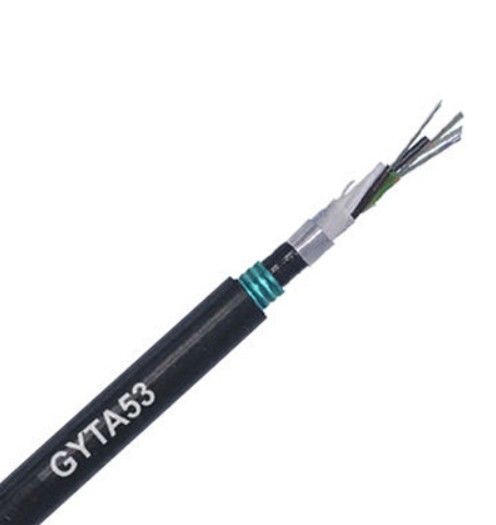

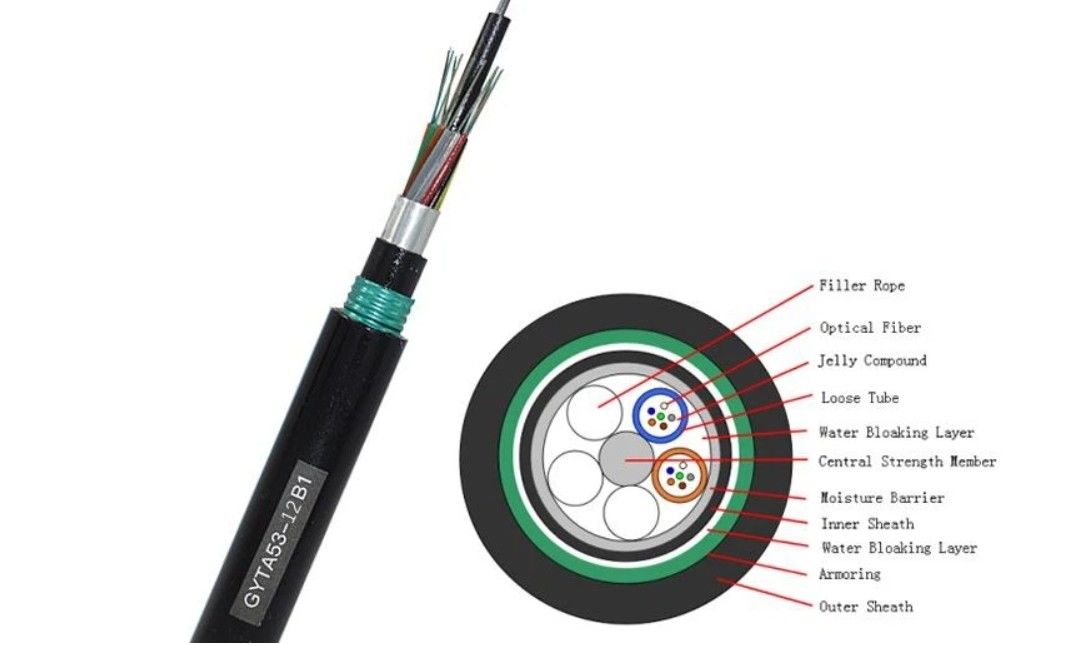

The GYTA53 model is designed for harsh environments where cables are exposed to moisture, chemicals, and abrasive elements. Featuring steel tape armor for physical protection and PE sheath material resistant to UV radiation, this cable is ideal for direct burial installation without requiring protective ducts.
This cable excels in long-distance communication, local area networks, and backbone networks, offering excellent signal quality with minimal loss over extended distances.
Packaging & Shipping
The direct buried fiber optic cable is packaged in sturdy, weather-resistant boxes with neat coiling and secure ties to prevent damage during transit. Shipping is handled through reliable carriers with tracking provided, and delivery times vary based on destination and shipping method.
Frequently Asked Questions
Q1: What is the brand name of the Direct Buried Fiber Optic Cable?
A1: The brand name is YTTX.
Q2: What is the model number of the Direct Buried Fiber Optic Cable?
A2: The model number is GYTA53.
Q3: Where is the Direct Buried Fiber Optic Cable manufactured?
A3: Manufactured in China.
Q4: What certifications does the Direct Buried Fiber Optic Cable have?
A4: Certified with CE, ROHS, and ISO9001.
Q5: What is the minimum order quantity?
A5: Minimum order quantity is 10km.
Q6: What is the price of the Direct Buried Fiber Optic Cable?
A6: Price is negotiated based on quantity.
Q7: What is the packaging of the Direct Buried Fiber Optic Cable?

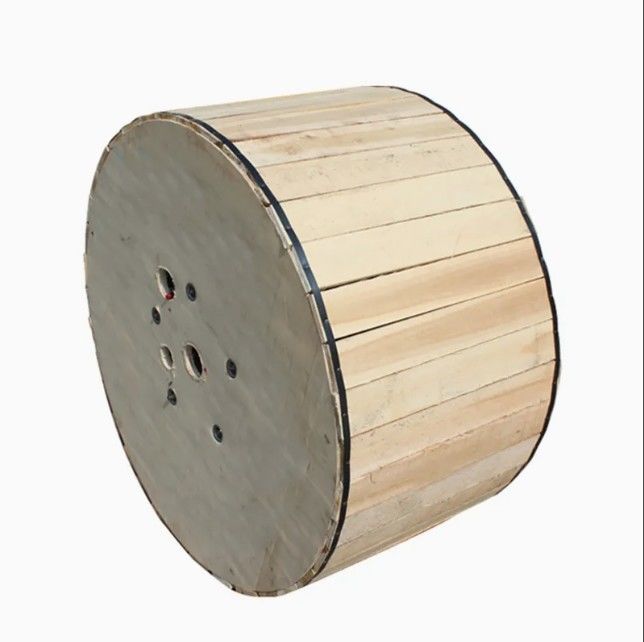

A7: Packaged in wooden/plastic drums.
Q8: What is the delivery time?
A8: Delivery time depends on the amount ordered.
Q9: What are the payment terms?
A9: Payment terms are T/T.
Q10: What is the supply ability?
A10: Supply ability is 1000km/5 days.
