Name: Black 4-core FTTH Drop Cable with Steel Wire Strength Member for Aerial Installation
Brand: Sichuan Yuantong Communication Co., Ltd.
SKU: 4 fiber GJYXCH/GJYXFCH
Price: 46.01 USD
Availability: InStock

Home > Products > FTTH Fiber Drop Cable >

Black 4-core FTTH Drop Cable with Steel Wire Strength Member for Aerial Installation

4-core FTTH Drop Cable

Black FTTH Drop Cable

Steel Wire Strength Member FTTH Drop Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ISO,ANATEL,ROSH,TLC,CCC

Model Number:

4 fiber GJYXCH/GJYXFCH

Request A Quote

Product Details

Product Name:

Outdoor FTTH Drop Cable

Fiber Mode:

Single-mode

Fiber Count:

Cable Strength Member:

Steel Wire

Outer Jacket Color:

Black

Operation Temperature:

-40℃ To +60℃

Tensile Strength:

≥300N

Cable Diameter:

2.0*5.0mm

Cable Length:

Customizable

Oem:

Supported

Payment & Shipping Terms

Minimum Order Quantity

10km

Price

negotiated

Packaging Details

wooden drum plus carton box

Delivery Time

within 7 working days

Payment Terms

L/C,T/T,Western Union

Supply Ability

1000km per week

Black 4-core FTTH Drop Cable with Steel Wire Strength Member for Aerial Installation

Get Best Price

GJXH 2 Cores LSZH Sheath Bow Shape FTTH Fiber Drop Cable for Indoor Wiring

Get Best Price

Video

Outdoor UV Resistant FTTH Fiber Drop Cable with Metal Reinforcement and Flat Butterfly Design

Get Best Price

4 Core Frp Flat Round Loose Tube FTTH Fiber Drop Cable Outdoor Use

Get Best Price

+86 159 2815 7093

Sales03@chinafibercable.com

86-28-85050348

Contact Now

Product Description

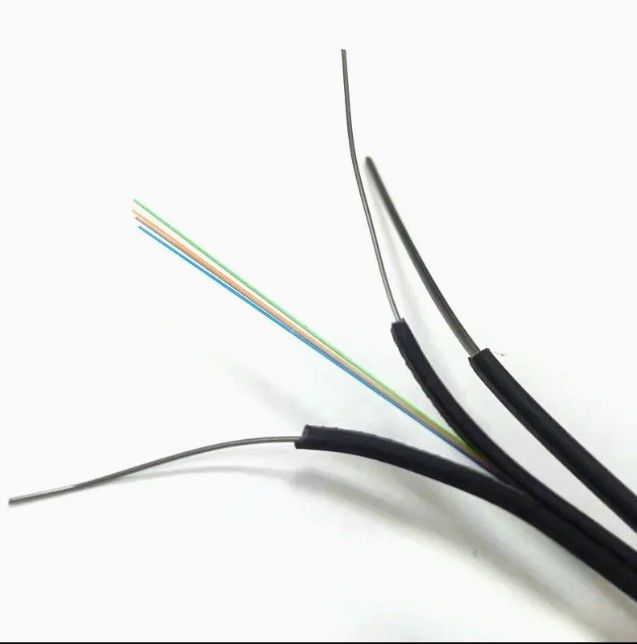

Black Messenger Wire FTTH Optical Cable - 4-Core

Professional communication construction cable designed for Fiber-to-the-Home (FTTH) projects with reliable aerial installation capabilities.

Product Overview

The Self-supporting FTTH drop cable features four single-mode fibers precisely integrated within a robust cable structure. Protected by a dielectric strength member for reliable reinforcement, this cable is engineered for direct aerial installation in FTTH projects, ensuring stable signal transmission and seamless connectivity.

Key Features

Coloring Fiber for easy identification
Bow Shape design for optimal performance
FRP/STEEL Strength Member for enhanced durability
High-performance Outer Sheath for environmental protection

Applications

Indoor and Outdoor Use

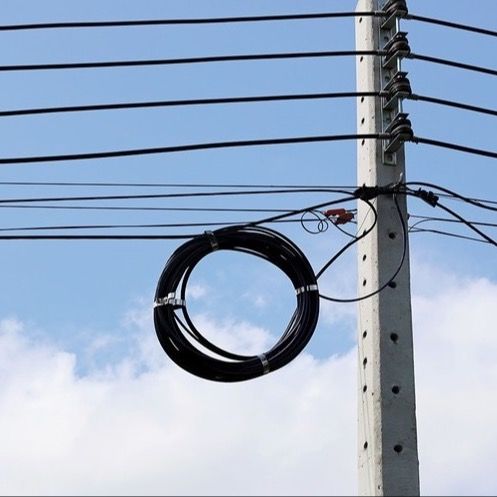

Aerial Installation

Technical Specifications

Parameter	GJYXCH-4	GJYXFCH-4
Fiber Count	4	4
Outer Diameter (mm)	2.0*5.0±0.1	2.0*5.0±0.1
Tensile Resistance (N) - Long Term	300	300
Tensile Resistance (N) - Short Term	600	600
Crush Resistance (N/100m) - Long Term	1000	1000
Crush Resistance (N/100m) - Short Term	2200	2200
Minimum Bending Radius (mm) - Dynamic	40	40
Minimum Bending Radius (mm) - Static	20	20
Attenuation (dB/km) - 1310nm	≤0.4	≤0.4
Attenuation (dB/km) - 1550nm	≤0.3	≤0.3
Operation Temperature (°C)	-40℃ to +60℃	-40℃ to +60℃
Net Weight (kg/km)	20.5	18.6

Manufacturer Profile

Sichuan Yuantong Communication Co., Ltd is a national key high-tech enterprise located in Chengdu's Southwest Airport Economic Development Zone. We specialize in research, development, and manufacturing of various fiber optic cables including indoor/outdoor cables, power optical fiber cables, submarine optical cables, and special optical cables.
