Product Name: Outdoor Single core Metallic Butterfly Drop Cable

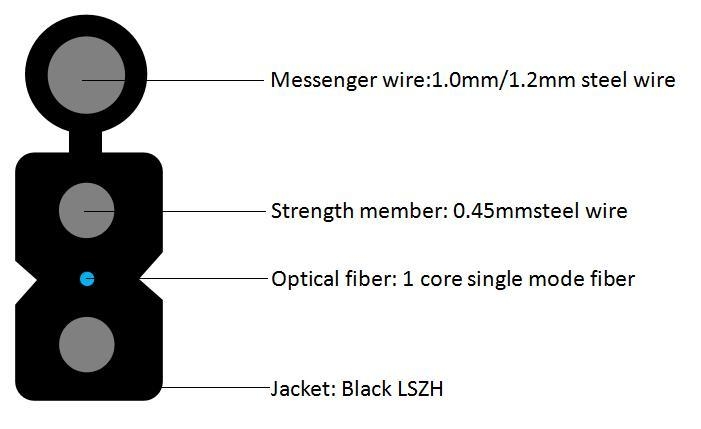

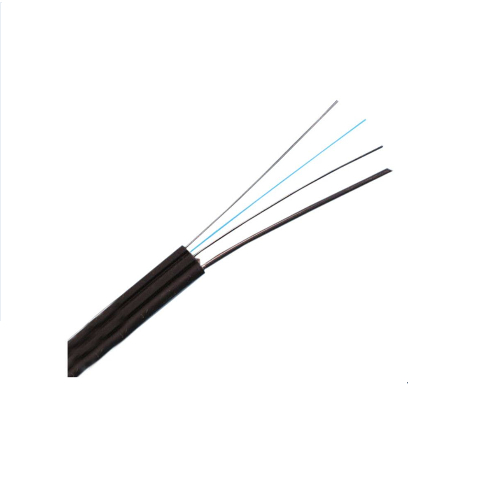

-Basic structure: Includes 1 optical fiber (usually G.657A1/A2 bending insensitive type), outer layer equipped with metal reinforcement (such as steel wire), overall flat butterfly design, with weather resistant sheath (such as PE material).
Key advantages
1. Outdoor durability:
The sheath material is UV resistant, resistant to high and low temperatures (such as -40 ℃ to+70 ℃), corrosion-resistant, and suitable for complex outdoor environments such as outdoor overhead, pipelines, or direct burial.
2. Structural stability:
Metal reinforcement enhances tensile and lateral compression resistance, reducing the risk of fiber optic damage during installation or use.
3. Efficient deployment:
The butterfly shaped flat design is lightweight and flexible, easy to bend (with a small bending radius, such as static ≥ 10mm, dynamic ≥ 30mm), suitable for short distance introduction (such as from the fiber optic splitter box to the user end), saving installation time and cost.
4. Fiber optic protection:
Single core design focuses on core transmission requirements, with the fiber tightly wrapped between the sheath and reinforcement, effectively isolating external interference and ensuring stable transmission of optical signals.
Applicable scenarios
-Last mile access of outdoor fiber to the home (FTTH)
-Introduction of outdoor short distance optical signals in parks, villas, etc
-Outdoor wiring scenarios that require durability and installation convenience
Further emphasis can be placed on corresponding advantages based on specific customer needs, such as environmental conditions, transmission distance, etc., to make the introduction more targeted.
