Name: Butterfly shaped introduction of optical cable GJYXFCH-1B6a2
Brand: Sichuan Yuantong Communication Co., Ltd.
SKU: GJYXFCH-1B6a2
Price: 35.00 USD
Availability: InStock

Home > products > Outdoor FTTH Drop Cable >

Butterfly shaped introduction of optical cable GJYXFCH-1B6a2

Place of Origin:

China

Brand Name:

YTTX

Certification:

ISO 9001 ISO14001 ISO45001

Model Number:

GJYXFCH-1B6a2

Request A Quote

Product Details

Payment & Shipping Terms

Minimum Order Quantity

10KM

Packaging Details

Carton+pallet

Delivery Time

2-3day

Payment Terms

T/T

Supply Ability

500KM/day

G657A2 Outdoor FTTH Drop Cable FRP Messenger Multiple Weather Resistance Fiber

Get Best Price

Video

Blue Outdoor Drop Cable Patch Cable for FTTH Network Installation

Get Best Price

LSZH Sheath FTTH Drop Fiber Optic Cable Seamless and Stable Network Solution

Get Best Price

LSZH Sheath FTTH Drop Cable Patch Cable In Black For Fast And Stable Data Transfer

Get Best Price

+86 159 2815 7093

Sales03@chinafibercable.com

86-28-85050348

Contact Now

Product Description

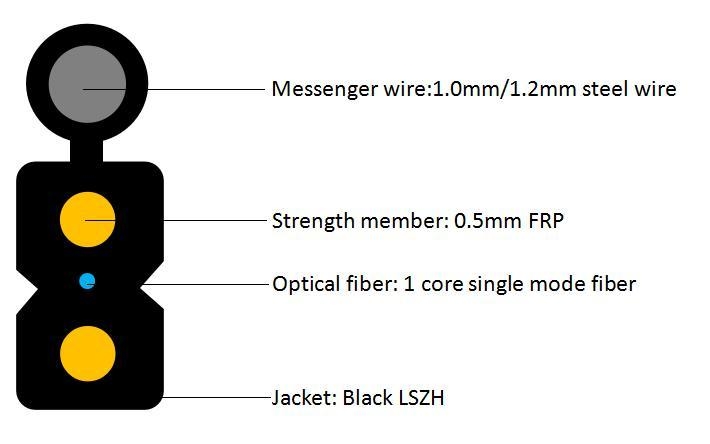

The GJYXFCH butterfly shaped introduced optical cable is mainly composed of colored optical fibers, non-metallic reinforcements, steel wire reinforcements, and sheath layers, as follows:

-Colored fiber optic: located at the center of the optical cable, it is the transmission medium for optical signals, usually using special bending resistant fibers such as G.657 fiber, which can provide larger bandwidth and enhance network transmission characteristics.

-Non metallic reinforcement: usually consisting of two parallel glass fiber reinforced plastics (FRP) located on both sides of the optical fiber, which can provide the fiber optic cable with good compressive performance and protect it from external compression damage.

-Steel wire reinforcement: On the outer side of the optical cable, it is made of steel wire or steel wire rope material and serves as a key part of the self-supporting structure. It is used to bear most of the tension during installation, making the optical cable suitable for outdoor overhead introduction and other scenarios.

-Sheath layer: It is usually made of low smoke and halogen-free materials, which have the characteristics of flame retardancy and environmental protection. It can protect the internal optical fibers and reinforcement components from external environmental factors (such as moisture, mechanical damage, etc.), and the groove design is easy to peel off, making it convenient for splicing operations.
