Name: Outdoor FTTH Drop Cable with G.657 Fiber Non-Metallic Reinforcement and LSZH Sheath for Butterfly Optical Cable GJYXFCH-1B6a2
Brand: Sichuan Yuantong Communication Co., Ltd.
SKU: GJYXFCH-1B6a2
Price: 35.00 USD
Availability: InStock

Home > Products > Outdoor FTTH Drop Cable >

Outdoor FTTH Drop Cable with G.657 Fiber Non-Metallic Reinforcement and LSZH Sheath for Butterfly Optical Cable GJYXFCH-1B6a2

G.657 Fiber Outdoor FTTH Drop Cable

Non-Metallic Reinforcement Butterfly Optical Cable

LSZH Sheath GJYXFCH-1B6a2 Cable

Place of Origin:

China

Brand Name:

YTTX

Certification:

ISO 9001 ISO14001 ISO45001

Model Number:

GJYXFCH-1B6a2

Request A Quote

Product Details

Payment & Shipping Terms

Minimum Order Quantity

10KM

Packaging Details

Carton+pallet

Delivery Time

2-3day

Payment Terms

T/T

Supply Ability

500KM/day

Self Supporting Butterfly Optical Cable with Metal Reinforcement LSZH Sheath and Galvanized Steel Rope for FTTH Drop Cable

Get Best Price

Video

G657A2 Outdoor FTTH Drop Cable FRP Messenger Multiple Weather Resistance Fiber

Get Best Price

Video

Blue Outdoor Drop Cable Patch Cable for FTTH Network Installation

Get Best Price

LSZH Sheath FTTH Drop Fiber Optic Cable Seamless and Stable Network Solution

Get Best Price

+86 159 2815 7093

Sales03@chinafibercable.com

86-28-85050348

Contact Now

Product Description

Butterfly Shaped Introduction Optical Cable GJYXFCH-1B6a2

The GJYXFCH butterfly shaped introduction optical cable is engineered for reliable performance in outdoor overhead installation scenarios, featuring a robust construction designed to withstand environmental challenges while ensuring optimal signal transmission.

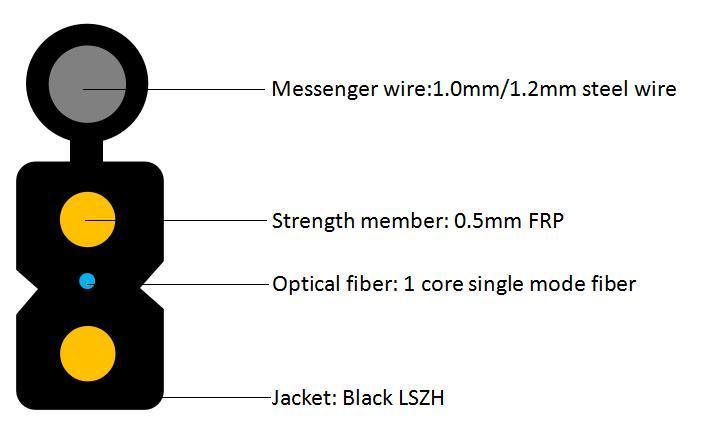

Cable Construction & Components

Colored Optical Fibers

Located at the center of the optical cable, these serve as the transmission medium for optical signals. Utilizes specialized bending-resistant G.657 fiber technology to provide enhanced bandwidth and superior network transmission characteristics.

Non-Metallic Reinforcement

Comprising two parallel glass fiber reinforced plastics (FRP) positioned on both sides of the optical fiber, delivering excellent compressive performance and protection against external compression damage.

Steel Wire Reinforcement

Located on the outer side of the optical cable, this critical self-supporting structure component is manufactured from steel wire or steel wire rope material. Designed to bear installation tension, making it ideal for outdoor overhead introduction applications.

Protective Sheath Layer

Constructed from low smoke, halogen-free materials with flame-retardant and environmentally friendly properties. Provides comprehensive protection against moisture, mechanical damage, and other environmental factors. Features an easy-to-peel groove design for simplified splicing operations.

Key Specifications

Product Model	GJYXFCH-1B6a2
Fiber Type	G.657 Bend-Resistant Fiber
Reinforcement	FRP + Steel Wire
Sheath Material	Low Smoke Halogen-Free (LSZH)
Primary Application	Outdoor Overhead Introduction
Installation Type	Self-Supporting Structure
