Armored 500 Ft Fiber Optic Cable Outdoor , GYTC8S Communication Fiber Optic Cable
| Place of Origin | China |
|---|---|
| Brand Name | YUANTONG |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GYTC8S 12 Core |
| Minimum Order Quantity | 20KM |
| Price | Negotiable |
| Packaging Details | Wooden Drum |
| Delivery Time | 7 days |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 12 Core Figure-8 Steel-armored Layer Filling Loose Tube Communication Outdoor Fiber Optic Cable GYTC8S | Fiber Count | 12 Core |
|---|---|---|---|
| Fiber Type | G652D | Cable Sheath | Steel-armored HDPE |
| Cable Color | Blue Green Orange Brown | Strength Member | Metallic Strength Member |
| Cable Use | Outdoor | OEM | Supported |
| High Light | 500 ft communication fiber optic cable,GYTC8S 500 ft fiber optic cable outdoor |
||
Product Description

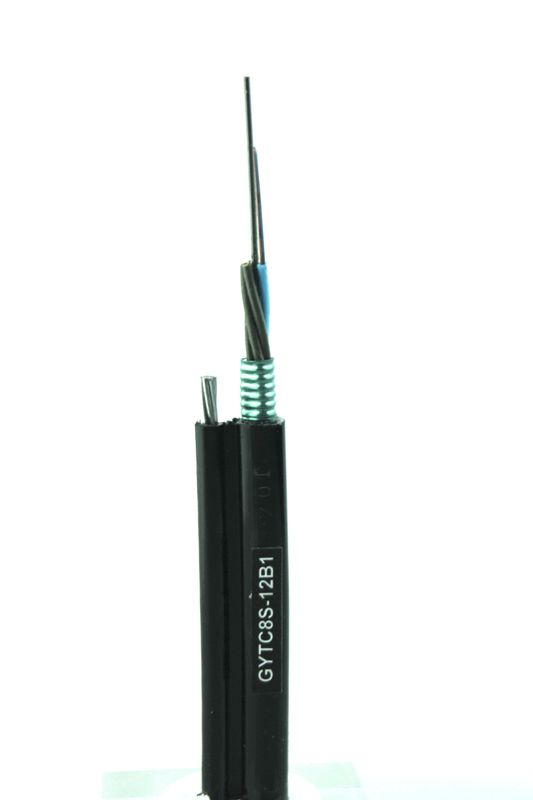

12 Core Figure-8 Steel-armored Layer Filling Loose Tube Communication Outdoor Fiber Optic Cable GYTC8S
Description:

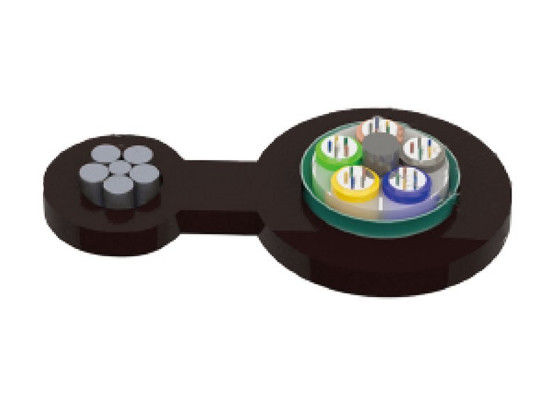

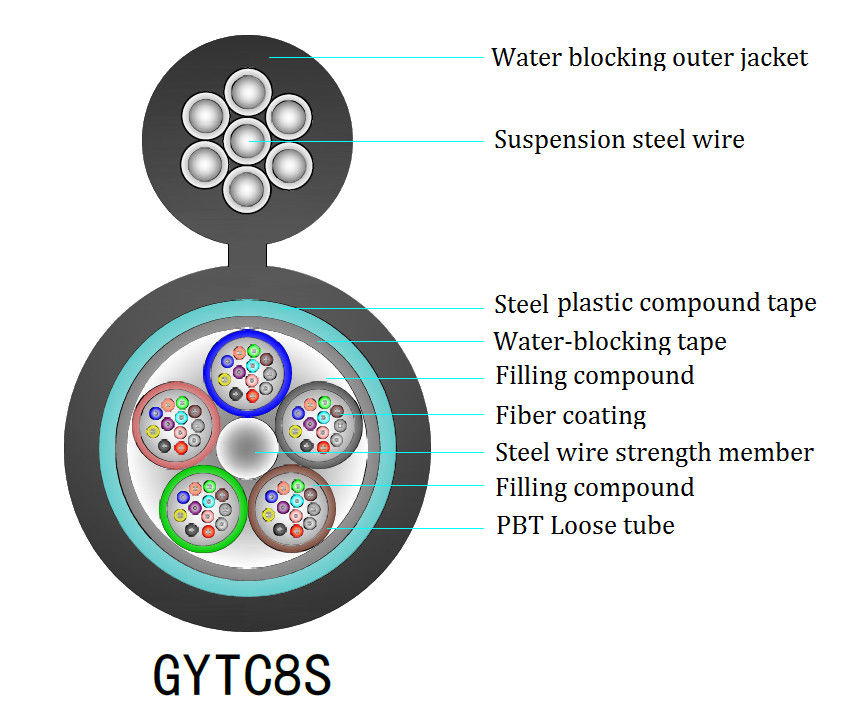

The fibers, 150um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire located in the center of core as a metallic strength member. The tubes( and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate(APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Characteristics:
High tensile strength of stranede wires meet the requirement of self-supporting and reduce installation cost
Good mechanical and temperature performance
High strength loose tube that is hydeolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable watertight:
Steel wire used as teh central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
Applications:
- Suitable for direct buried and duct installation
- Outside plant environments
| Model | Description | Applications | Tensile Strength (N) | Crush Resistance (N/100mm) | ||
| Long term | short term | Long term | short term | |||
| GYTC8S | Metallic strength member,Outdoor layer filling loose tube, fig.8 self-supporting, Steel-armored, PE sheath communication outdoor optical cable | Self-supporting overhead laying | 3000 | 8000 | 300 | 1000 |
| Bned Radius (mm) |
Working Temperature(℃) | Max. attenuation (dB/km) | fibers | OD(mm) | weight kg/km | |||
| Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm | |||
| 10 D | 20 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 | 2～144 | 9.5～18.3 | 140～320 |
| Category | Description | Specificataions | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
| Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
| Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
