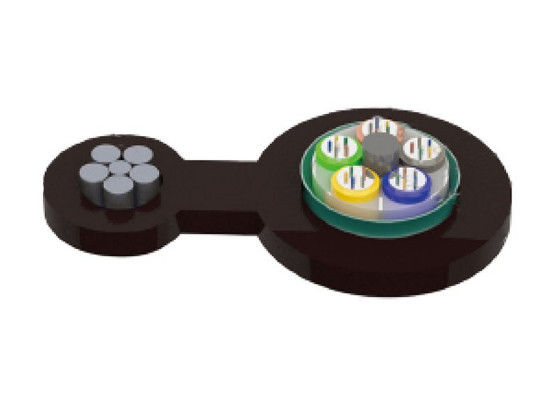

PE Sheath Duct GYTC8A Figure 8 Fiber Optic Cable For Communication

PE Sheath Duct GYTC8A Figure 8 Fiber Optic Cable For Communication

GYTC8A Figure 8 Fiber Optic Cable

duct Figure 8 Fiber Optic Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYTC8A 12 Core

Contact Us

Request A Quote
Product Details
Product Name:
12 Core Figure-8 Aluminium-armored PE Sheath Communication Outdoor Fiber Optic Cable GYTC8A
Fiber Count:
12 Core
Fiber Type:
G652D
Cable Sheath:
Aluminum PE
Cable Color:
Blue Green Orange Brown
Strength Member:
Metallic Strength Member
Cable Use:
Outdoor
OEM:
Supported
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

12 Core Figure-8 Aluminium-armored PE Sheath Communication Outdoor Fiber Optic Cable GYTC8A



Description:

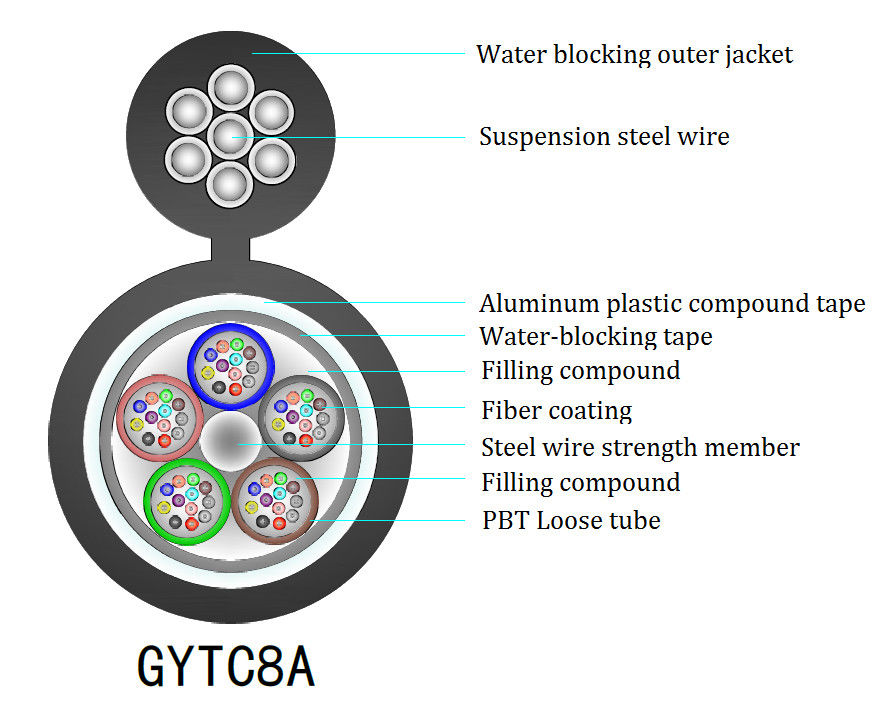

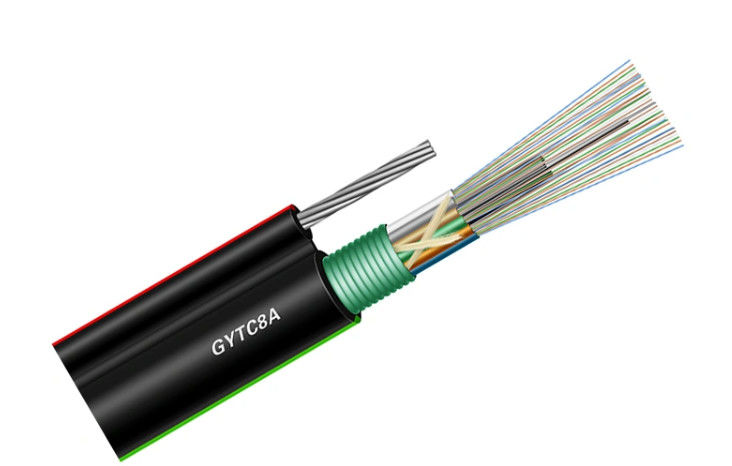

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.

Characteristics
High tensile strength of stranede wires meet the requirement of self-supporting and reduce installation cost
Good mechanical and temperature performance
High strength loose tube that is hydeolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable watertight:
Steel wire used as teh central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier

Applications:
  • Suitable for direct buried and duct installation
  • Outside plant environments
Model Description Applications Tensile Strength (N) Crush Resistance (N/100mm)
Long term short term Long term short term
GYTC8A Metallic strength member,Outdoor layer filling loose tube, fig.8 self-supporting,Aluminium-armored, PE sheath communication outdoor optical cable Self-supporting overhead laying 3000 8000 300 1000
Bned Radius
(mm)
Working Temperature(℃) Max. attenuation (dB/km) fibers OD(mm) weight kg/km
Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
10 D 20 D -40℃ +60℃ ≤0.36 ≤0.22 2~144 9.5~18.3 110~300





Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
