G652D All Dielectric Self Supporting Cable 12 Core PE Sheath

  • G652D All Dielectric Self Supporting Cable 12 Core PE Sheath
  • G652D All Dielectric Self Supporting Cable 12 Core PE Sheath
  • G652D All Dielectric Self Supporting Cable 12 Core PE Sheath
Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GYFTCF8Y 12 Core
Minimum Order Quantity 20KM
Price Negotiable

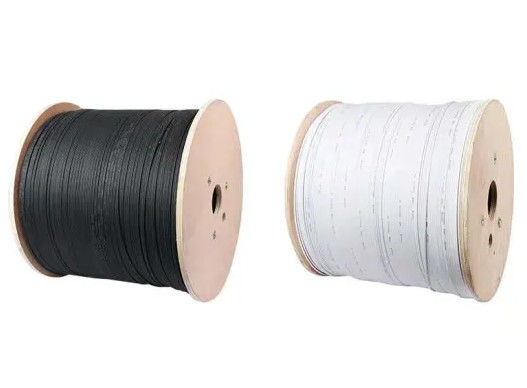

Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 12 Core All Dielectric Fig-8 Self-supporting PE Sheath Communication Outdoor Fiber Optic Cable Fiber Count 12 Core
Fiber Type G652D Cable Sheath PE Sheath
Cable Color Blue Green Orange Brown Strength Member FRP
Loose Tube PBT OEM Supported
High Light

G652D all dielectric self supporting cable

,

12Core all dielectric self supporting cable
Leave a Message
Product Description

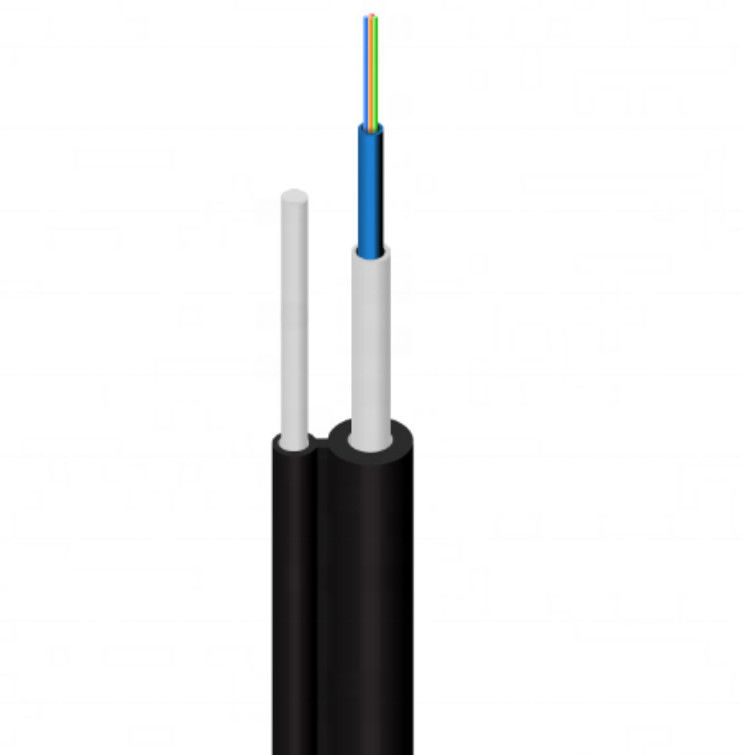

12 Core All dielectric Fig-8 Self-supporting PE Sheath Communication Outdoor Fiber Optic Cable



DESCRIPTION

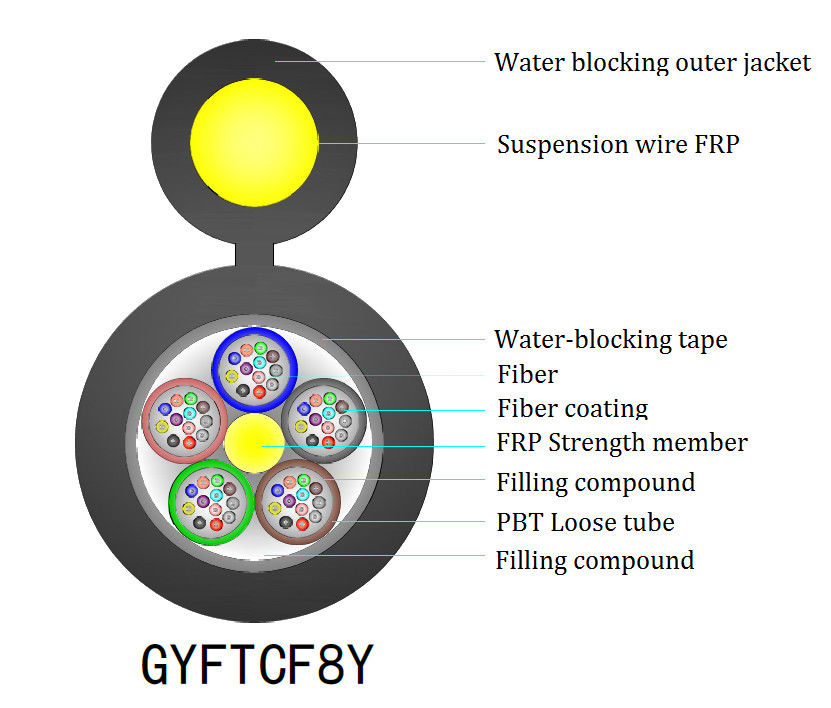

This product is to put the optical fiber into a loose tube made of high modulus material, and the loose tube is filled
with a waterproof compound. Non-metallic FRP tape on the outside of the loose tube is added with water blocking material to ensure the longitudinal water resistance of the optical cable. A non-metallic reinforcing element FRP is added to the outside of theoptical cable and then extruded into a polyethylene sheath to form a cable.

FEATURES
Full-section water-blocking structure to ensure water-proof and moisture-proof performance of the product;
Non-metallic structure, the product has good compression resistance and flexibility;
can effectively prevent lightning;
Small diameter, light weight, easy to lay;

APPLICATIONS
Aerial

Model Description Applications Tensile Strength (N) Crush Resistance (N/100mm)
Long term short term Long term short term
GYFTCF8Y Non-metallic strength member,Outdoor layer filling loose tube,All dielectric fig.8 self-supporting, PE sheath communication outdoor optical cable Self-supporting overhead laying 2000 5000 300 1000



Bned Radius
(mm)		 Working Temperature(℃) Max. attenuation (dB/km) fibers OD(mm) weight kg/km
Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
10 D 20 D -40℃ +60℃ ≤0.36 ≤0.22 2～144 9.5～18.3 65～166





Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications		 Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications		 Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N



FAQ

1. Are you the real manufacturer?

Yes. We are the real manufacturer with 18 years' history.



2. What is your fiber brand ?

Corning, SEI, YOFC, FiberHome, etc



3. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable



5. Which kind of certification you have ?

ISO9001, SGS, 3E, Anatel.



6. What is your delivery time?

Usually within 2-3 working days



7. What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



8. What is your payment way?

T/T, L/C, Western Union and Paypal.



9. Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.



10. Can you supply your cable test value form?

-Yes. After finishing production , we can supply if you ask.



11. Do your factory inspect every roll of cables?

-Yes. we factory do 100% inspection per order.
