Non Metallic Core Figure 8 Fiber Optic Cable GYFTC8A CCC Listed
|Product Name||12 Core Non-metallic Cable Core Fig-8 Aluminium-armored PE Sheath Communication Outdoor Fiber Optic Cable GYFTC8A||Fiber Count||12 Core|
|Fiber Type||G652D||Cable Sheath||Aluminum PE|
|Cable Color||Blue Green Orange Brown||Strength Member||Metallic Strength Member|
CCC Figure 8 Fiber Optic Cable,
GYFTC8A Figure 8 Fiber Optic Cable

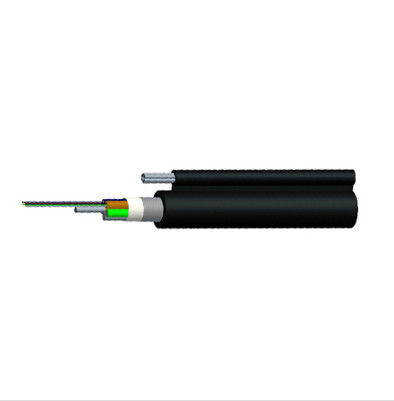

12 Core Non-metallic Cable Core Fig-8 Aluminium-armored PE Sheath Communication Outdoor Fiber Optic Cable GYFTC8A

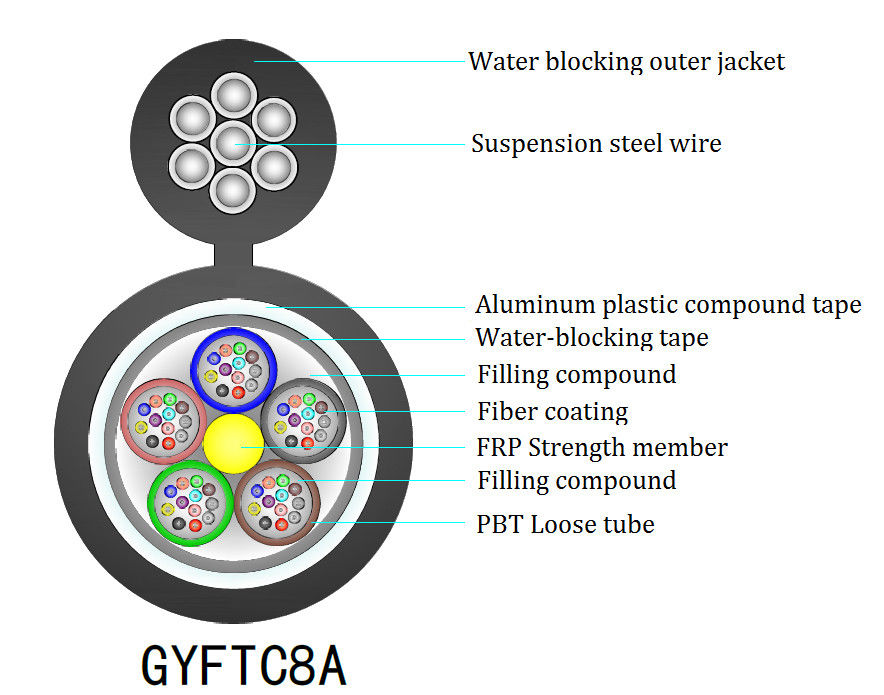

1. Central Strength Member(CSM): Glass fiber reinforced plastic rod (GFRP), coated with polyethylene when needed.
2. Filler Elements: thermoplastic rods.
4. Longitudinal Water Blocking Material: cable filling compound.
5. Loose Tube: thermoplastic material, containing optical fibers and filled with gel.
6. Moisture-proof: laminated aluminum tape.
7. Outer Sheath: black polyethylene.
8. Messenger: stranded steel wires.
Long distance communication, local communication, CATV, computer network transmission system, etc.
|Model||Description||Applications||Tensile Strength (N)||Crush Resistance (N/100mm)|
|Long term||short term||Long term||short term|
|GYFTC8A||Metallic strength member,Outdoor layer filling loose tube,Non-metallic cable core, fig.8 self-supporting, Aluminium-armored, PE sheath communication outdoor optical cable||Self-supporting overhead laying||2000||5000||300||1000|
|Working Temperature(℃)||Max. attenuation (dB/km)||fibers||OD(mm)||weight kg/km|
|10 D||20 D||-40℃||+60℃||≤0.36||≤0.22||2～144||9.5～18.3||85～186|
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
