24 Core Figure 8 Fiber Optic Cable For Outdoor Communication GYXTC8S
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||24 Core Figure-8 Steel PE Sheath Communication Outdoor Fiber Optic Cable GYXTC8S||Fiber Count||24 Core|
|Fiber Type||G652D||Cable Sheath||HDPE|
|Cable Color||Blue Green Orange Brown||Strength Member||Metallic Strength Member|
24Core Figure 8 Fiber Optic Cable,
GYXTC8S Figure 8 Fiber Optic Cable

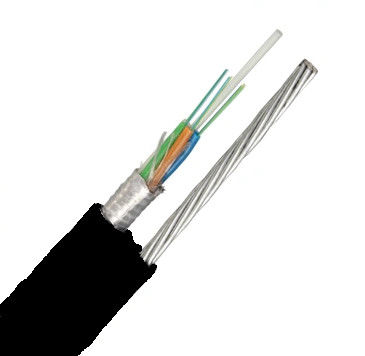

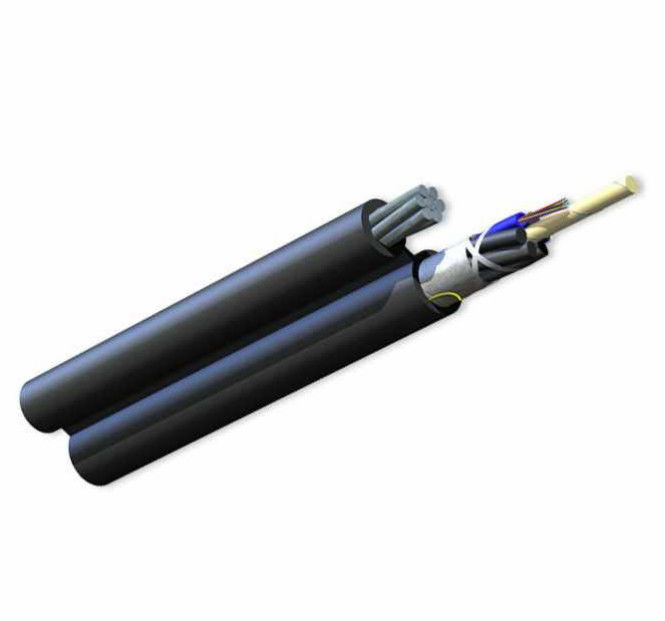

24 Core Figure-8 Steel PE sheath Communication Outdoor Fiber Optic Cable GYXTC8S

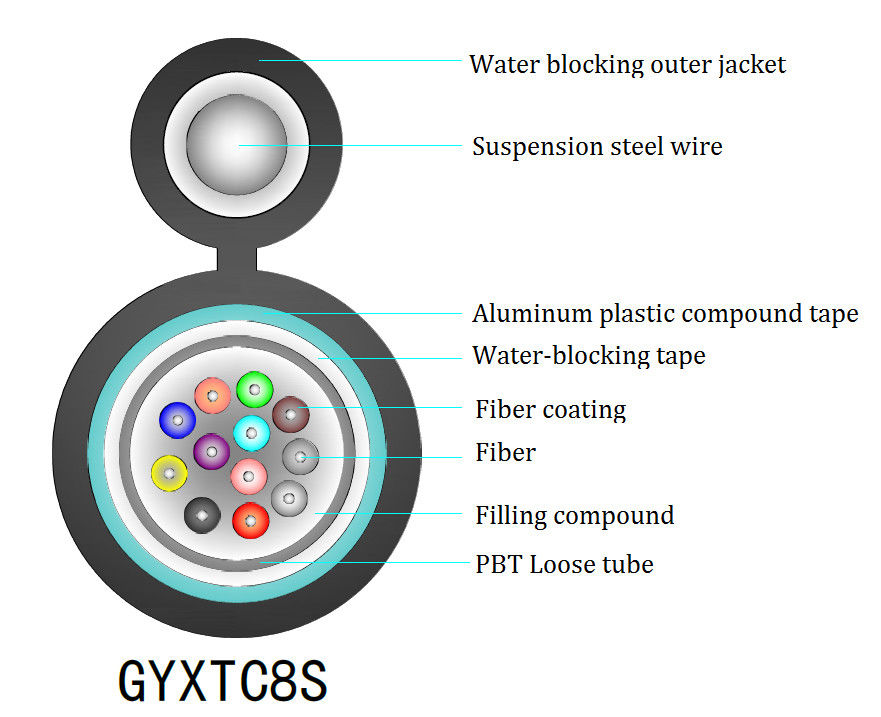

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.
- High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Suitable for direct buried and duct installation
- Outside plant environments
|Model||Description||Applications||Tensile Strength (N)||Crush Resistance (N/100mm)|
|Long term||short term||Long term||short term|
|GYXTC8S||24 Core Metallic strength member,Outdoor loose tube, fig.8 self-supporting, Steel PE sheath communication outdoor optical cable||Self-supporting overhead laying||1000||3000||300||1000|
|Working Temperature(℃)||Max. attenuation (dB/km)||fibers||OD(mm)||weight kg/km|
|10 D||20 D||-40℃||+60℃||≤0.36||≤0.22||2～12||6.5～9.5||90～110|
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
