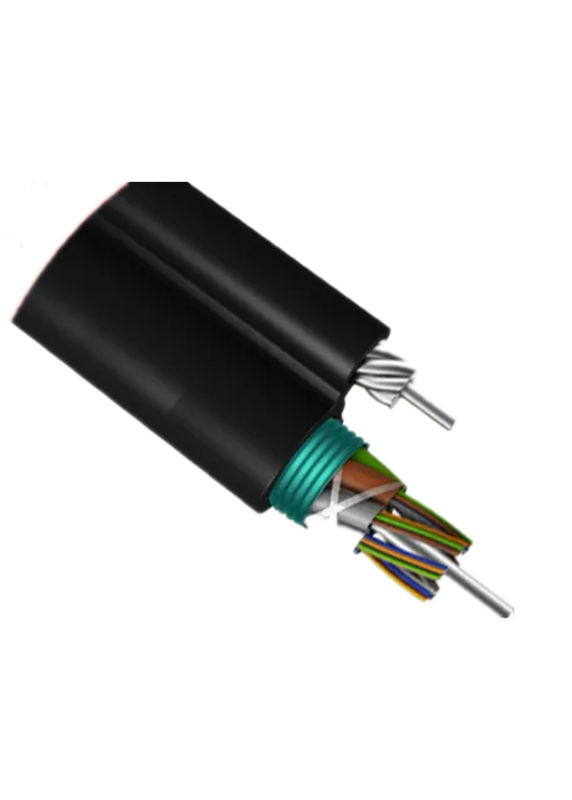

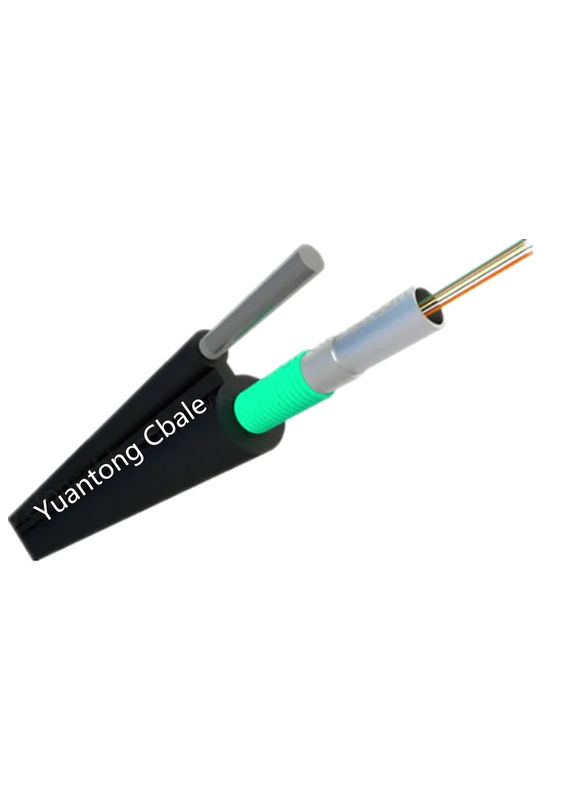

G652D Self Supporting Fiber Optic Cable , GYFTC8S ROSH 24 Fibers Figure Eight Cable

  • G652D Self Supporting Fiber Optic Cable , GYFTC8S ROSH 24 Fibers Figure Eight Cable
  • G652D Self Supporting Fiber Optic Cable , GYFTC8S ROSH 24 Fibers Figure Eight Cable
  • G652D Self Supporting Fiber Optic Cable , GYFTC8S ROSH 24 Fibers Figure Eight Cable
Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GYFTC8S 24 Core
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 24 Core Fig-8 Self-supporting Non-metallic Cable Core Steel-armored Communication Outdoor Optical Cable GYFTC8S Fiber Count 24 Core
Fiber Type G652D Cable Sheath PE Sheathed
Strength Member Metallic Strength Member Cable Use Outdoor
OEM Supported
High Light

G652D self supporting fiber optic cable

,

GYFTC8S self supporting fiber optic cable

,

ROSH 24 fibers figure eight cable
Leave a Message
Product Description

24 Core Fig-8 Self-supporting Non-metallic Cable Core Steel-armored Communication Outdoor Optical Cable GYFTC8S



Application:
self supporting Mini Figure 8 drop Fiber Optic Cable are lightweight with small diameter and designed for aerial installation with lashing method. The single loose tube design with kevlar for provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.


Design & Construction:
* single loose tube (up to 48 fibers)
* G652D optical fiber, kevlar
* Steel strand messager
* Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
* With simple structure easy to install
* PE sheath materials
* Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN



Features:
1. Up to 12 fibers The loose tube OS centrally situated with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath prociding providing property crush resistance and gun shot resistance features.

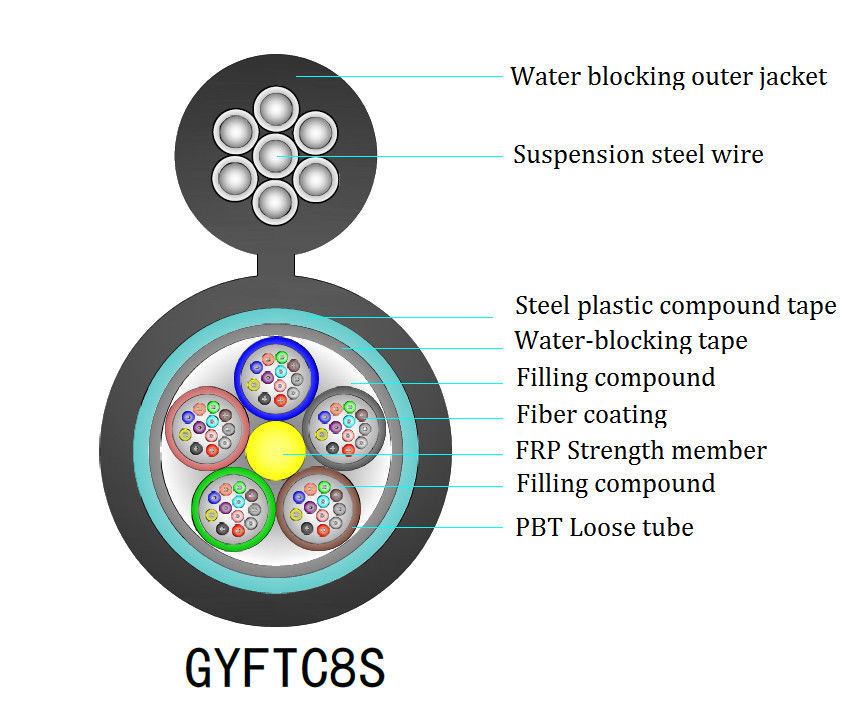

3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.



Model Description Applications Tensile Strength (N) Crush Resistance (N/100mm)
Long term short term Long term short term
GYFTC8S 24 Core Metallic strength member,Outdoor layer filling loose tube, Non-metallic cable core,fig.8 self-supporting,Steel-armored, PE sheathed communication outdoor optical cable Self-supporting overhead laying 2000 5000 300 1000



Bned Radius
(mm)		 Working Temperature(℃) Max. attenuation (dB/km) fibers OD(mm) weight kg/km
Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
10 D 20 D -40℃ +60℃ ≤0.36 ≤0.22 2～144 9.5～18.3 95～205



Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications		 Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications		 Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N









G652D Self Supporting Fiber Optic Cable , GYFTC8S ROSH 24 Fibers Figure Eight Cable 0
