Steel PE 12 Strand Fiber Optic Cable , Aerial PBT Gyxtw Fiber Optic Cable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||12 Core Central Tube Full Filling With The Parallel Steel Wire Steel-PE Outer Jacket Fiber Optic Cable GYXTW||Fiber Count||12 Core|
|Fiber Type||G652D||Cable Sheath||Steel-PE Sheath|
|Cable Color||Black||Strength Member||Metallic Strength Member|
|Cable Use||Aerial, Overhead Laying||Loose Tube||PBT|
gyxtw 12 strand fiber optic cable,
PBT gyxtw fiber optic cable,
Aerial gyxtw fiber optic cable

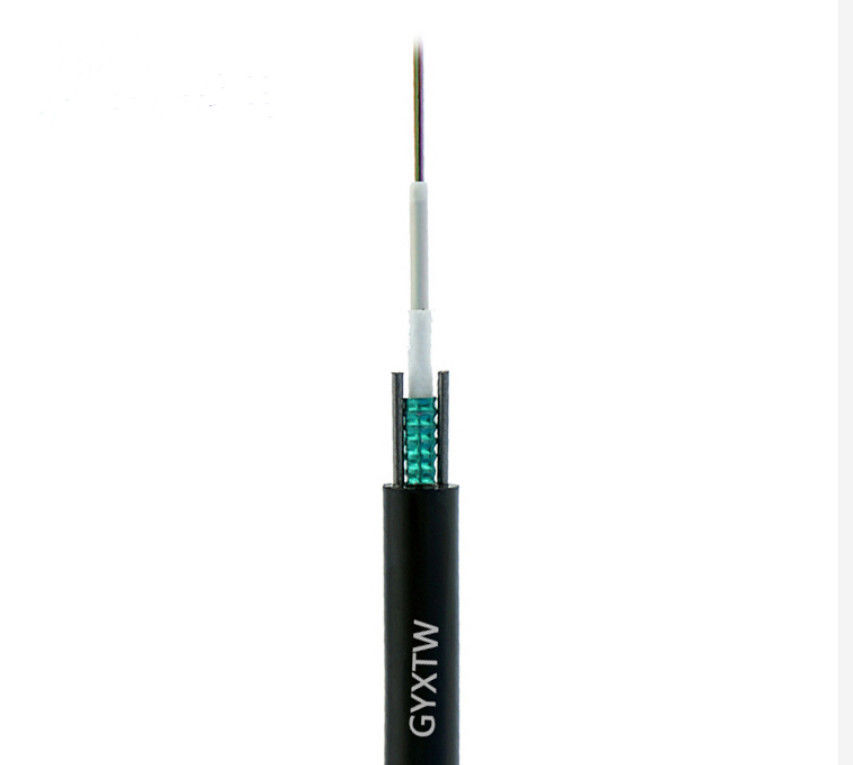

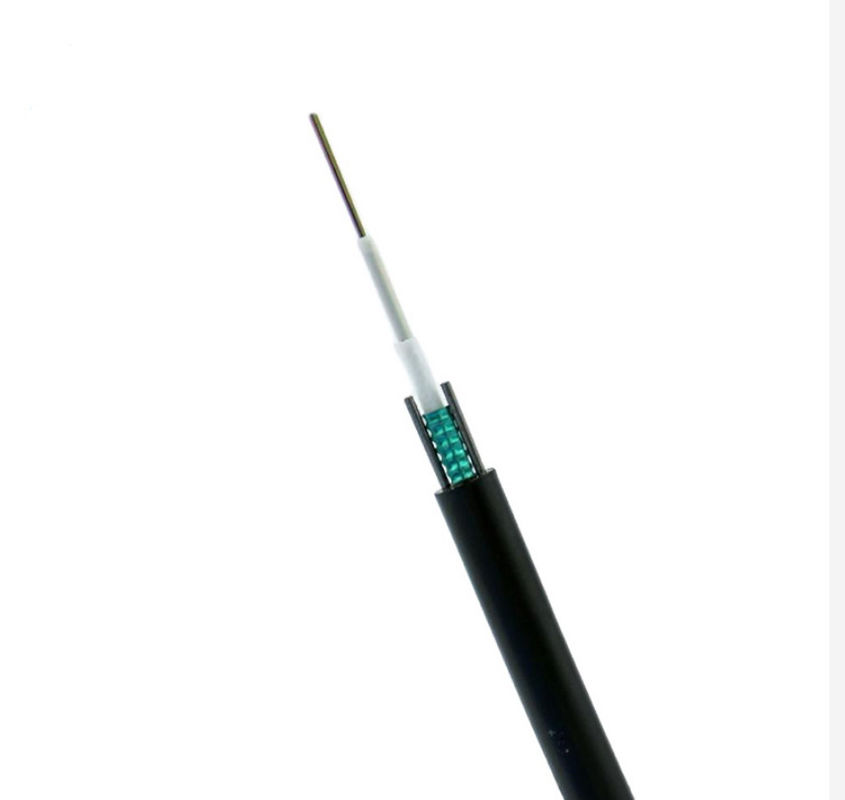

12 Core Central Tube Full Filling With The Parallel Steel Wire Steel-PE Outer Jacket Fiber Optic Cable GYXTW
GYXTW single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blockingperformance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound, 100% cable core filling
7. PSP/PAP enhancing moisture-proof
8. Steel wire used as the central strength member
|GYXTW||Outdoor,Metallic strength member,Central tube,Full filling,With the parallel steel wire, Steel-PE outer jacket||Overhead laying&Pipeline laying,rural cable|
|Tensile Strength (N)||Crush Resistance (N/100mm)||Bned Radius|
|Working Temperature(℃)||Max. attenuation (dB/km)||fibers||OD(mm)||weight kg/km|
|Long term||short term||Long term||short term||Static(D)||Dynamic (D)||Min.TA||Max.TB||1310μm||1550μm|
|600||1500||300||1000||10 D||20 D||-40℃||+60℃||≤0.36||≤0.22||2～24||8.5～10.5||65～95|
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
