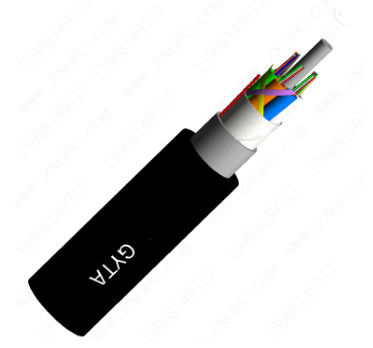

Layer Filling Loose Tube Outdoor Aerial Fiber Optic Cable 72 Strand GYTA
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||72 Core Layer Filling Loose Tube Aluminium PE Sheath Metallic Strength Member Outdoor Fiber Optic Cable GYTA||Fiber Count||72 Core|
|Fiber Type||G652D||Cable Sheath||Aluminium PE Sheath|
|Cable Color||Black||Strength Member||Metallic Strength Member|
|Cable Use||Outdoor||Loose Tube||PBT|
GYTA Fiber Optic Cable,
72strand Aerial Fiber Optic Cable,
Aerial 72 strand fiber optic cable

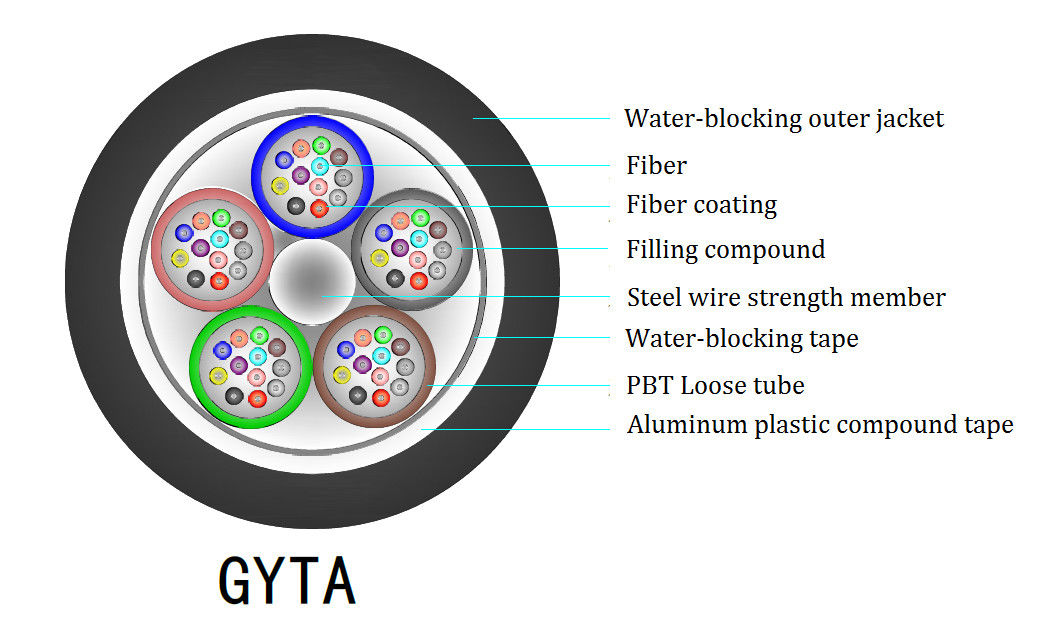

GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber
counts with the flexibility and versatility required for today's most demanding installations, including duct and
Multi-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced Platic (FRP) or steel wire.
Aluminum Tape Armor
Black UV Polyethylene(PE)
Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Aluminum tape armor to protect cable from mechanical damage.
UV and waterproof design.
Interbuilding voice or data communication backbone.
Installed in duct, underground conduit .
|GYTA||GYTA outdoor fiber optic cable,Metallic strength member,layer filling loose tube, Aluminium PE sheath||Overhead&Pipeline laying|
|Tensile Strength (N)||Crush Resistance (N/100mm)||Bned Radius
|Working Temperature(℃)||Max. attenuation (dB/km)|
|Long term||short term||Long term||short term||Static(D)||Dynamic (D)||Min.TA||Max.TB||1310μm||1550μm|
|600||1500||300||1000||10 D||20 D||-40℃||+60℃||≤0.36||≤0.22|
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
