GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable G652D For Communication

GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable G652D For Communication

GYTC8A Outdoor Fiber Optic Cable

G652D Outdoor Fiber Optic Cable

Figure 8 communication fiber optic cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYTC8A 72 Core

Contact Us

Request A Quote
Product Details
Product Name:
72 Core Figure-8 Aluminium-armored PE Sheath Communication Outdoor Fiber Optic Cable GYTC8A
Fiber Count:
72 Core
Fiber Type:
G652D
Cable Sheath:
Aluminum PE
Cable Color:
Blue Green Orange Brown
Strength Member:
Metallic Strength Member
Cable Use:
Aerial
OEM:
Supported
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

72 Core Figure-8 Aluminium-armored PE Sheath Communication Outdoor Fiber Optic Cable GYTC8A



Description:

In the GYTC8A cable, singlemode/multimode fibers are positioned in the loose tubes, while the loose tubes
strand together around metallic central strength member into a compact and circular cable core, and the water-blocking
materials are distributed into interstices of it. After a PSP/APL is applied around the cable core, this part of cable accompanied
with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

Characteristics:
Excellent mechanical and temperature performance
Critical protection to fibers,
The following measures are taken to ensure the
water blocking performance of the cable:
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube
- 100% cable core filling

Applications:
  • Suitable for direct buried and duct installation
  • Outside plant environments
Model Description Applications Tensile Strength (N) Crush Resistance (N/100mm)
Long term short term Long term short term
GYTC8A  72 Core Metallic strength member,Outdoor layer filling loose tube, fig.8 self-supporting,Aluminium-armored, PE sheath communication outdoor optical cable Self-supporting overhead laying 3000 8000 300 1000
Bned Radius
(mm)
Working Temperature(℃) Max. attenuation (dB/km) fibers OD(mm) weight kg/km
Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
10 D 20 D -40℃ +60℃ ≤0.36 ≤0.22 2~144 9.5~18.3 110~300





Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N

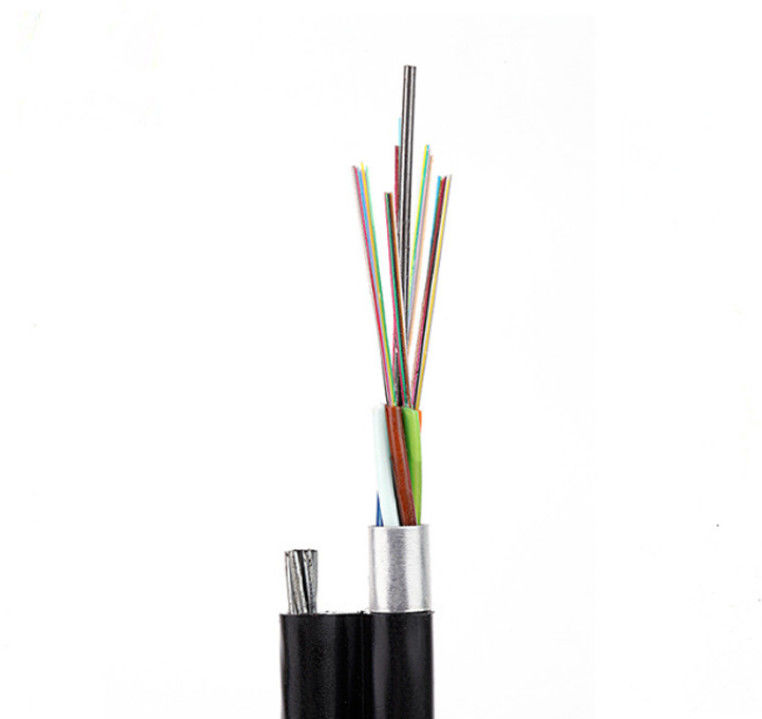

GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable G652D For Communication 0

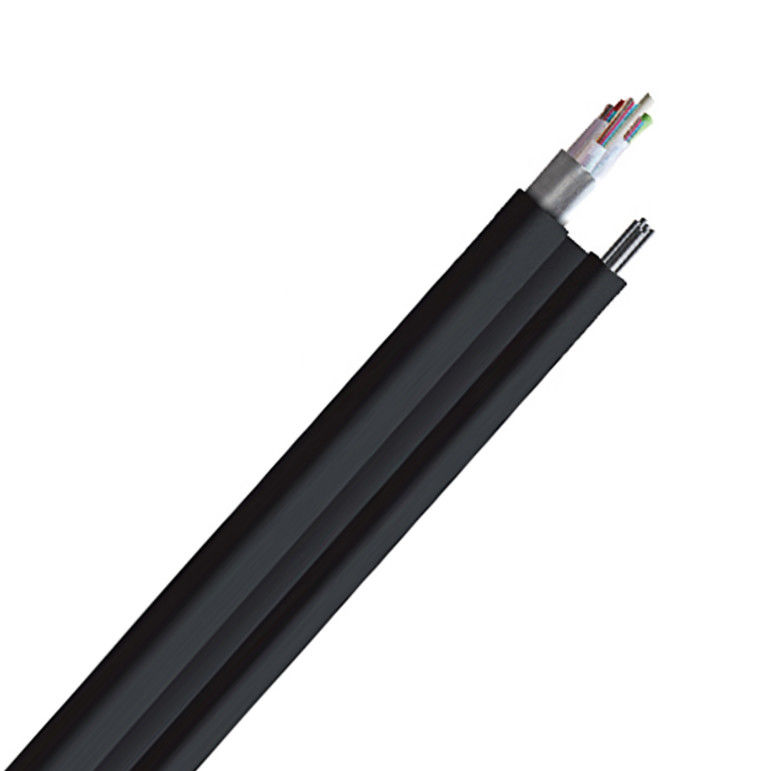

GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable G652D For Communication 1

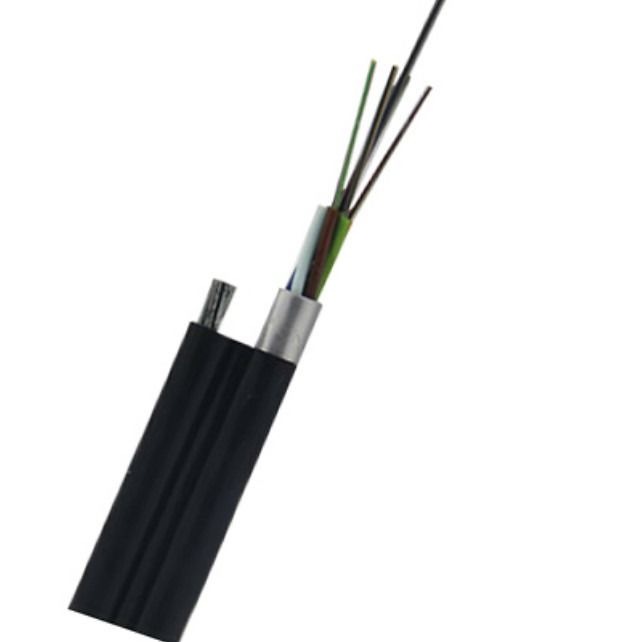

GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable G652D For Communication 2



GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable G652D For Communication 3
