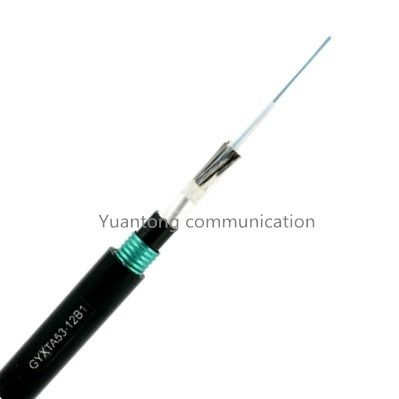

Gyxty53 Outdoor Corrugated Steel Tape Armored Anti Rodent Fiber Optic Cable
Product description

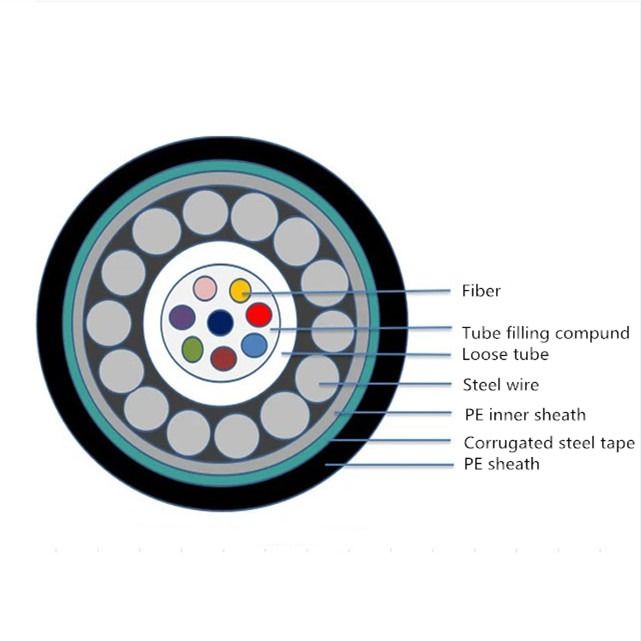

Single-mode/multimode Fibers are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. Steel wires is wrapped outside the loose tube. Then a PE inner sheath is extruded and armored with corrugated steel tape. Finally, a PE outer sheath is extruded.
Features
• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing the key protection for Fibers
• Excellent crush resistance and flexibility
• Small size and light weight, easy for installation
• Steel wire and steel tape armors providing excellent anti-rodent performance
• Applicable to duct, aerial and buried installations
Technical Characteristics
Type |
Fiber count |
Tube size |
Nominal |
Cable diameter |
Cable weight |
Tensile strength |
Crush Long/short term |
GYXTY53-2-12 Xn |
2-12 |
2.5 |
2.0 |
10.9 |
144 |
600/1500 |
1000/3000 |
GYXTY53-14-18Xn |
14-18 |
2.8 |
2.0 |
11.2 |
155 |
1000/3000 |
1000/3000 |
GYXTY53-20-24Xn |
20-24 |
3.2 |
2.0 |
11.6 |
167 |
1000/3000 |
1000/3000 |
GYXTY53-26-30Xn |
26-30 |
3.5 |
2.0 |
11.9 |
178 |
1000/3000 |
1000/3000 |
GYXTY53-32-36Xn |
32-36 |
3.8 |
2.0 |
12.2 |
186 |
1000/3000 |
1000/3000 |
Note:
1. Xn refers to fibre type. For details, see naming rules for optical cables of FCJ.
2. For color arrangement of fibres, see the color sequence.
Environmental Characteristics
• Transport/storage temperature: -40ºC - +70ºC
Delivery Length
• Standard length: 2,000m; other lengths are also available.
Company Indroduce:
Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.
Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, power optical fiber cable, submarine optical cable and special optical cable etc.
Yuantong has more than 200 staffs, of which 20% are senior engineers ,70% are mid-level empolyees.
Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmental management, health management and TLC.
A complete set of Advanced test equipments ensure each of the links from raw materials to perfect products is effectively controlled.
Also we have built a long-term strategic cooperative relationship with a number of domestic and oversea telecom operators. Products sold widely to America, Europe, Middle East, Africa, Southeast Asia, and other continents, annual sales reach$300 million, the production scale is in the forefront of the field.
Our company persist the quality policy "fast, efficient, high-quality" and the quality target
"be first in China, do best in the world", trying to make outstanding contribution for the whole world's communication development .
Certificate
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2.What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.
6.What is your delivery time?
Usually within 2-3 working days
7.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10.Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11.Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
