Place of Origin:
china
Brand Name:
YUANTONG
Certification:
ISO,ANATEL,ROSH,TLC,CCC
Model Number:
BV 2.5mm²
Contact Us

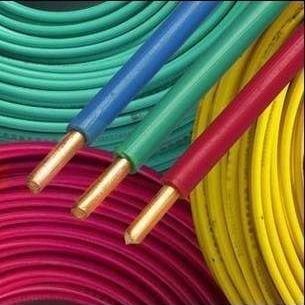

Bv 2.5mm² Pvc Efficient Insulation Construction Electric Copper Wire
Product Description
Product name | Wire |
Material | Copper+PVC |
Color | Yellow/red/blue/white/black |
Delivery | FOB/CIF/CFR/EXW |
Size | Custom |
OEM/ODM | Customization Service Provided |
APPLICATION:
These cables are intended for drawing into trunking and conduit and are suitable for use in electrical installations such as power, lighting, appliances and switchgear wiring
HARMONISED CODE:
0.75mm2 & 1.0mm2 solid conductor wire H05V-U
1.5mm2 & 2.5mm2 solid conductor wire H07V-U
1.5mm2 to 120mm2 stranded conductor wire H07V-R
CONSTRUCTION:
Reference: 6491X or 6491X HR*
Conductor: Solid / stranded plain copper class 1 or 2 to BS6360/IEC60228-1
Insulation: PVC Type TI 1 to BS7655 / *PVC Type TI 3 HR to BS7655
STANDARD COLOURS:
Red, Yellow, Blue, Black, Green, Yellow/Green, Brown, Grey Other colours available on request
PACKAGING:

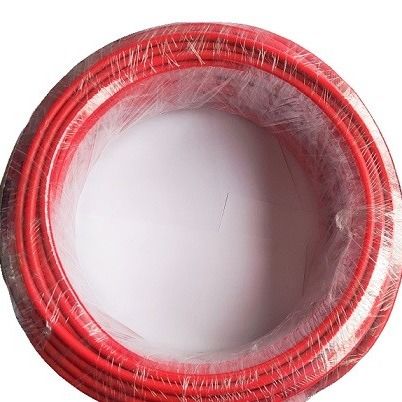

Sizes 0.75mm2 to 35mm2 in reels/coils of 100yards and 100m

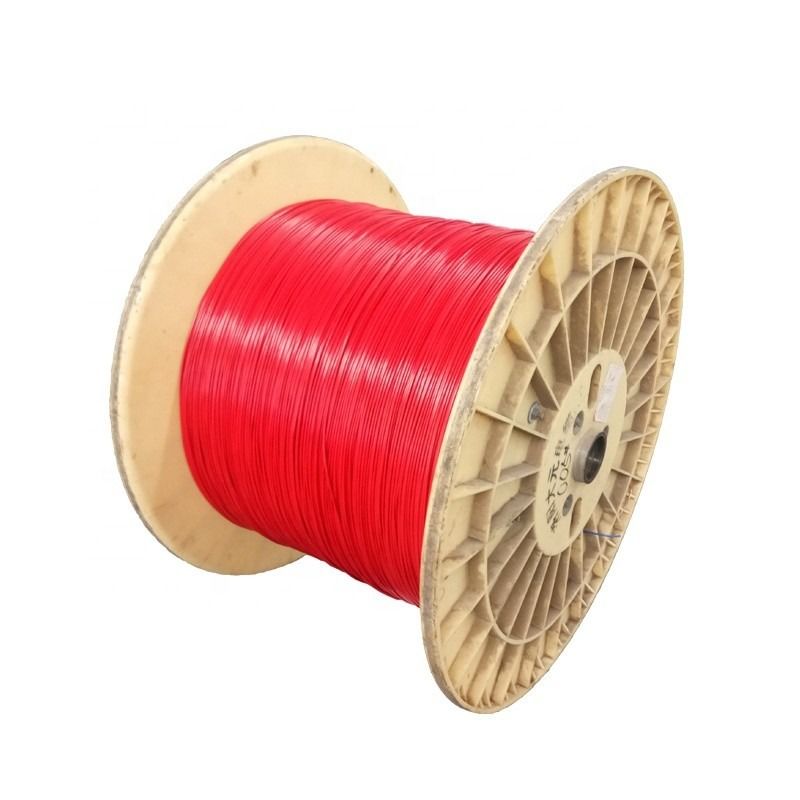

All sizes can be supplied in non-returnable wooden reels of 500m and 1000m
Customised lengths available on request
TECHNICAL DATA:
Max. Operating Temperature: 70OC / *105OC
Rated Voltage: 450/750V (300/500V for 0.75mm2 & 1.0mm2)
Standards: Generally to BS6004
Type | Conductor | Rated Voltage V | Number of Core | Nominal Cross Section of Conductor mm2 |
BV | copper | 300/500 | 1 | 0.75-1.0 |
BLV | aluminum | 450/750 | 1 | 2.5-400 |
BVR | copper | 450/750 | 1 | 2.5-185 |
BVV | copper | 300/500 | 1 | 0.75-185 |
BLVV | aluminum | 300/500 | 1 | 2.5-185 |
BVVB | copper | 300/500 | 2/3 | 0.75/10 |
BLVVB | aluminum | 300/500 | 2/3 | 2.5/10 |
