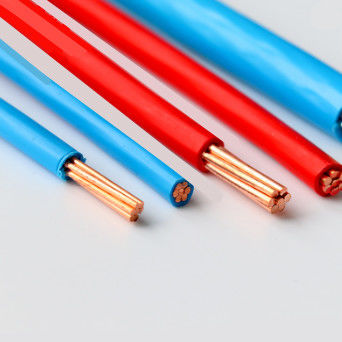

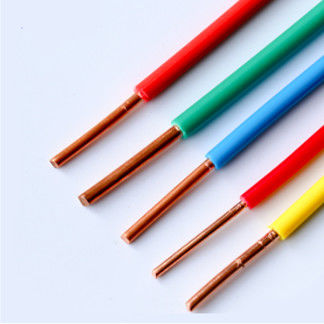

Rolled Copper Building Wire , Bv 4mm/6mm2 8 Gauge Stranded Wire

  • Rolled Copper Building Wire , Bv 4mm/6mm2 8 Gauge Stranded Wire
  • Rolled Copper Building Wire , Bv 4mm/6mm2 8 Gauge Stranded Wire
  • Rolled Copper Building Wire , Bv 4mm/6mm2 8 Gauge Stranded Wire
Place of Origin china
Brand Name YUANTONG
Certification ISO,ANATEL,ROSH,TLC，CCC
Model Number BV 4mm²
Minimum Order Quantity 50km
Price usd 0.28/m
Packaging Details rolls in carton box
Delivery Time within 7 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000km per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name BV 4mm² PVC Efficient Insulation Construction Electric Copper Wire Conductor Copper Core

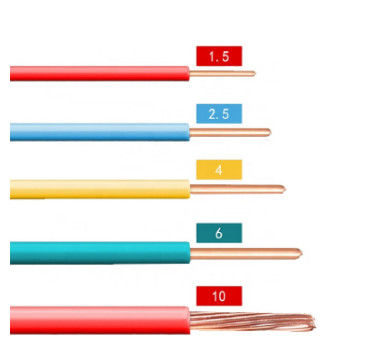

Cross Section 1.5/2.5/4/6/10 Sheath PVC
Color Yellow/red/black/blue Packing In Roll
Length 100m/roll Use Electric Appliance,LED Lighting.ect
High Light

8 gauge copper building wire

,

Bv 8 gauge stranded wire
Leave a Message
Product Description

Bv 4mm/6 mm² Pvc Efficient Insulation Construction Electric Copper Wire



Product Description

Product name Wire
Material Copper+PVC
Color Yellow/red/blue/white/black
Delivery FOB/CIF/CFR/EXW
Size Custom
OEM/ODM Customization Service Provided





APPLICATION:

These cables are intended for drawing into trunking and conduit and are suitable for use in electrical installations such as power, lighting, appliances and switchgear wiring



HARMONISED CODE:

0.75mm2 & 1.0mm2 solid conductor wire H05V-U

1.5mm2 & 2.5mm2 solid conductor wire H07V-U

1.5mm2 to 120mm2 stranded conductor wire H07V-R



CONSTRUCTION:

Reference: 6491X or 6491X HR*

Conductor: Solid / stranded plain copper class 1 or 2 to BS6360/IEC60228-1

Insulation: PVC Type TI 1 to BS7655 / *PVC Type TI 3 HR to BS7655



STANDARD COLOURS:

Red, Yellow, Blue, Black, Green, Yellow/Green, Brown, Grey Other colours available on request



PACKAGING:

Sizes 0.75mm2 to 35mm2 in reels/coils of 100yards and 100m

All sizes can be supplied in non-returnable wooden reels of 500m and 1000m

Customised lengths available on request



TECHNICAL DATA:

Max. Operating Temperature: 70OC / *105OC

Rated Voltage: 450/750V (300/500V for 0.75mm2 & 1.0mm2)

Standards: Generally to BS6004



Rolled Copper Building Wire , Bv 4mm/6mm2 8 Gauge Stranded Wire 0



Rolled Copper Building Wire , Bv 4mm/6mm2 8 Gauge Stranded Wire 1

Rolled Copper Building Wire , Bv 4mm/6mm2 8 Gauge Stranded Wire 2Rolled Copper Building Wire , Bv 4mm/6mm2 8 Gauge Stranded Wire 3

Rolled Copper Building Wire , Bv 4mm/6mm2 8 Gauge Stranded Wire 4
