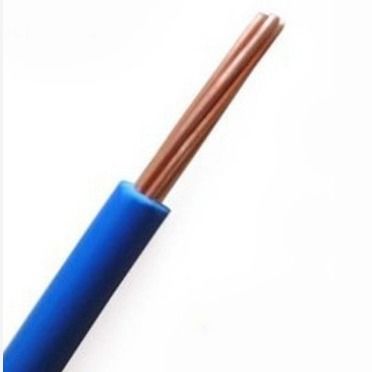

Blue Stranded Copper Wire , Bvr 10Mm2 Pvc Soft Bend Copper Wiring
| Place of Origin | china |
|---|---|
| Brand Name | YUANTONG |
| Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Model Number | BVR 10mm² |
| Minimum Order Quantity | 50km |
| Price | usd 0.28/m |
| Packaging Details | rolls in carton box |
| Delivery Time | within 7 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000km per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Bvr 10mm² Pvc Efficient Insulation Construction Electric Copper Wire | Conductor | Copper Core |
|---|---|---|---|

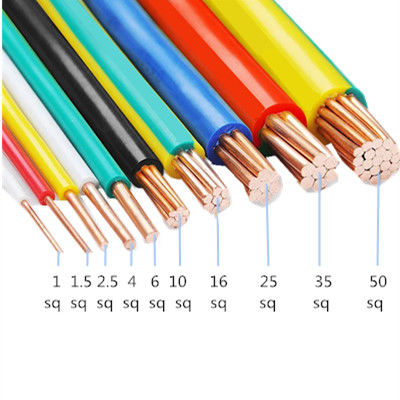

| Cross Section | 1.5/2.5/4/6/10 | Sheath | PVC |
| Color | Yellow/red/black/blue | Packing | In Roll |
| Length | 100m/roll | Use | Electric Appliance,LED Lighting.ect |
| High Light | Bvr copper wiring,10Mm2 stranded copper wire |
||
Product Description
Bvr 10 mm² Pvc Efficient Insulation Construction Electric Copper Wire
APPLICATION:
These cables are intended for drawing into trunking and conduit and are suitable for use in electrical installations such as power, lighting, appliances and switchgear wiring
HARMONISED CODE:
0.75mm2 & 1.0mm2 solid conductor wire H05V-U
1.5mm2 & 2.5mm2 solid conductor wire H07V-U
1.5mm2 to 120mm2 stranded conductor wire H07V-R
CONSTRUCTION:
Reference: 6491X or 6491X HR
Conductor: Solid / stranded plain copper class 1 or 2 to BS6360/IEC60228-1
Insulation: PVC Type TI 1 to BS7655 / *PVC Type TI 3 HR to BS7655
STANDARD COLOURS:
Red, Yellow, Blue, Black, Green, Yellow/Green, Brown, Grey Other colours available on request
PACKAGING:
Sizes 0.75mm2 to 35mm2 in reels/coils of 100yards and 100m
All sizes can be supplied in non-returnable wooden reels of 500m and 1000m
Customised lengths available on request
TECHNICAL DATA:
Max. Operating Temperature: 70OC / *105OC
Rated Voltage: 450/750V (300/500V for 0.75mm2 & 1.0mm2)
Standards: Generally to BS6004
|
item
|
value
|
|
Place of Origin
|
Henan,China
|
|
Brand Name
|
YDXL
|
|
Model Number
|
Electric wire
|
|
Type
|
insulated
|
|
Application
|
Overhead/building/household
|
|
Conductor Material
|
Copper/Aluminum
|
|
Conductor Type
|
Solid/stranded
|
|
Insulation Material
|
PVC/PE/Plastic
|
|
Color
|
Black/blue/red/yellow/white/green etc
|
|
Product name
|
BVR
|
|
Certification
|
CCC/ISO90001/ISO14001/OHSAS18001
|
|
Keyword
|
wire cable
|
|
MOQ
|
100 meter
|
|
Voltage
|
300/500V
|
|
Usage
|
Overhead/house/building
|
|
Rated Temperature
|
105C
|
|
Packaging
|
100m/Roll
|
|
Trade term
|
EXW/FOB/CIF
|
