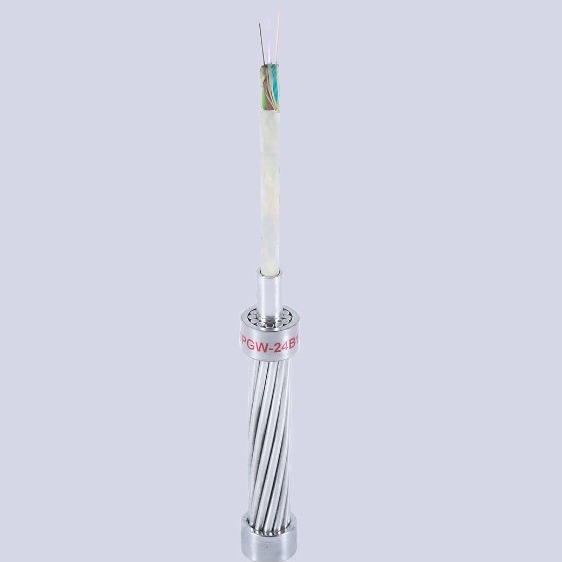

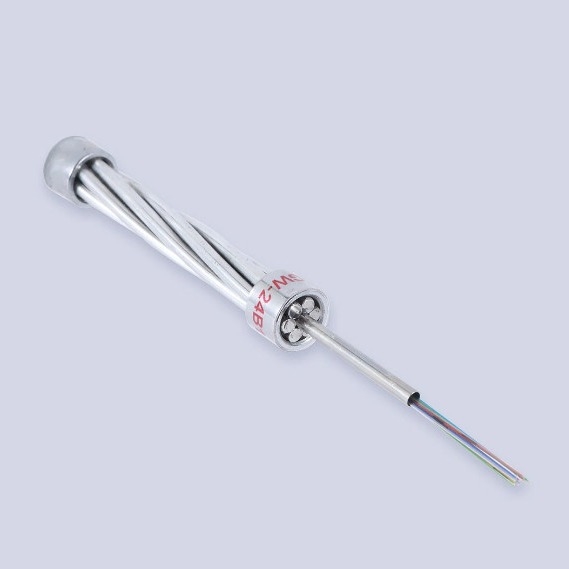

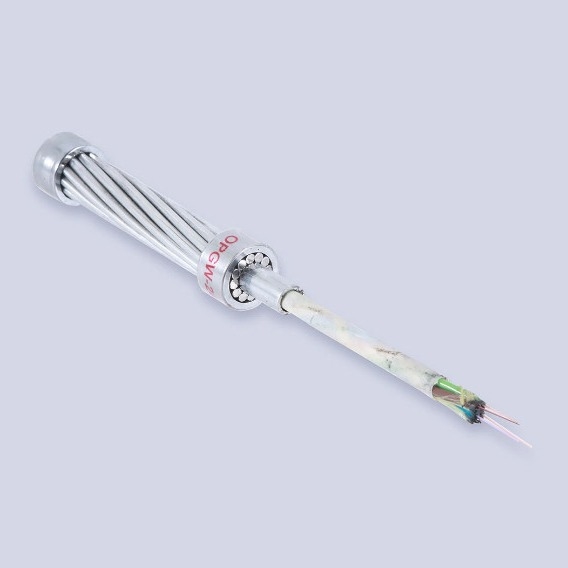

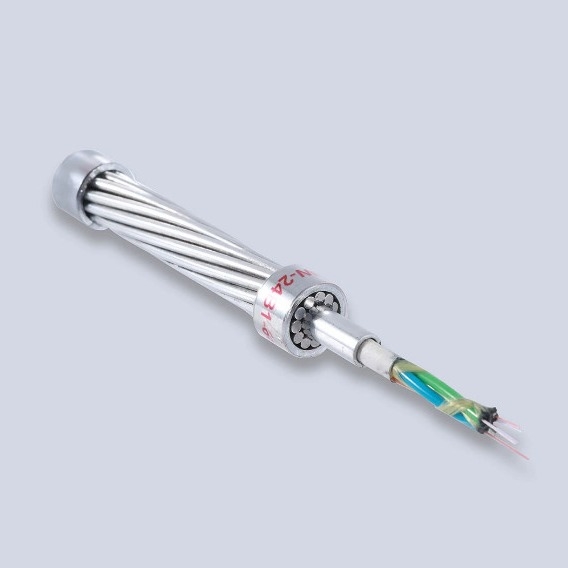

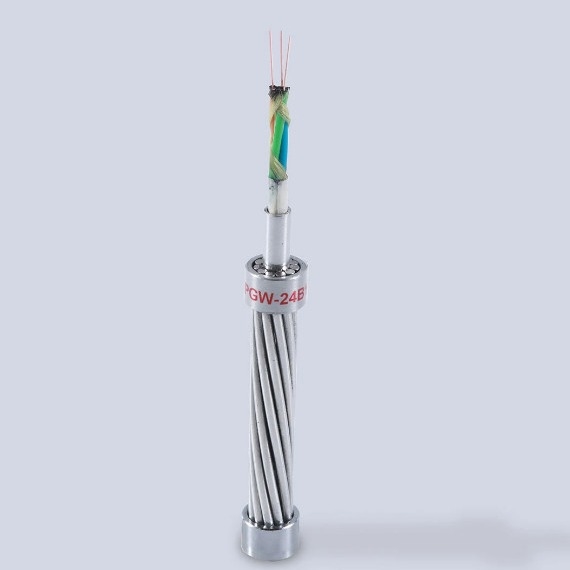

G652D Opgw Fiber Optic Cables YTTX 48 Core

  • G652D Opgw Fiber Optic Cables YTTX 48 Core
  • G652D Opgw Fiber Optic Cables YTTX 48 Core
  • G652D Opgw Fiber Optic Cables YTTX 48 Core
  • G652D Opgw Fiber Optic Cables YTTX 48 Core
  • G652D Opgw Fiber Optic Cables YTTX 48 Core
  • G652D Opgw Fiber Optic Cables YTTX 48 Core
Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number Opgw
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Core Number 24/48/According To Customer Product 48 Core G652D Opgw Fiber Optic Cable
Standard IEEE1138 Transport Package Wooden Package
Specification Customized Trademark Reliable
Certification ETL, UL, CCC, RoHS, Ce, HS Code 8544700000
Customization Available Origin China ChengDu
High Light

G652D Opgw Fiber Optic Cables

,

48 Core Opgw Fiber Optic Cables

,

ETL Opgw Fiber Cable
Leave a Message
Product Description
YTTX 48 Core G652D Opgw Fiber Optic Cables High Quality
Product Description

Application
OPGW is mainly applied in communication line of newly constructed high voltage transmit electricity system with 35 KV or above, or replacement of existing ground wire of previous overhead high voltage transmit electricity system, adding of communication lines and conduction of short-circuit current or provision of anti-lightning protection.

Feature

  1. Diameter of the cable is small with a low additional load to the pole and tower.
  2. Design of stainless steel tube is reasonable and excess lengths of the fiber is correct.
  3. Stainless steel tube protects the fiber with powerful tensile strength.
  4. Optical unit of the stainless steel tube is the interlayer of the cable and it can resist twist and has good lateral pressure performance.
  5. With good safety performance and strong shooting resistance performance, not easy to be stolen
  6. Different armor combinations or meeting different combinations of electrical and mechanical property.

Section diagram:
OPGW cable has two constructions:
Central loose tube type---The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. This tube provides protection to the fiber during installation and operation under severe environmental conditions. Aluminium layer over the tube is optional. The stainless optical tube is located at the center of the cable protected by single or multiple layers of aluminium clad steel and aluminium annoy wires. The aluminium clad steel wires are shaped trapezoidally around the optical unit to provide compact construction. The metallic wires provide mechanical strength to withstand severe installation and operating conditions, while achieving conductivity to control temperature rise during short circuit conditions.
This type can accommodate up to 48 fibers in a cable. Despite such a high fiber count in a single tube, each optical fiber is clearly distinguishable utilizing a fiber identification system consisting of coloring and the number of ring marks on it. This compact design features high mechanical strength and fault current rating within a smaller diameter. The smaller diameter also results in excellent sag tension performance.
Multi loose tube type--- The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. Two or three stainless steel optical tubes are helically stranded in the inner layer of a multiple-layer cable.
The multi loose tube type is designed mostly for very high fiber count requirement over 48 with the maximum fiber count reaching 144. The multi loose tube type can meet the requirement of huge cross and large current capacity.



Standard

IEEE 113


Packing:

Wooden drum or Iron wooden drum



Technical Parameter


Central loose tube type

Model Structure(No.of wires*diameter/conductivity) Cross section Diameter Unit weight Rated breaking force DC resistance Short circuit current capacity
Central optical unit Outer layer Aluminum clad steel wire Total
mm2 mm2 mm Kg/km KN Ω/km KA2S
OPGW-24B1-42[54;8.4] 1x3.0/24B1 6x3.0/20AS 42.41 42 9 309 54 2.03 8.4
OPGW-24B1-42[43.5;10.6] 6x3.0/27AS 42.41 42 9 281 43.5 1.53 10.6
OPGW-24B1-42[35.5;11.5] 6x3.0/30AS 42.41 42 9 268 35.5 1.37 11.5
OPGW-30B1-48[61.4;10.9] 1x3.2/30B1 6x3.0/20AS 48.25 48 9.6 348 61.4 1.78 10.9
OPGW-30B1-48[49.5;13.7] 6x3.0/27AS 48.25 45 9.6 315 49.5 1.34 13.7
OPGW-30B1-48[40.3;14.9] 6x3.0/30AS 48.25 48 9.6 3.1 40.3 1.21 14.9
OPGW-30B1-51[63.9;12.3] 1x3.3/30B1 6x3.3/20AS 51.32 51 9.9 368 63.9 1.68 12.3
OPGW-30B1-51[52.7;15.5] 6x3.3/27AS 51.32 51 9.9 333 52.7 1.26 15.5
OPGW-30B1-51[42.9;16.8] 6x3.3/30AS 51.32 51 9.9 318 42.9 1.14 16.8
OPGW-30B1-51[33.2;20.8] 6x3.3/40AS 51.32 51 9.9 268 33.2 0.85 20.8
OPGW-36B1-54[67.8;13.9] 1x3.4/36B1 6x3.4/20AS 54.48 54 10.2 389 67.8 1.58 13.9
OPGW-36B1-54[55.9;17.5] 6x3.4/27AS 54.48 54 10.2 352 55.9 1.19 17.5
OPGW-36B1-54[45.5;19] 6x3.4/30AS 54.48 54 10.2 336 45.5 1.07 19
OPGW-36B1-54[35.2;23.4] 6x3.4/40AS 54.48 54 10.2 283 35.2 0.8 23.4
OPGW-40B1-58[69.6;15.6] 1x3.5/40B1 6x3.5/20AS 57.73 58 10.5 410 69.6 1.49 15.6
OPGW-40B1-58[59.2;19.6] 6x3.5/27AS 57.73 58 10.5 371 59.2 1.12 19.6
OPGW-40B1-58[48.3;21.3] 6x3.5/30AS 57.73 58 10.5 354 48.3 1.01 21.3
OPGW-40B1-58[37.3;26.3] 6x3.5/40AS 57.73 58 10.5 298 37.3 0.76 26.3
OPGW-48B1-61[73.7;17.5] 1x3.6/48B1 6x3.6/20AS 61.07 61 10.8 432 73.7 1.41 17.5
OPGW-48B1-61[62.7;22] 6x3.6/27AS 61.07 61 10.8 391 62.7 1.06 22
OPGW-48B1-61[51.1;23.8] 6x3.6/30AS 61.07 61 10.8 373 51.1 0.95 23.8
OPGW-48B1-61[39.5;29.5] 6x3.6/40AS 61.07 61 10.8 313 39.5 0.72 29.5
OPGW-50B1-65[76.6;19.5] 1x3.7/50B1 6x3.7/20AS 64.51 65 11.1 455 76.6 1.33 19.5
OPGW-50B1-65[66.2;24.5] 6x3.7/27AS 64.51 65 11.1 411 66.2 1 24.5
OPGW-50B1-65[53.9;26.6] 6x3.7/30AS 64.51 65 11.1 392 53.9 0.9 26.6
OPGW-50B1-65[41.7;32.9] 6x3.7/40AS 64.51 65 11.1 329 41.7 0.68 32.9
OPGW-54B1-68[80.8;21.7] 1x3.8/54B1 6x3.8/20AS 68.05 68 11.4 478 80.8 1.26 21.7
OPGW-54B1-68[69.8;27.3] 6x3.8/27AS 68.05 68 11.4 432 69.8 0.95 27.3
OPGW-54B1-68[56.9;29.6] 6x3.8/30AS 68.05 68 11.4 412 56.9 0.86 29.6
OPGW-54B1-68[44;36.6] 6x3.8/40AS 68.05 68 11.4 346 44 0.64 36.6
OPGW-60B1-75[86.7;26.6] 1x4.0/60B1 6x4.0/20AS 75.4 75 12 527 86.7 1.14 26.6
OPGW-60B1-75[77.4;33.5] 6x4.0/27AS 75.4 75 12 476 77.4 0.86 33.5
OPGW-60B1-75[63;36.3] 6x4.0/30AS 75.4 75 12 453 63 0.77 36.3
OPGW-60B1-75[48.7;44.9] 6x4.0/40AS 75.4 75 12 380 48.7 0.58 44.9




FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
