YTTX GYXTC8S Steel Stranded 12 Core Fiber Optic Cable Figure 8 Aerial Armored
| Place of Origin | China |
|---|---|
| Brand Name | YUANTONG |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GYXTC8S |
| Minimum Order Quantity | 20KM |
| Price | Negotiable |
| Packaging Details | Wooden Drum |
| Delivery Time | 7 days |
| Payment Terms | L/C, T/T, Western Union, D/P |
| Supply Ability | 500km per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | Aerial Figure 8 Fiber Optic Cable | Number Of Conductors | 12 |
|---|---|---|---|
| Strength Member | Steel Wire/FRP | Outsheath | PVC/LSZH/PE/HDPE |
| Service | OEM&ODM | Fiber Type | Single Mode/Multimode |
| Storage/Operation | -40°C To + 70°C | Jacket Color | Black |
| Loose Tube | Gel-Filled | Brand Name | YTTX Or OEM |
| High Light | Armored 12Core Fiber Optic Cable,GYXTC8S Fiber Optic Cable,YTTX Figure 8 Fiber Optic Cable |
||
Product Description

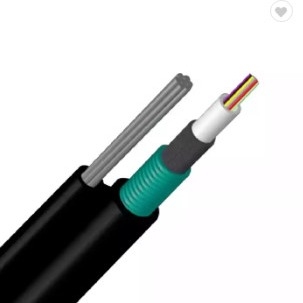

YTTX GYXTC8S Outdoor Steel Stranded Figure 8 Aerial Armored 12 Core Fiber Optic Cable

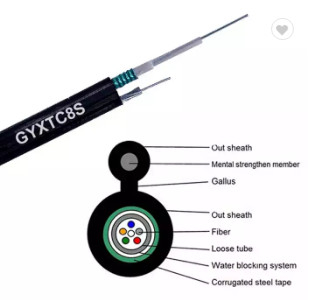

In the GYTC8S/GYTC8A cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
Characteristics
1. Loose tube design. Up to 288 fibers.
2. Water blocking, UV resistance, High and low temperature resistance.
3. The corrugated steel tape (CST) armor provide desirable crush resistant.
4. Adopt strict process and raw materials control guarantees the lifespan more than 30 years.
5.Good mechanical and temperature performance.
6.High strength loose tube that is hydrolysis resistant.
7.Special tube filling compound ensure a critical protection of fiber.
Features:
1.low dispersion and attenuation.
2.Proper design, precise control for fiber excess length.
3.distinct stranding process render the cable excellent.
4.mechanical and environmental characteristics.
5.Anti-electromagnetism ability.
6.Small cable diameter, light cable weight, self-supporting,
7.easily installation.
Application:
1. Adopted to aerial self-supporting installation.
2. Access network and local network in high electromagnetic interfering places.
3. Long distance and local area network communication.
Standards:
Comply with Standard YD/T 1155-2001 as well as IEC60794-1.
Tempeature:
Operating /Storage:-40°c +70°c
| Fiber | Cable Diameter (mm) | Cable Net Weight | Min. Bending Radius (mm) | Min. Tensile Strength (N) | Min. Crush Pressure (N/100mm) | |||
| Cores | (Kg/km) | Static State | Dynamic State | Short Term | Long Term | Short Term | Long Term | |
| 2-12 | 7.6x14.5 | 120 | 120 | 240 | 3000 | 1000 | 1000 | 300 |
| 16-24 | 8.2x15.1 | 130 | 130 | 260 | 3000 | 1000 | 1000 | 300 |
| Operating Temperature | -40 - +70Degrees | |||||||
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
