YTTX ASU Mini ADSS Armoured Fibre Optic Cable G652D
| Place of Origin | China |
|---|---|
| Brand Name | YUANTONG |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | ASU cable |
| Minimum Order Quantity | 20KM |
| Price | Negotiable |
| Packaging Details | Wooden Drum |
| Delivery Time | 7 days |
| Payment Terms | L/C, T/T, Western Union, D/P |
| Supply Ability | 500km per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO | ASU，Mini ADSS | Type | Fiber Optic Cable |
|---|---|---|---|
| Place Of Origin | Sichuan, China | Cable Structure | Multi-Loose Tube |
| Strength Member | Non-metallic Strength Member | Fiber Type | G652D |
| Application | Ovearhead/aerial | JACKET | HDPE, MDPE, LSZH,PE |
| Fiber Range | 4-288core | Package1000 Kilometer/Kilometers Per Month | Plywooden Drum |
| High Light | ASU Armoured Fibre Optic Cable,YTTX Armoured Fibre Optic Cable,YTTX G652D Fiber Optic Cable |
||
Product Description

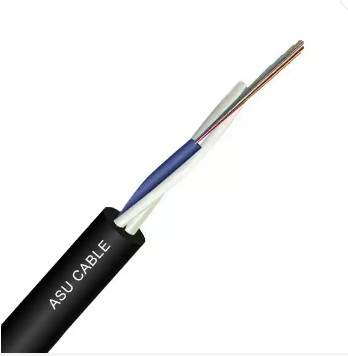

YTTX ASU cable de fibra optica mini ADSS G652D optical fiber cable
Description

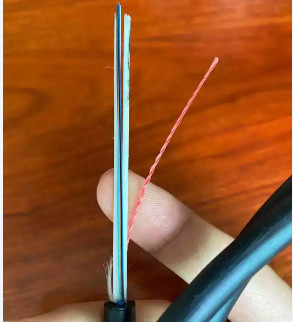

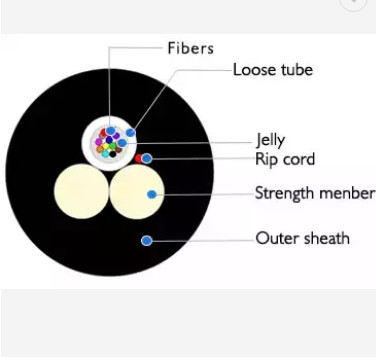

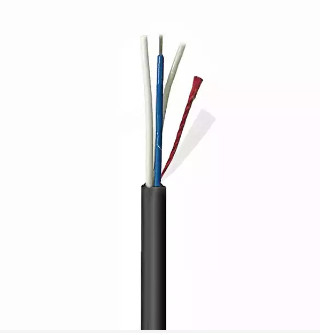

The ASU cable is a loose bushing strand. The 250um fiber is placed in a loose sleeve made of high modulus plastic. Two FRPS (fiber reinforced plastic) are used as reinforcement members. Cable surface using HDPE(polyethylene) sheath extrusion molding.
Characteristics
Good mechanical and temperature performance.
High strength loose casing, resistant to hydrolysis.
Special tube packing ensures critical fiber protection.
Stress resistance and flexibility.
Two parallel FRP bars ensure tensile strength
Small diameter, light weight, easy to install
Long delivery length
Application :Ovearhead/Antenna
Specification
|
Item
|
Unit
|
Specification
|
||
|
Fiber Type
|
|
G652D
|
||
|
Mode field diameter
|
1310nm
|
μm
|
9.2±0.4
|
|
|
1550nm
|
μm
|
10.4±0.8
|
||
|
Cladding diameter
|
μm
|
125.0±1
|
||
|
Cladding non-circularity
|
％
|
≤1.0
|
||
|
Core/cladding concentricity error
|
μm
|
≤0.5
|
||
|
Coating diameter
|
μm
|
245±7
|
||
|
Coating/cladding concentricity error
|
μm
|
≤12
|
||
|
Cable cut-off wavelength
|
μm
|
≤1260
|
||
|
Attenuation Coefficient
|
1310nm
|
dB/KM
|
≤0.36
|
|
|
1550nm
|
dB/KM
|
≤0.22
|
||
|
Proof stress level
|
kpsi
|
≥100
|
||
|
Note: Other parameters meet standard ITU-T G.652
|
||||
Technical Parameters
|
Fiber Count
|
Cable Diameter (mm)
|
Cable Weight (kg/km)
|
Tension Strength (N) (Long/Short Term)
|
Crush Load (N/100mm) (Long/Short Term)
|
Bending Radius (Static/Dynamic)
|
|
2
|
7.0
|
38
|
1000/2000
|
300/1000
|
10D/20D
|
|
4
|
7.0
|
38
|
1000/2000
|
300/1000
|
10D/20D
|
|
6
|
7.0
|
38
|
1000/2000
|
300/1000
|
10D/20D
|
|
8
|
7.0
|
38
|
1000/2000
|
300/1000
|
10D/20D
|
|
10
|
7.0
|
38
|
1000/2000
|
300/1000
|
10D/20D
|
|
12
|
7.0
|
38
|
1000/2000
|
300/1000
|
10D/20D
|
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
