YTTX ASU Mini ADSS G652D Fiber Optic Cable 12 Core Self Supporting

YTTX ASU Mini ADSS G652D Fiber Optic Cable 12 Core Self Supporting

ADSS G652D Fiber Optic Cable

YTTX G652D Fiber Optic Cable

12Core Self Supporting Aerial Cable

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Model NO:
Fiber Optic Cable
Place Of Origin:
Sichuan, China
Cable Structure:
Uni-Loose Tube Non Armor
Fiber Type:
G657A1, G657A2, G652D
Black Polyethylene (PE)
Fiber Range:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, T/T, Western Union, D/P
Supply Ability
500km per week
Product Description
YTTX ASU Cable De Fibra Optica Mini ADSS G652D Fiber Cable 12 Core Self Supporting Fiber Optic Cable
Product Description

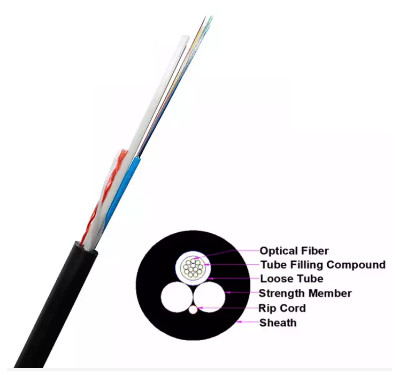

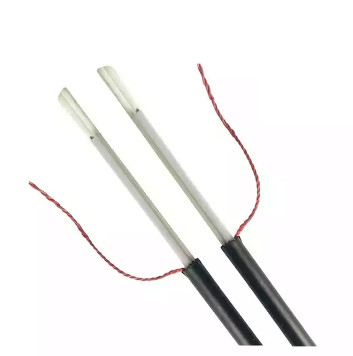

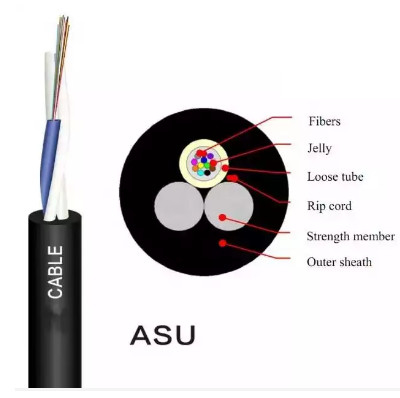

The ASU cable is a loose bushing strand. The 250um fiber is placed in a loose sleeve made of high modulus plastic. Two FRPS (fiber reinforced The 250μm color fiber was placed into the PBT loose sleeve, two fiberglass reinforced elements were used as reinforcement components, and the cable surface was extruded with PE outer sheath. Small size, light weight, double reinforced glass fiber reinforced, good tensile properties. Filled or unfilled gel, good water resistance, low price, large fiber capacity, suitable for short span antenna and pipe installation
Number of optical fibers (X): 1 to 12
Range options (Y): 80 and 120
Coil :1km / 2km / 3km / 4km


1. Good mechanical and temperature performance
2. High strength casing, hydrolysis resistant
3. Special tube packing ensures critical fiber protection
4. Stress resistance and flexibility
5. Loose tube packing
6.100% Cable core filling

Number of fiber
1-12 core
Fiber Type
SM G652D
Loose Tube
Water Blocking System
Filling gel
Strength member
TWO FRP(2*2mm)
Out sheath

YTTX ASU Mini ADSS G652D Fiber Optic Cable 12 Core Self Supporting 0


YTTX ASU Mini ADSS G652D Fiber Optic Cable 12 Core Self Supporting 1



YTTX ASU Mini ADSS G652D Fiber Optic Cable 12 Core Self Supporting 2


1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
