Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ISO,ANATEL,ROSH,TLC,CCC
Model Number:
GJXH/GHXFH
Contact Us

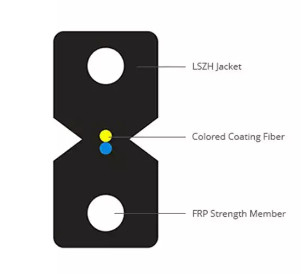

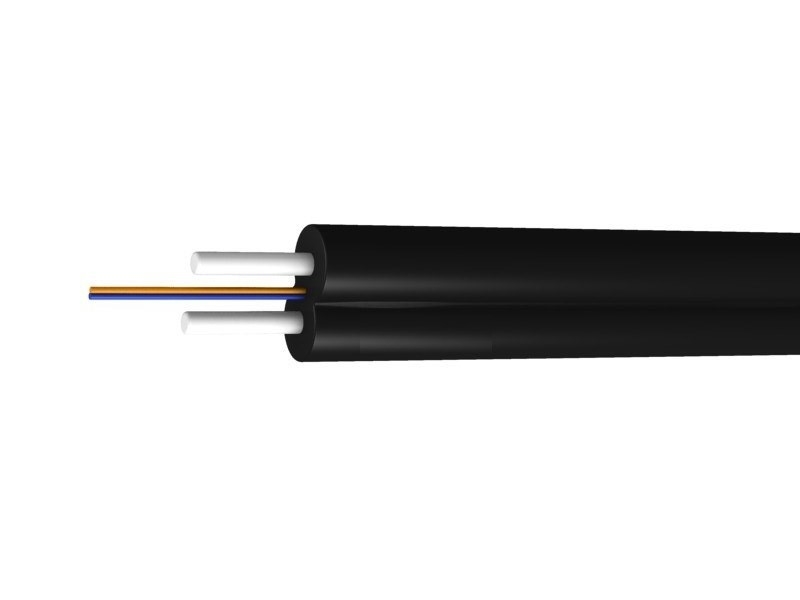

The FTTH Drop Fiber Cable is also called butterfly optical cable because it looks like a butterfly in cross section. It has the advantages of small outer diameter, light weight, low cost, reliable performance, and easy installation. It is the leading product for fiber optic cable in the construction of FTTH network. With the continuous advancement of FTTH construction, the demand for butterfly optical cables has also increased year after year, home digitalization will further develop, and butterfly optical cables will also be more widely used.
Application
Technical Parameter
| Fiber Count | Outer Dia.(mm) | Tensile Resistance(N) | Crush Resistance(N/100m) | Min Bending Radius(mm) | Attenuation(dB/Km) | Operation Temperature(℃) | N.W(kg/km) | ||||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | 1310nm | 1550nm | ||||
| GJXH-1 GJXH-2 | 2.0x3.0 | 60 | 120 | 1000 | 2200 | 40 | 20 | ≤0.4 | ≤0.3 | -40℃~+60℃ | 10 |
| GJXH-4 | 2.0x3.0 | 60 | 120 | 1000 | 2200 | 40 | 20 | ≤0.4 | ≤0.3 | 40℃~+60℃ | 10.5 |
| GJXFH-1 GJXFH-2 | 2.0x3.0 | 40 | 80 | 500 | 1000 | 40 | 20 | ≤0.4 | ≤0.3 | 40℃~+60℃ | 8.5 |
| GJXFH-4 | 2.0x3.0 | 40 | 80 | 500 | 1000 | 40 | 20 | ≤0.4 | ≤0.3 | 40℃~+60℃ | 9 |
