YTTX GYTC8A/GYTC8S 6 12 24 36 42 48 72 144 Core aerial figure 8 fiber optic cable

YTTX GYTC8A/GYTC8S 6 12 24 36 42 48 72 144 Core aerial figure 8 fiber optic cable

12 Core fiber optic cable

48 Core fiber optic cable

36 Core fiber optic cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ISO,ANATEL,ROSH,TLC,CCC

Model Number:

GYTC8A/GYTC8S

Contact Us

Request A Quote
Product Details
Core:
6-144
Other Name:
Figure 8 Fiber Optic Cable
Strength Member:
Steel Wire
Jacket:
PE/LSZH/PVC
Color:
Black/customization
Installation:
Aerial
Self Support:
With Steel Messenger Self Support
Max Bending Radius:
20D
Life Time:
25 Years
Payment & Shipping Terms
Minimum Order Quantity
10km
Price
negotiated
Packaging Details
wooden drum plus carton box
Delivery Time
within 7 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000km per week
Product Description

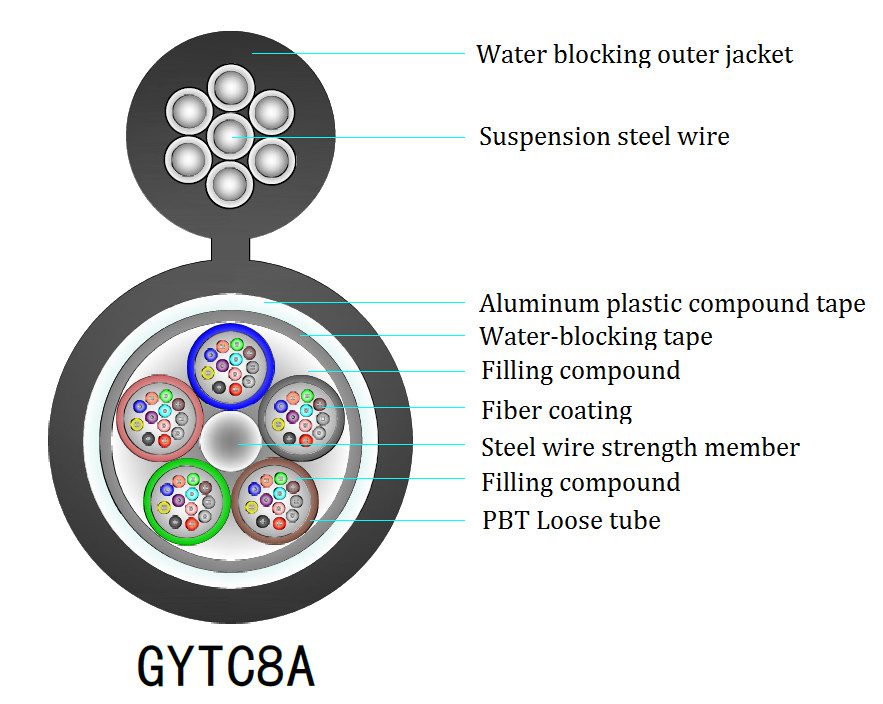

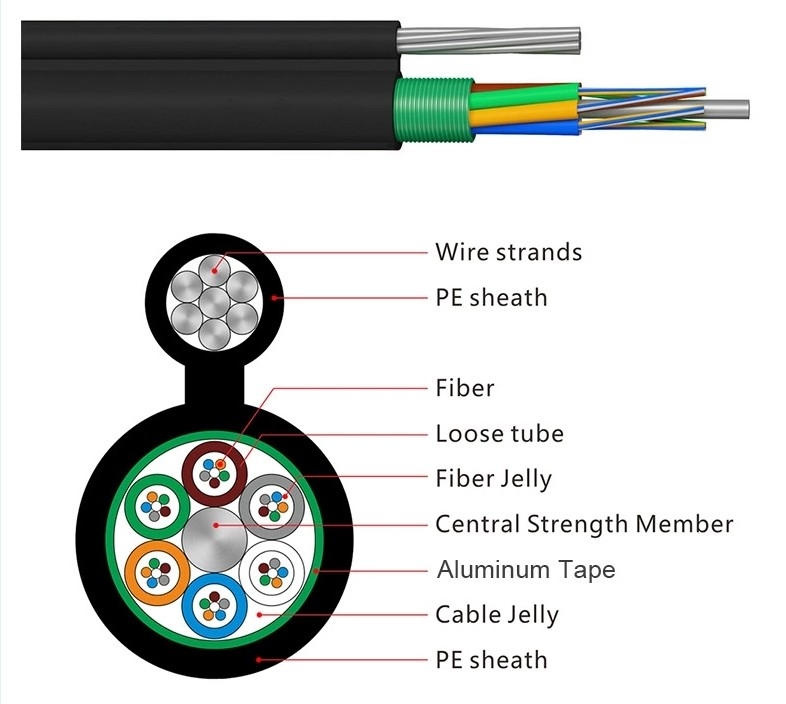

The structure of the GYTC8A optical cable is to insert a optical fiber into a loose tube made of high modulus material, and the loose tube is filled with a waterproof compound. The center of the cable core is a metal reinforcing core, around which loose tubes are twisted into a compact and round cable core. The cable core is longitudinally wrapped with a layer of plastic-coated aluminum tape, and the steel wire strands are integrated into an 8-shaped polyethylene sheath.

  • “8” Shape Optical Cable
  • Loose Tube Type and Stranded With Jelly FillingP
  • Polyethylene Sheathed Outdoor Communication Cable

Application

  • Adopted To Aerial Self-Supporting Installation
  • Access Network And Local Network In High Electromagnetic interfering Places
  • Long Distance And Local Area Network Communication

Technical Parameter

Fiber Count N.W(kg/km) Cable Diameter Tensile Resistance/N Crush
Resistamce/(N/100m)
mm Long term Short term Long term Short term
6 170 5.6+9.2/16.8 3000 8000 3000 1000
12 170 5.6+9.2/16.8 3000 8000 3000 1000
24 170 5.6+9.2/16.8 3000 8000 3000 1000
36 190 5.6+9.7/17.3 3000 8000 3000 1000
42 210 5.6+11/18.6 3000 8000 3000 1000
48 210 5.6+11/18.6 3000 8000 3000 1000
72 250 5.6+11.8/19.4 3000 8000 3000 1000
144 370 5.6+16.8/24.4 3000 8000 3000 1000


Company Profile
Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, poweroptical fiber cable, submarine optical cable and special optical cable etc.Yuantong has more than 200 staffs, of which 20% are senior engineers ,30% are mid-level employees.

Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmentalmanagement, health management and TLC.
