Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ISO,ANATEL,ROSH,TLC,CCC
Model Number:
ADSS-SJ
Contact Us

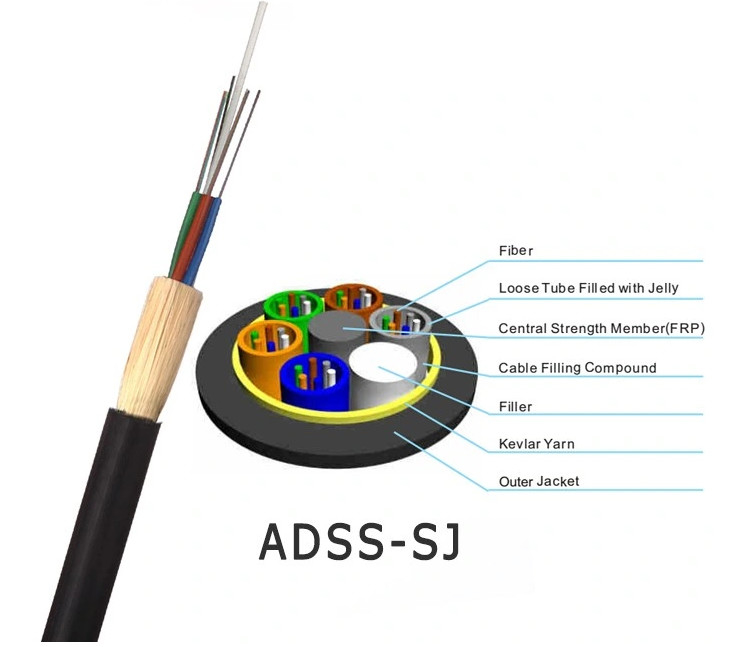

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes are stranded around the non-metallic strength member to form the cable core. The cable core is filled with water blocking compound and PE inner jacket is extruded. Then the aramid yarn armored around the inner jacket to reinforce . Finally, PE or AT outer jacket is completed.
The difference, however, is that the Single Sheath ADSS has no inner sheath.
Application
Technical Parameter
| Fiber Count | Outer Dia.(mm) | RST(KN) | MAT(KN) | Allow the flat force (N/100m) |
Mini Bending Radius(mm) |
Attenuation (db/KM) |
Operation Temperature(℃) |
N.W(kg/km) | |||
| Long Term | Short Term | Static | Dynamic | 1310nm | 1550nm | ||||||
| 2-36 | 10.5 | 7.5 | 3 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+70 | 85 |
| 38-46 | 10.9 | 7.5 | 3 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+70 | 92 |
| 48-72 | 12.3 | 7.5 | 3 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+70 | 117 |
| 74-96 | 14 | 7.5 | 3 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+70 | 149 |
| 98-120 | 15.6 | 7.5 | 3 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+70 | 183 |
| 122-144 | 17.1 | 7.5 | 3 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40~+70 | 220 |
Company Profile
Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, poweroptical fiber cable, submarine optical cable and special optical cable etc.
Certificates
Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmentalmanagement, health management and TLC.
